800nm~1700nm 200μm InGaAs M=30 Avalanche 포토다이오드 TO-46 Package

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


800nm~1700nm 200μm InGaAs M=30 Avalanche 포토다이오드 TO-46 Package

[특징]
High reliability, low dark current.
Top illumination Planar APD.
High Gain up to M=30.
High bandwidth up to 1.25GHZ.
Hermetic TO46 Can or Mini TO Can or with fiber coupling.

[Applications]
Ultra Weak optical detecting
Optical sensor, OTDR
Laser lidar, laser range finding
High resolution Optical Coherence Tomography
Science analysis and experiment

The absolute values:

Parameter Symbol Value Unit
Operating temperature Top -40~+85
Storage temperature Tstg -45~+100
Operating Voltage Vo 0.99×VBR V
Forward current If 8 mA
Power dissipation   50 mW
Soldering temperature(time) Ts(10s) 260


The opto-eletronic characteritics (T=22±3℃)

Parameter Symbol Test Conditions Min Typ. Max Unit
Response Spectrum λ   800-1700 nm
Active diameter φ   200 μm
Reponsivity Re λ=1.55μm, 1μw, M=1   0.9   A/W
λ=1.064μm, 1μw, M=1   0.65   A/W
Multiplication gain M λ=1.55μm, 1μw, VBR-4V   10
λ=1.064μm, 1μw, VBR-2V   20
λ=1.064μm, 1μw, VBR-1V   30
Rise time Tr M=10,RL=50Ω   300   ps
-3dB bandwidth BW M=10,RL=50Ω   1.25   GHz

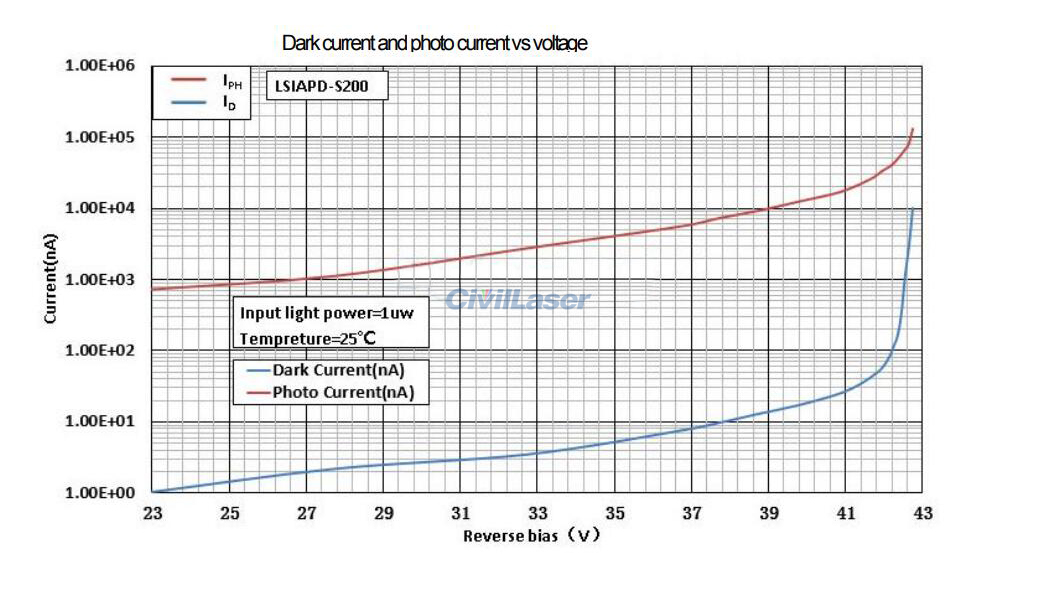

Dark current ID M=10   10 30 nA
Total capacitance Ctot M=10   2.4   pF
Reverse breakdown voltage VBR IR=10uA 35 43 55 V
Maximum instantaneous input power P M=10,1550nm,10ns,10KHZ     0.6 mW
Operating voltage temperature coefficient δ Tc=-40℃~85℃   0.11 0.15 V/℃

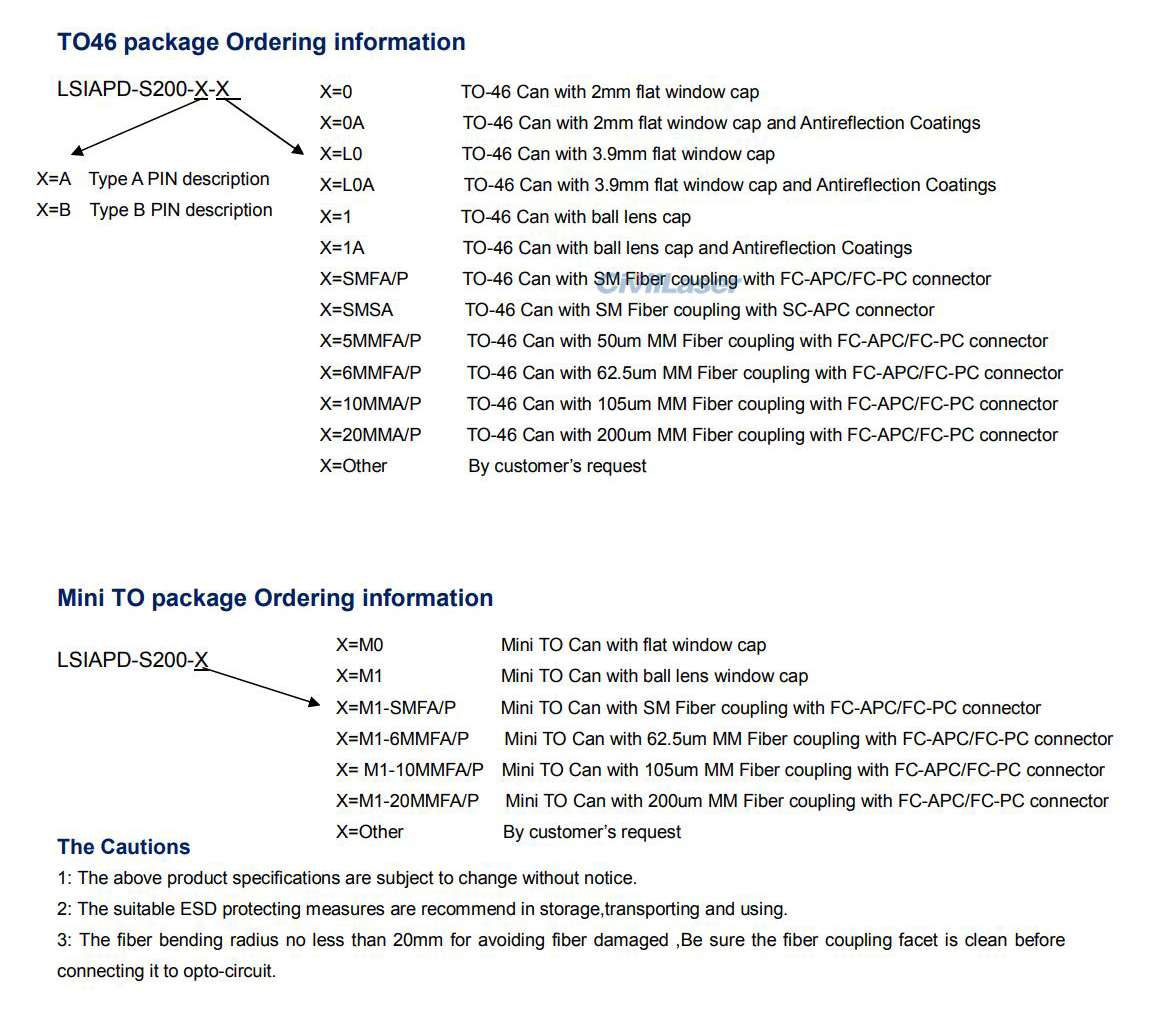

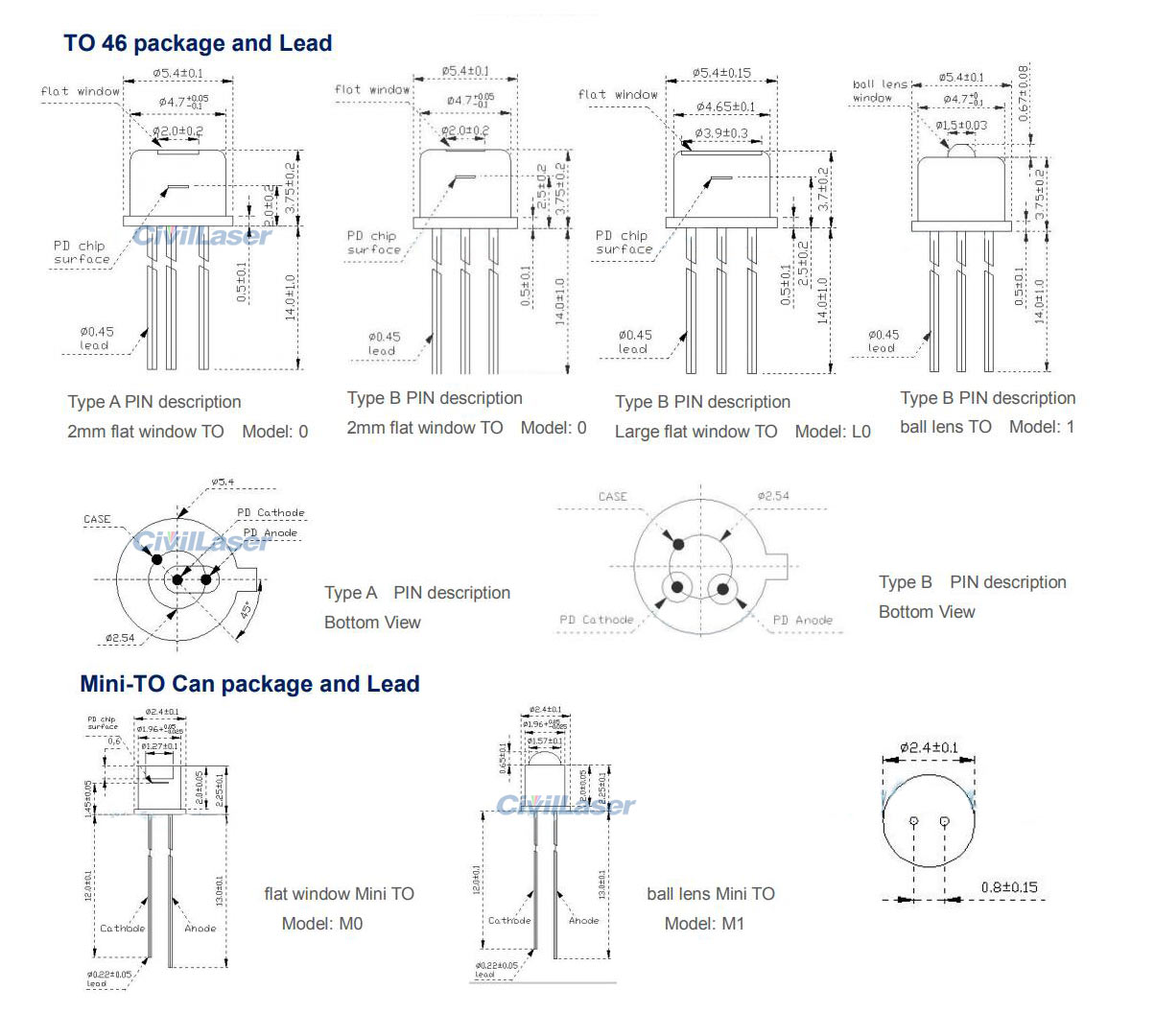

Package Hermetic TO46 Can or Mini TO Can or with fiber coupling.


메모:
(1) The default is TO-46 Can package, please contact us if you need other intrefaces.
(2) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(3) Delivery time: We have a small amount of commonly used PD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.



800-1700nm APD

800-1700nm APD

800-1700nm APD

800-1700nm APD

800-1700nm APD
