850nm 60mW FP 단일 모드 Fiber Coaxial 레이저 다이오드

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:



Add to Cart:


850nm 60mW FP 단일 모드 Fiber Coaxial 레이저 다이오드

[특징]
MQW F-P LD
Single mode

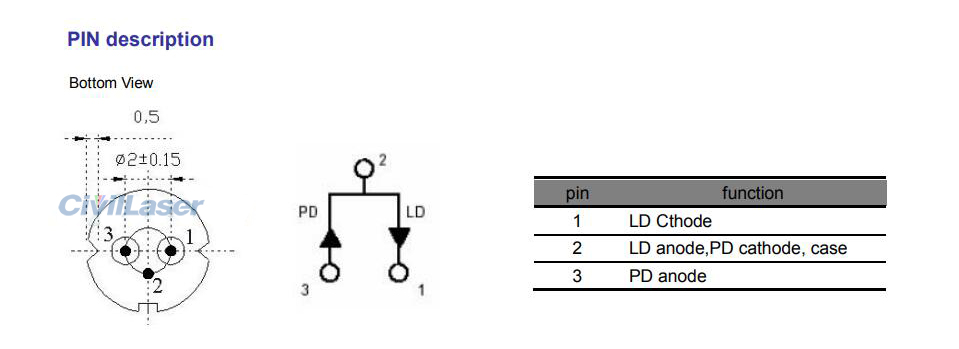

Built-in monitor PD
Metal can type hermetic
Low threshold/operate current
High reliable

[Applications]
Optical Sensing
Industrial automatic control
Science analysis and experiment
Test and Measurement Equipment
Laser range finder

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -10~+60
Storage temperature Tstg -40~+85
Laser diode Reverse voltage Vr 2 V
Soldering temperature(time) Ts 260/10 ℃/S


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Min Typ. Max Unit
Center wavelength λ 840 850 860 nm
Threshold Current Ith   40 70 mA
Operating Current Iop 200 240 280 mA
Spectral width Δλ   3   nm
Operating Voltage Vop 1.8 2.2 2.5 V
Light output power(from 9um SM fiber)*1 Po(CW)   60   mW
Monitor Output Current Im 0.01 0.3 1.5 mA

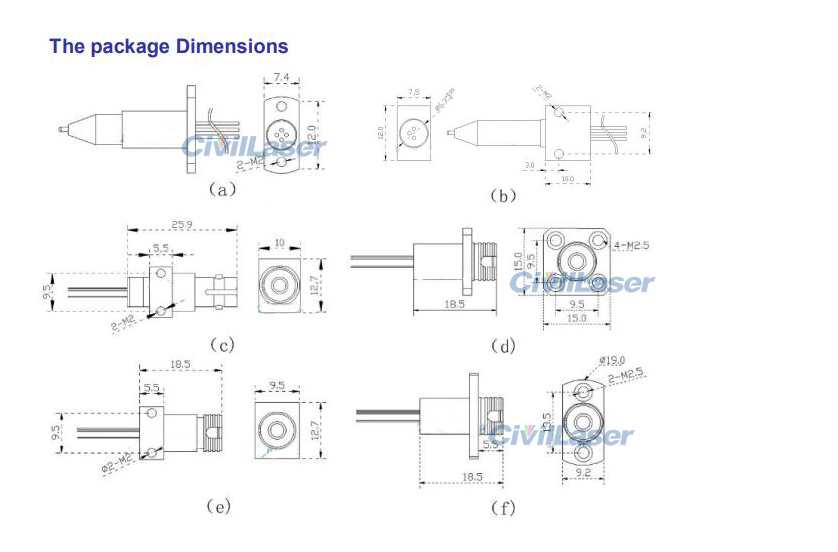

package TO18 Can with fiber coupling or receptacle.



메모:
(1) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(2) Delivery time: We have a small amount of commonly used LD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.



850nm 60mW FP SM Laser diode

850nm 60mW FP SM Laser diode

850nm 60mW FP SM Laser diode

850nm 60mW FP SM Laser diode
