1064nm 15mW FP SM Coaxial 레이저 다이오드 파이버 레이저

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


1064nm 15mW FP SM Coaxial 레이저 다이오드 파이버 레이저

[특징]
MQW F-P LD, High reliable
Single mode
Built-in monitor PD
Low threshold/operate current
Metal can type hermetic

[Applications]
Optical Sensing
Industrial automatic control
Science analysis and experiment
Test and Measurement Equipment

Absolute maximum ratings:

Parameter Symbol Value Unit
Operating temperature Top -10~+50
Storage temperature Tstg -15~+85
Laser diode Reverse voltage Vr 2 V
Soldering temperature(time) Ts 260/10 ℃/S


Electrical and optical characteristics:(T=25℃)

Parameter Symbol Min Typ. Max Unit
Center wavelength λ 1058 1064 1070 nm
Threshold Current Ith   20 40 mA
Operating Current Iop   100 140 mA
Spectral width Δλ   3   nm
Operating Voltage Vop   1.8 2.3 V
Light output power(from 9um SM fiber)*1 Po(CW)   15   mW
Monitor Output Current Im 0.2 1 2 mA

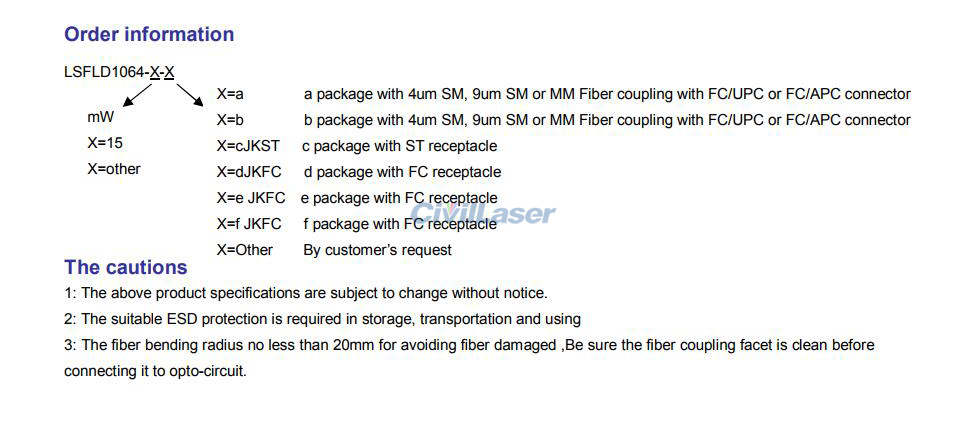

package Hermetic TO18 Can with fiber coupling or receptacle.

메모:
(1) If the quantity you ordered is less than 10 or far more than 10, the sales price is different, Pleas contact us.
(2) Delivery time: We have a small amount of commonly used LD. When the quantity is large, it needs to be re-produced, generally 1 to 3 weeks, different models have different delivery cycles.

1064nm FP SM Laser diode

1064nm FP SM Laser diode

1064nm FP SM Laser diode

FP SM Laser diode
