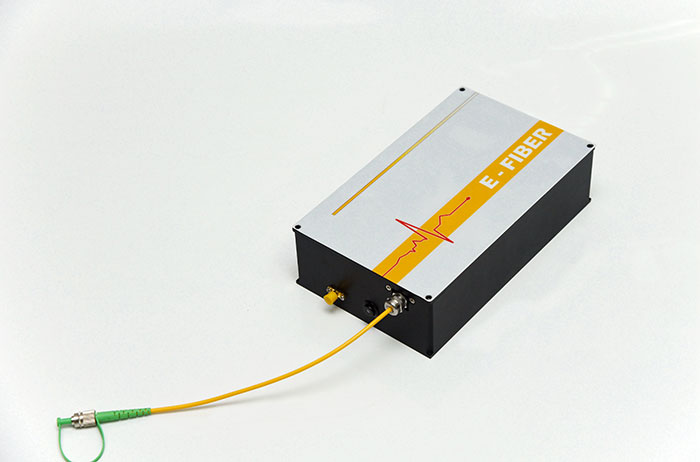

780nm Femtosecond Pulse 파이버 레이저 Ultra-Fast Laser Desktop Type
The ultrafast laser adopts the latest femtosecond laser technology to achieve stable output of 780nm band femtosecond pulse laser. One-key auto-start and long-term stable operation. It has the characteristics of extremely narrow laser pulse and high pulse peak power. It has important applications in the fields of optical frequency comb, terahertz wave, and multiphoton imaging.
[특징]
Femtosecond pulse width.
Self-starting and maintenance-free.
Full polarization and high stability.
[Applications]
Multiphoton excitation imaging
Two-photon absorption
Ultrafast laser phenomenon
[Specification]
Parameter |
Unit |
Value |
Remarks |
Wavelength |
nm |
780±10 |
|
Spectral Width |
nm |
20nm |
20nm@3dB |
Pulse Width |
fs |
120 |
50/100/200/500fs Customizable |
Output Power |
mW |
300 |
Customizable |
Power Instability |
|
< 1% |
|
Repeat Frequency |
MHz |
80 |
Customizable |
Repeat Frequency Instability |
Hz |
<100 |
|
Single Pulse Energy |
nJ |
>0.4 |
|
Laser Polarization |
|
Linear polarization |
|
Output Mode |
|
Spatial Light |
|
Preheat Time |
min |
<1 |
|
Electrical and environmental parameters:
Parameter |
Desktop Type
(Current Product) |
Module Type |
Control Mode |
Button |
Button |
Synchronous Electrical Signal Interface |
SMA |
SMA |
Power Supply |
100~240V AC, <30W |
5V DC, <20W |
Size |
330(W)×398(D)×112(H)mm |
200(W)×121(D)×55(H)mm |
Operating Temperature |
5 ~ 45°C |
Operating Humidity |
0~70% |
