2000nm-band ASE 광대역 광원 파이버 레이저 소스

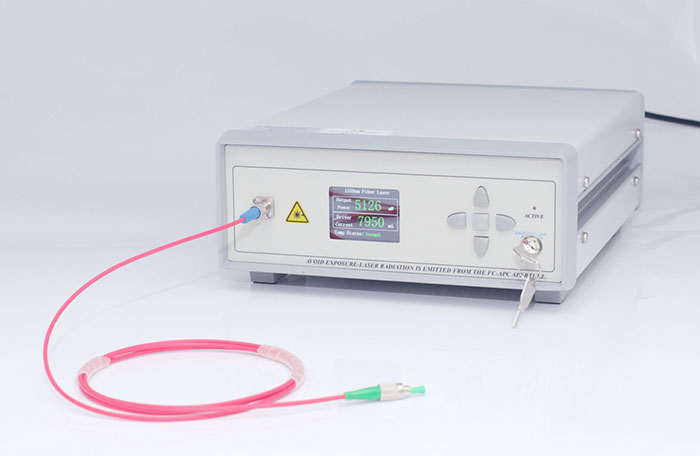

The 2000nm band ASE broadband light source is based on thulium fiber laser technology, has a high output power, and the spectrum covers 1850~2000nm, which is suitable for laser biology, spectrum measurement and other applications. Can provide communication interface and host computer software to facilitate the monitoring of the state of the light source.
메모: 4~8 weeks lead time.
[특징]
Flat spectrum.
Mid-infrared band.
High stability output power.
[Applications]
Fiber optic sensing
Medical imaging
Optical fiber device testing
[Specification]
| Parameter |
Unit |
Typical Value |
Remarks |
| Wavelength Range |
nm |
1850~2000 |
|
| Output Optical Power |
mW |
10 |
Not adjustable |
| Output Isolation |
dB |
>35 |
|
| Short-term Stability (15 minutes) |
dB |
≤ ±0.02 |
|
| Long-term Stability (8 hours) |
dB |
≤ ±0.05 |
|
| Degree of polarization (DOP) |
dB |
≤ 0.2 |
|
| Pigtail Type |
|
SMF-28e or SM1950 |
|
| Pigtail Connector Type |
|
FC/APC |
|
|
Electrical and Environmental Parameters
|
DeskTop Type
|
|
Control Method
|
Button
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
|
Power Supply
|
100~240V AC, <30W
|
|
Size
|
260(W)×320(D)×120(H)mm
|
|
Operating Temperature Range
|
-5~+55°C
|
|
Operating Humidity Range
|
0~70%
|
