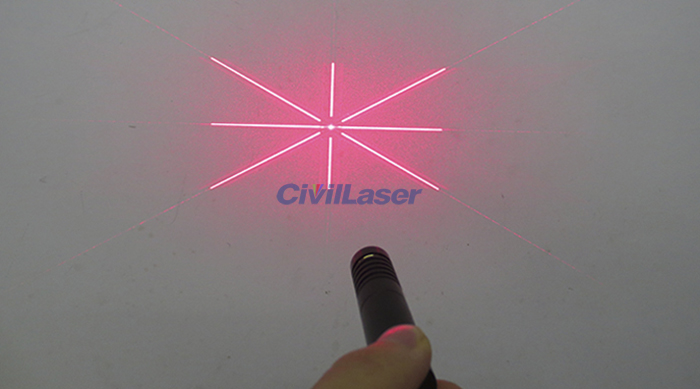

43.2° 빨간색/녹색/Blue Union Jack Pattern Laser Four Solid Lines 레이저 다이오드 모듈

43.2° 빨간색/녹색/Blue Union Jack Pattern Laser Four Solid Lines 레이저 다이오드 모듈

[특징]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.
3. Spot size is adjustable.
4. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
5. Imported laser diodes emit light directly with exceptional stability.
6. Intelligent driver board with imported IC, wide range power supply.
7. High temperature resistance, corrosion resistance.

[명세서]
상품명: 레이저 모듈
Laser Color: 빨간색 / 녹색 / Blue (선택하다)
Power: 100mW
Installation Height: 0~5 meters
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet (imported from Germany)

X direction: 43.2°
At 0.5 meters, the length in the X direction is 396 mm.
Y direction: 24.4°
At 0.5 meters, the length in the Y direction is 216 mm.
Oblique direction: 48.5°
At 0.5 meters, the length in the diagonal direction is 450 mm.

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser module holder
