Union 850nm 300mW Infrared 레이저 다이오드 U-LD-85C061Ap/Bp TO18 5.6mm Package

Union 850nm 300mW Infrared 레이저 다이오드 U-LD-85C061Ap/Bp TO18 5.6mm Package

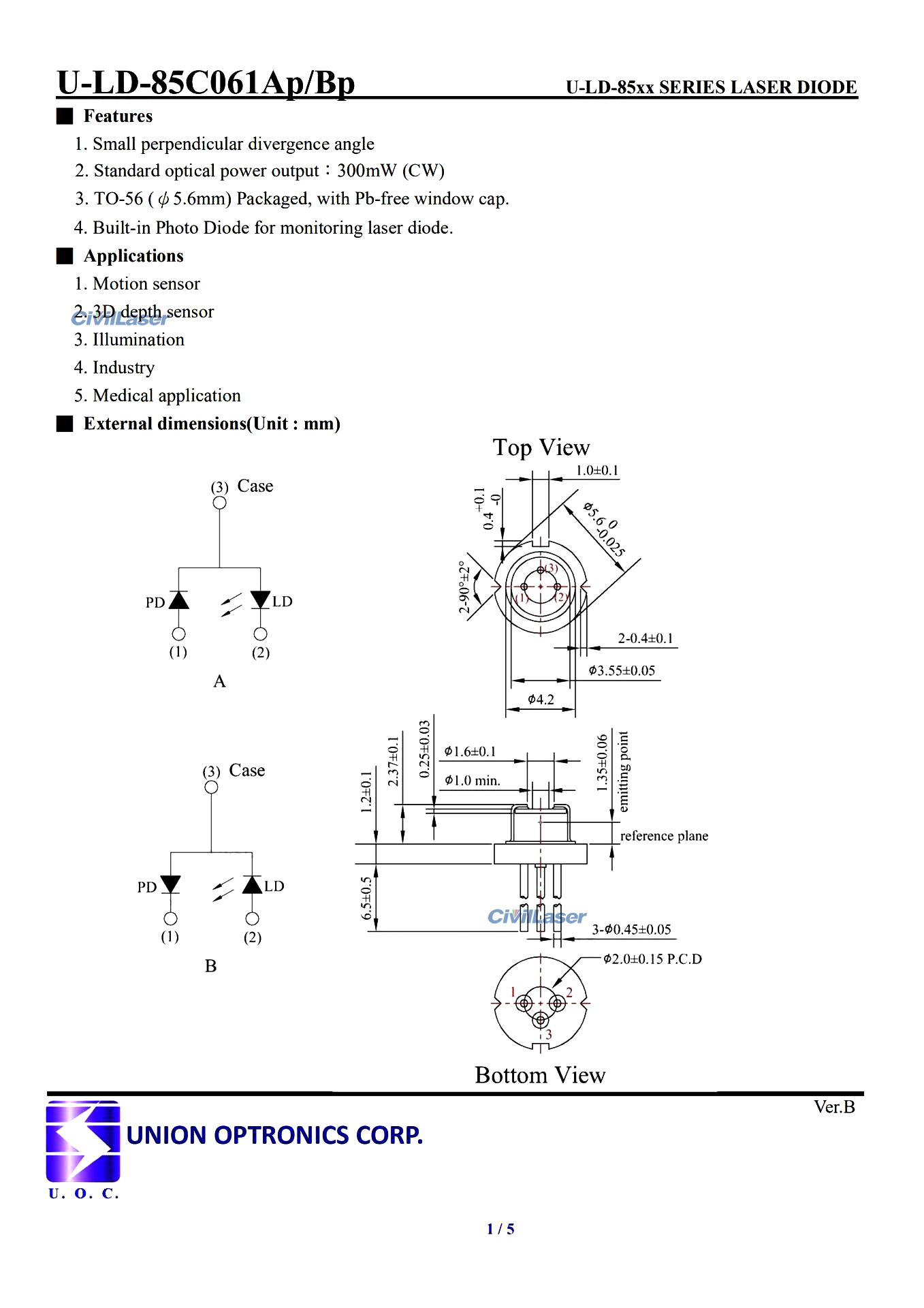

[특징]
1. Small perpendicular divergence angle.
2. Standard optical power output：300mW (CW).
3. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
4. Built-in Photo Diode for monitoring laser diode.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

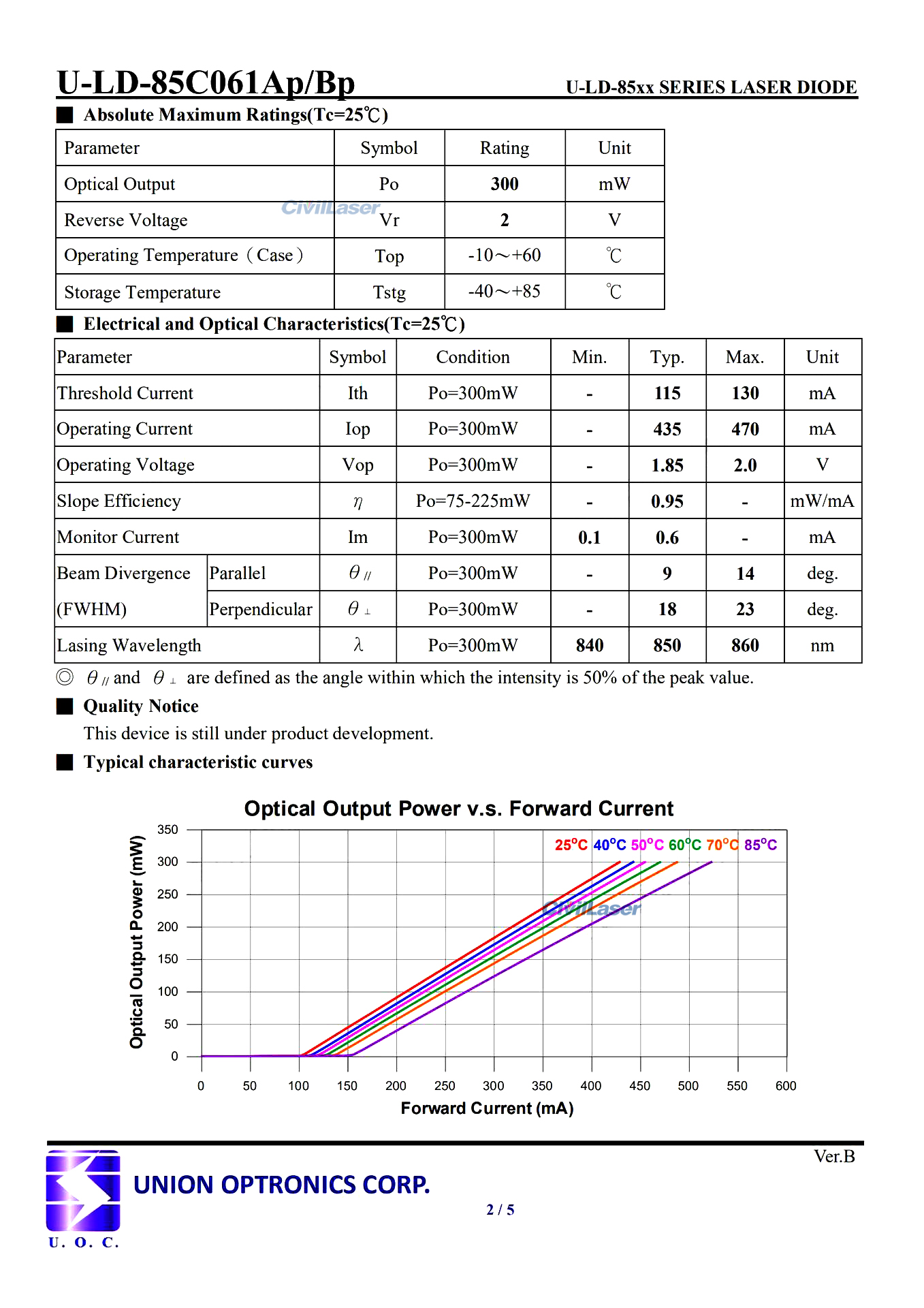

[Specification]
상품명: Laser diode
Model: U-LD-85C061Ap/Bp
파장: 850nm
출력 파워: 300mW
Reverse Voltage: 2V
Threshold Current: 115mA
작동 전류: 435mA
작동 전압: 1.85V
Package: TO18(Φ5.6mm)
작동 온도: -10~+60℃
보관 온도: -40~+85℃
