U-LD-831061Ap/Cp 830nm 10mW 레이저 다이오드 Union IR Diode TO-18 Package

U-LD-831061Ap/Cp 830nm 10mW 레이저 다이오드 Union IR Diode TO-18 Package

[특징]
1. Peak wavelength at 25℃：830 nm (typical)..
2. Standard light output：10mW (CW).
3. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens, monitor PD inside.
4. Small perpendicular divergence angle.
5. Lateral single mode lasing.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Industry
4. Medical application

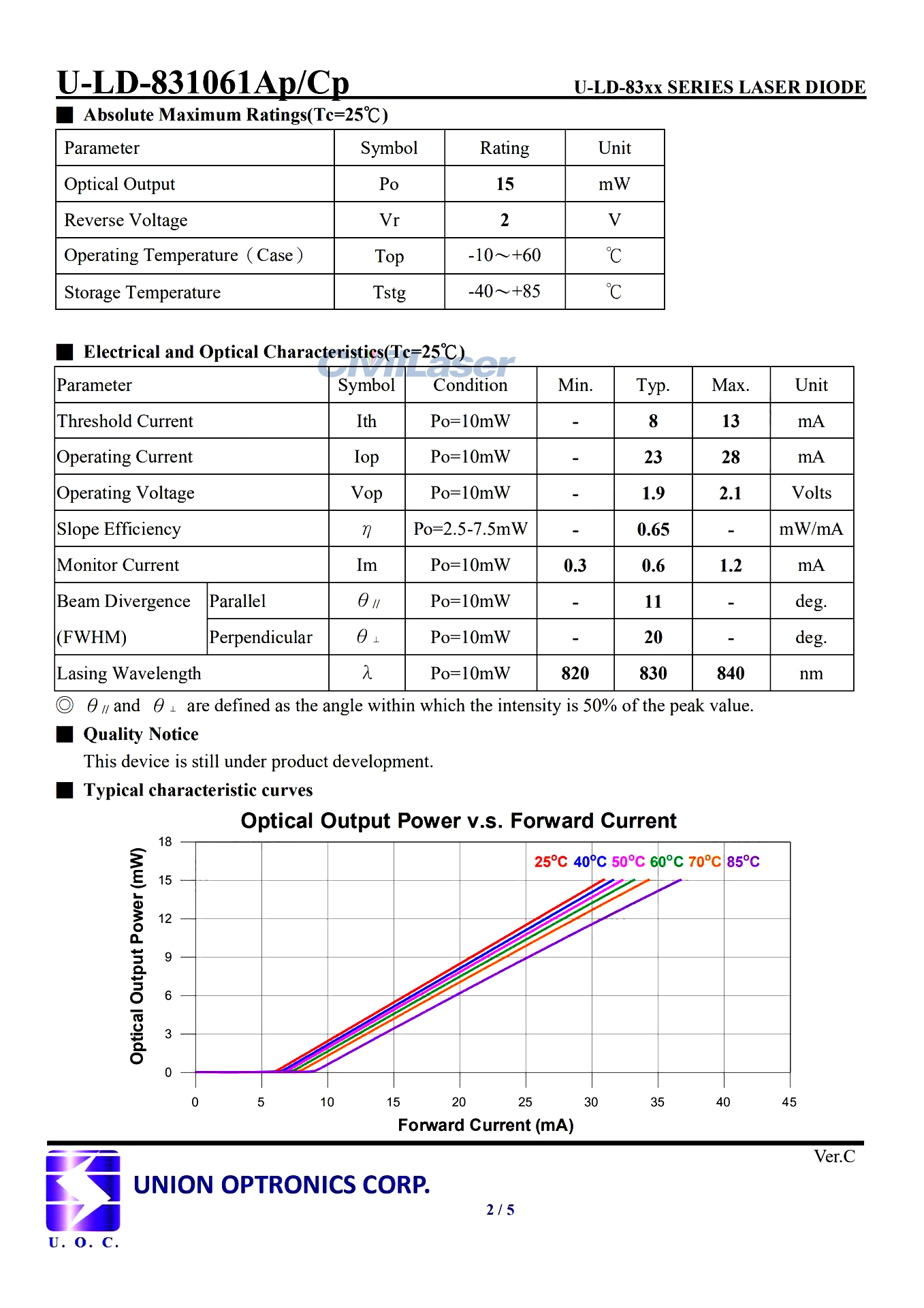

[Specification]
상품명: Laser diode
Model: U-LD-831061Ap/Cp
파장: 830nm
출력 파워: 10mW
Reverse Voltage: 2V
Threshold Current: 8mA
작동 전류: 23mA
작동 전압: 1.9V
Package: TO18(Φ5.6mm)
작동 온도: -10~+60℃
보관 온도: -40~+85℃
