Union U-LD-851061Ap 850nm 10mW IR 레이저 다이오드 TO-18 Package
[특징]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output:10mW (CW).
4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
5. Built-in Photo Diode for monitoring laser diode.
[Applications]
1. Motion sensor
2. 3D depth sensor
3. Industry
4. Medical application

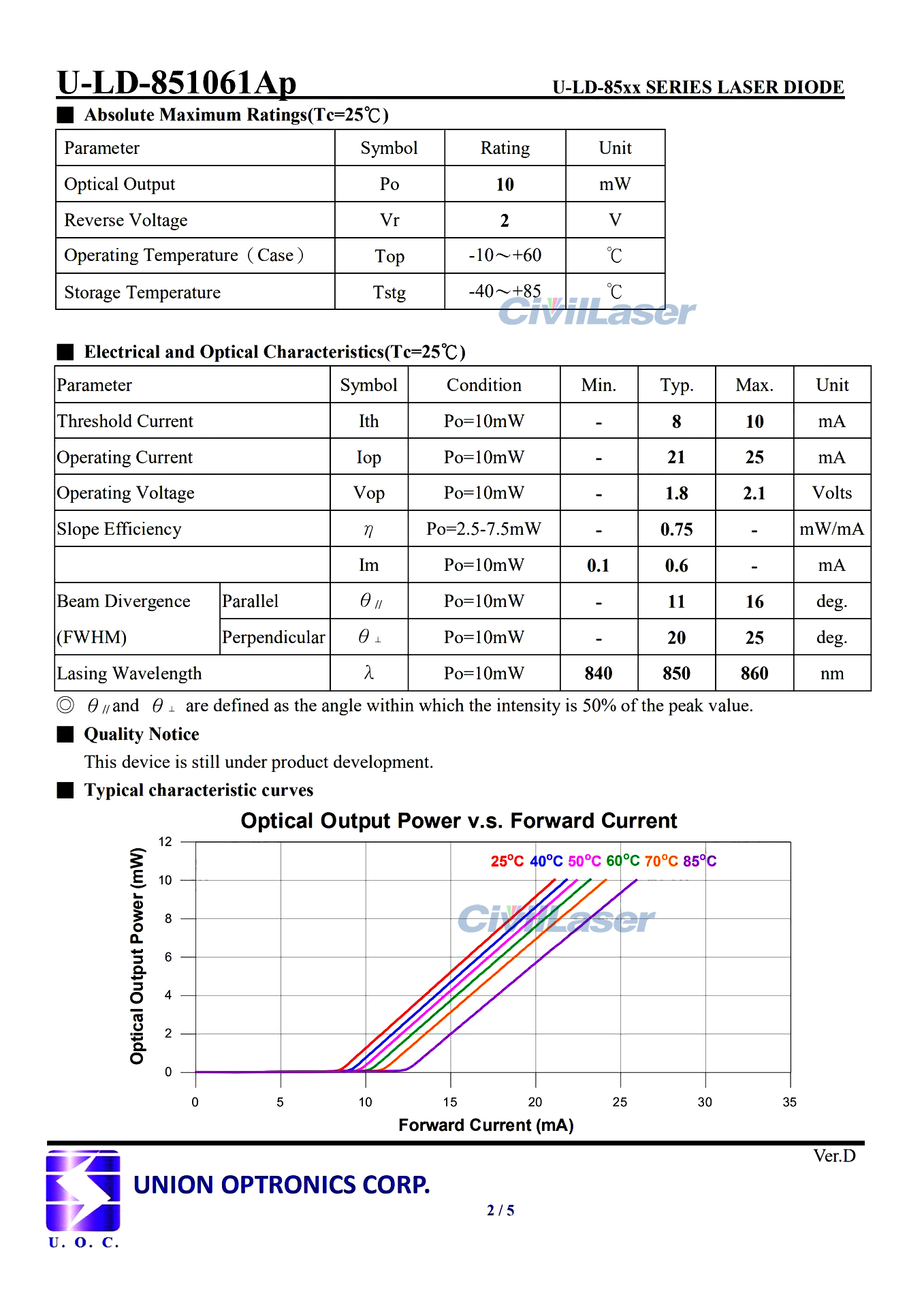

[Specification]
상품명: Laser diode
Model: U-LD-851061Ap
파장: 850nm
출력 파워: 10mW
Reverse Voltage: 2V
Threshold Current: 8mA
작동 전류: 21mA
작동 전압: 1.8V

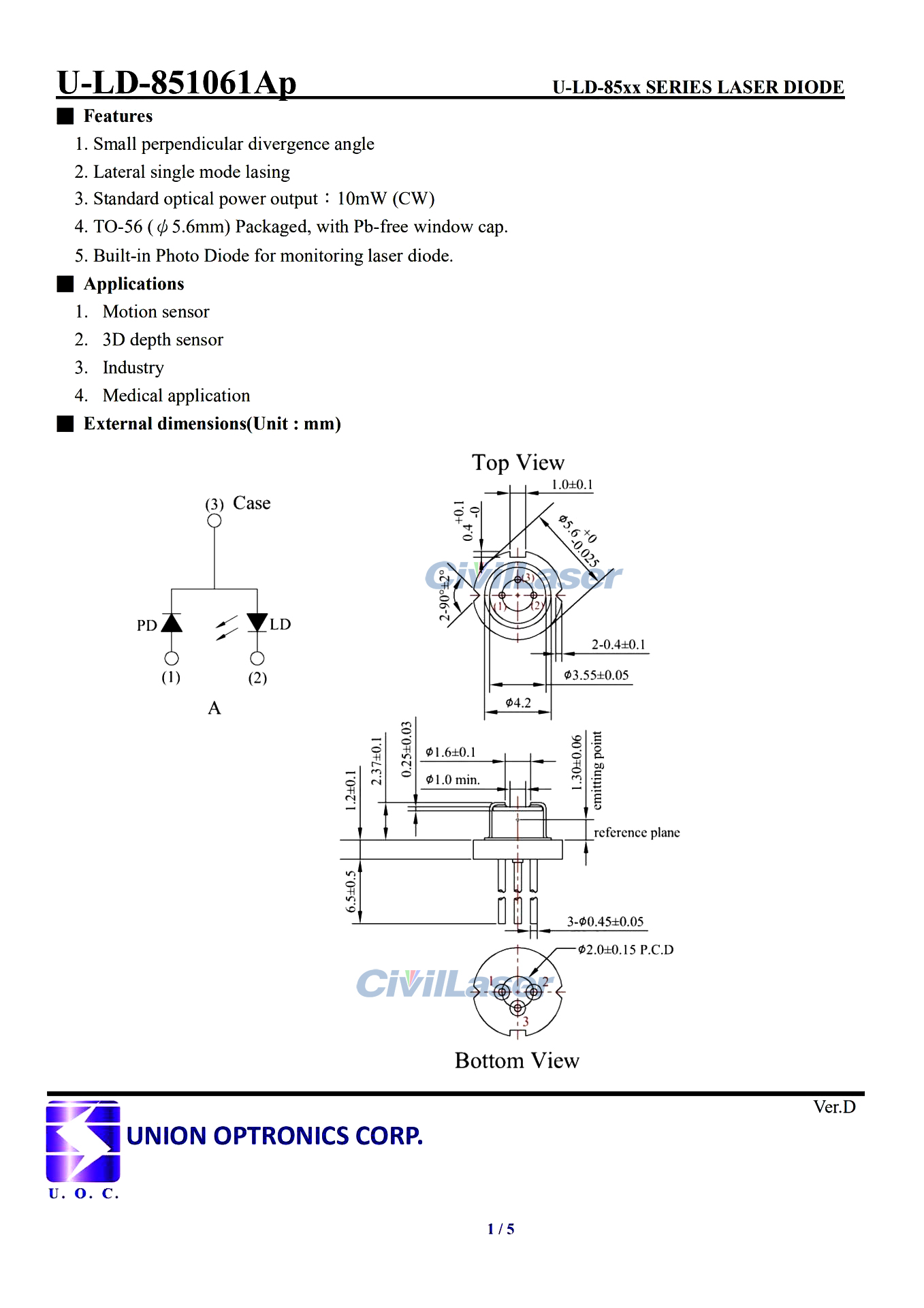

Package: TO18(Φ5.6mm)
작동 온도: -10~+60℃
보관 온도: -40~+85℃
