Union U-LD-835060Ap/62Ap 830nm 50mW IR Single mode 레이저 다이오드 TO-18 Package

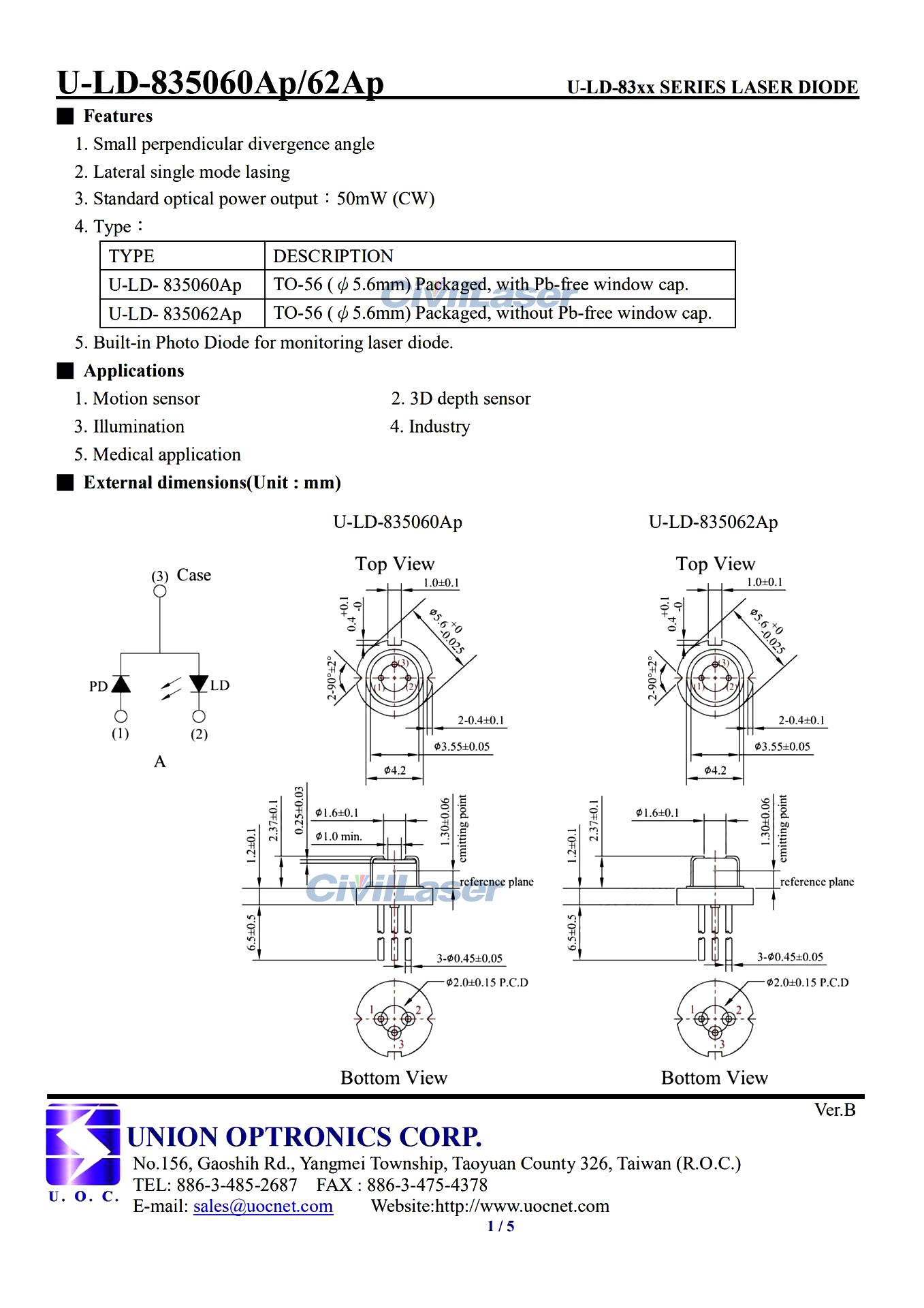

[특징]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output:50mW (CW)
4. U-LD- 835060Ap: TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
U-LD- 835062Ap: TO-56 (Φ5.6mm) Packaged, without Pb-free window cap.
[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

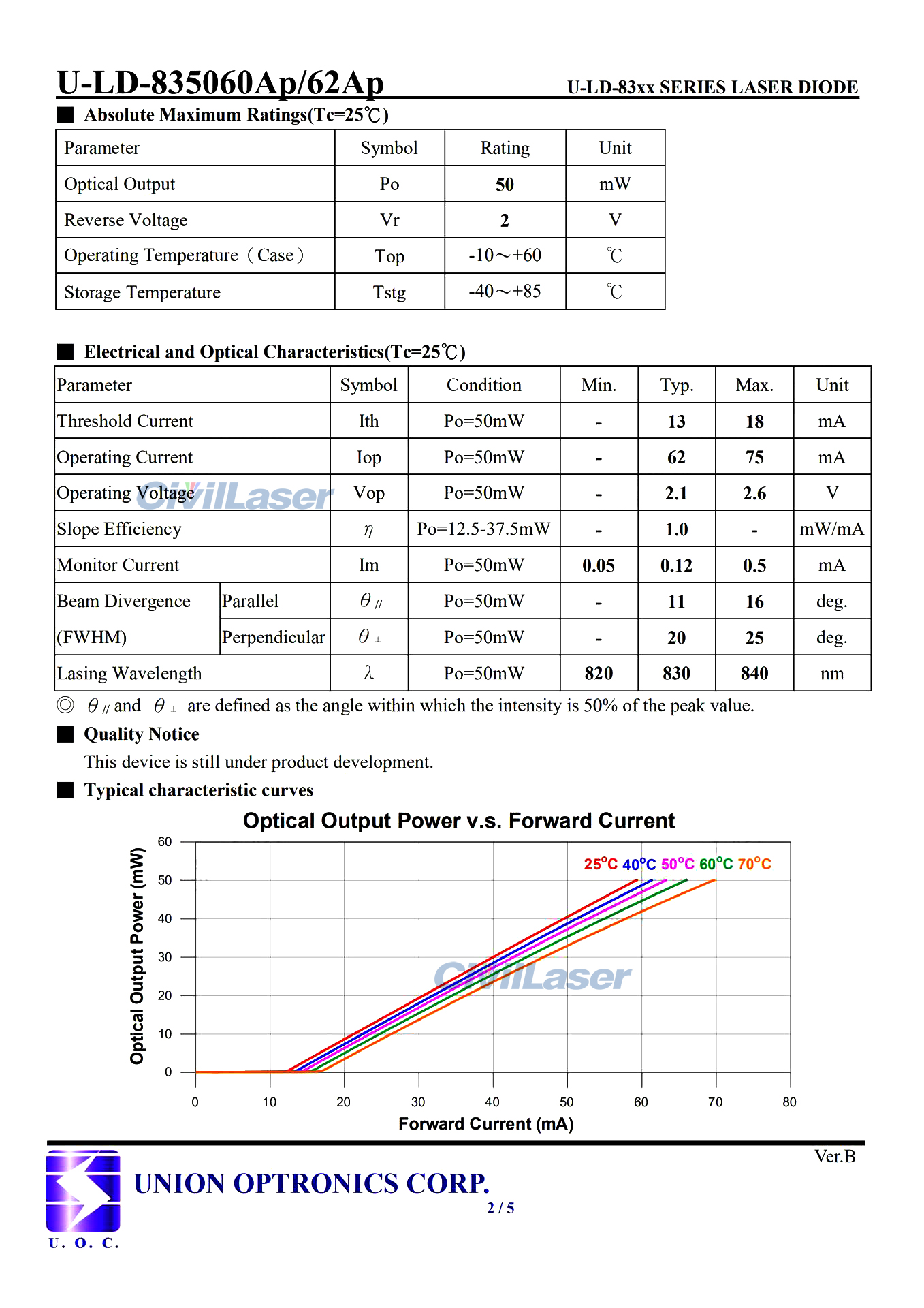

[Specification]
상품명: Laser diode
Model: U-LD-835060Ap/62Ap
파장: 830nm
출력 파워: 50mW
Reverse Voltage: 2V
Threshold Current: 13mA
작동 전류: 62mA
작동 전압: 2.1V
Package: TO18(Φ5.6mm)
작동 온도: -10~+60℃
보관 온도: -40~+85℃
