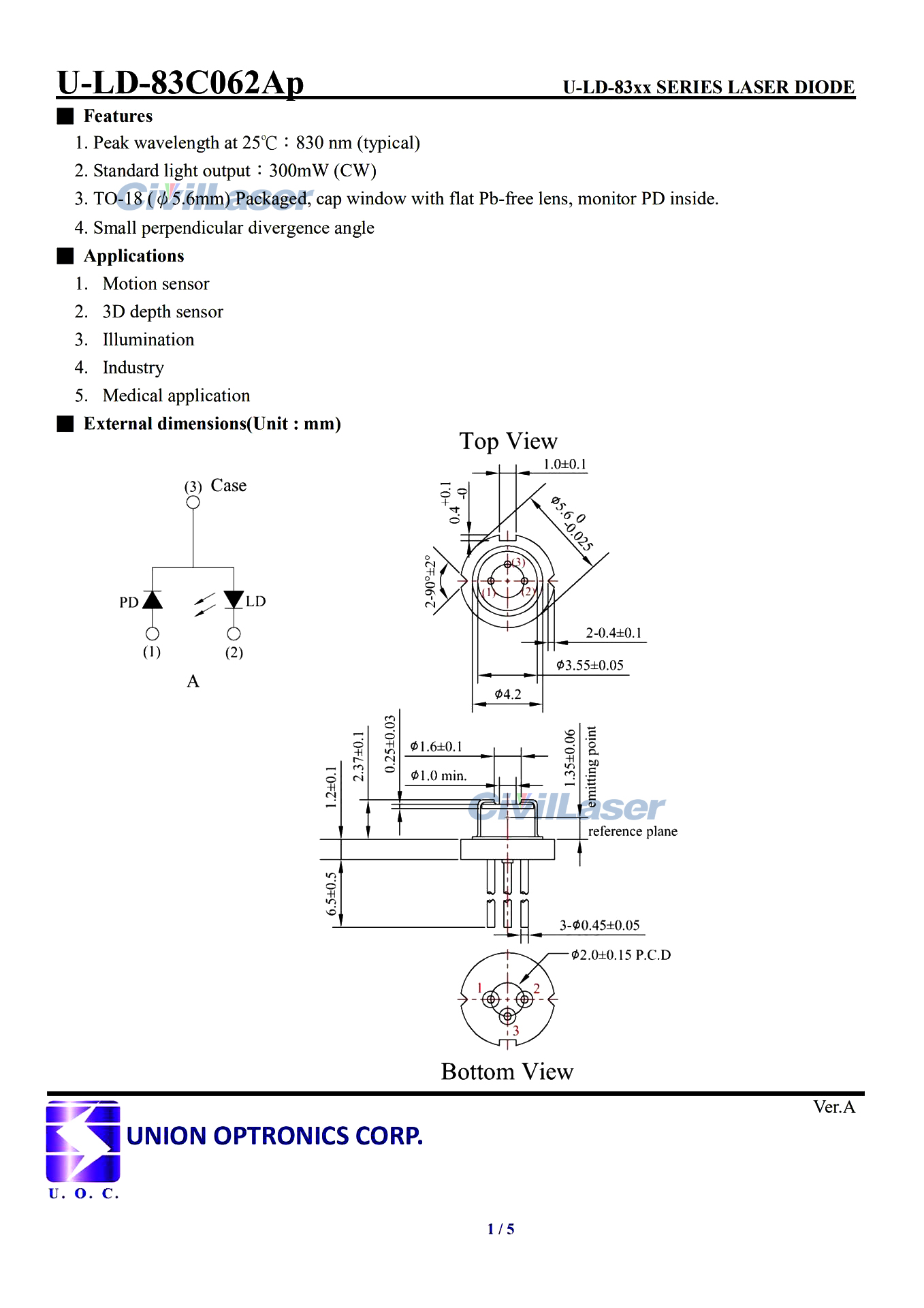

Union U-LD-83C062Ap 830nm 300mW IR 레이저 다이오드 TO18 Φ5.6mm Package

Union U-LD-83C062Ap 830nm 300mW IR 레이저 다이오드 TO18 Φ5.6mm Package

[특징]
1. Peak wavelength at 25℃: 830nm(typical)
2. Standard light output：300mW (CW)
3. TO-18 (Φ5.6mm) Packaged, cap window with flat Pb-free lens, monitor PD inside.
4. Small perpendicular divergence angle.

[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

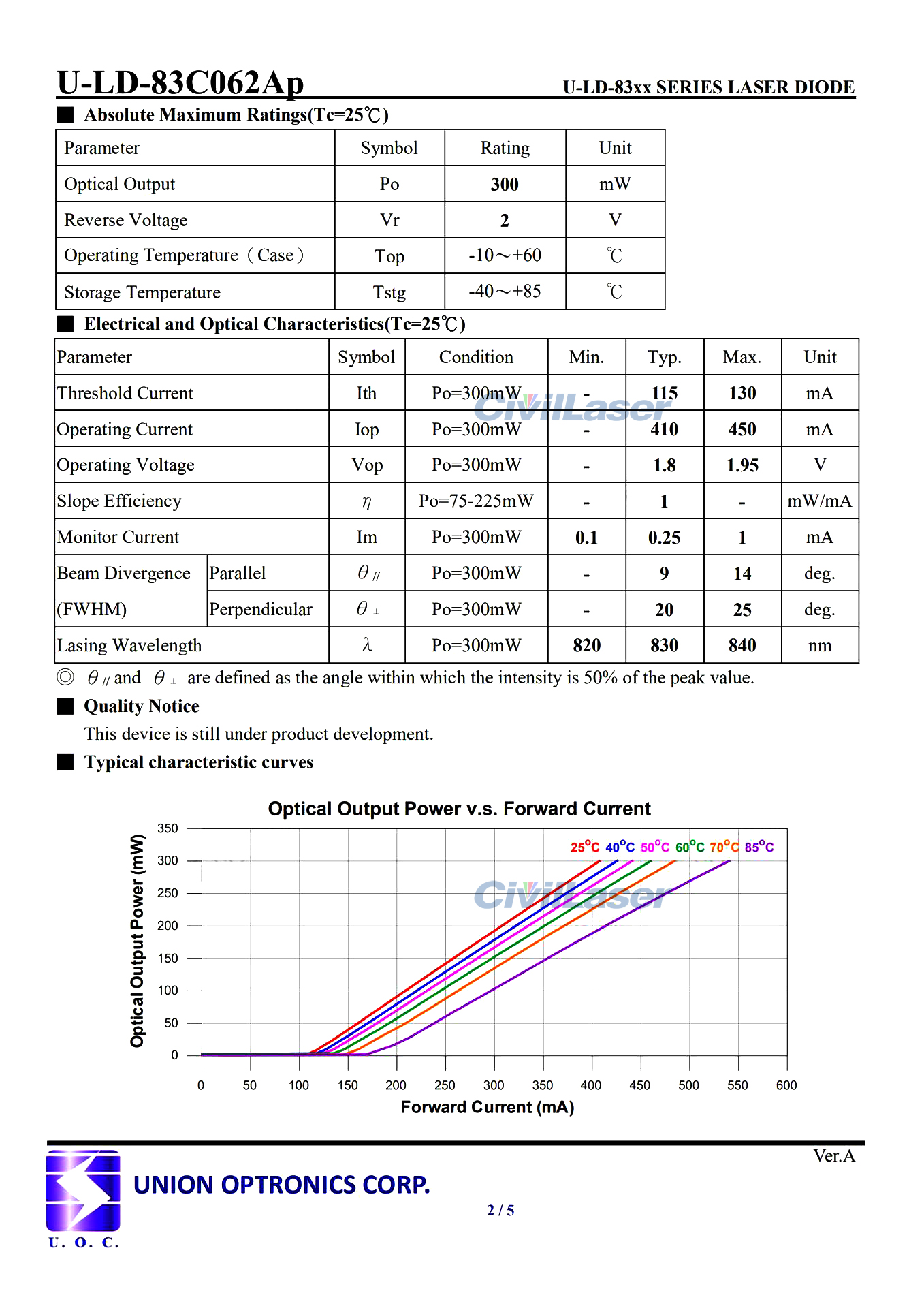

[Specification]
상품명: Laser diode
Model: U-LD-83C062Ap
파장: 830nm
출력 파워: 300mW
Reverse Voltage: 2V
Threshold Current: 115mA
작동 전류: 410mA
작동 전압: 1.8V
Package: TO18(Φ5.6mm)
작동 온도: -10~+60℃
보관 온도: -40~+85℃
