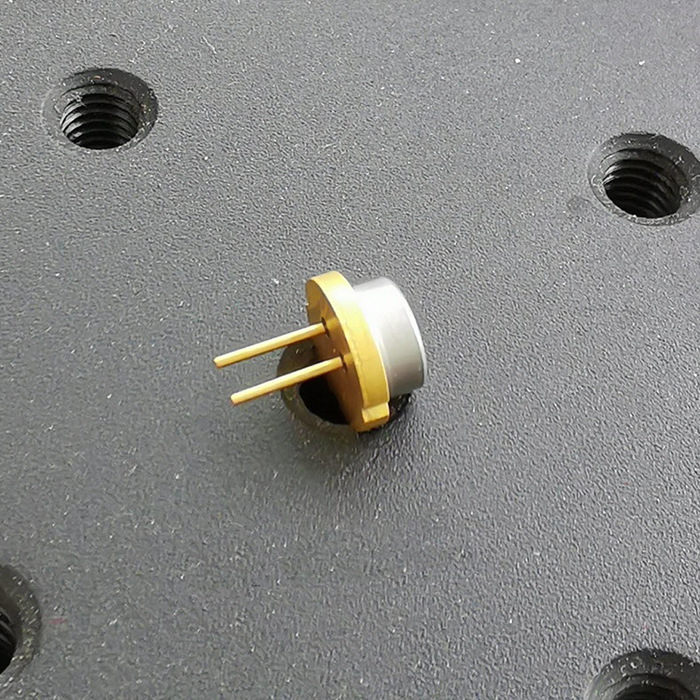

Osram PLT3 520D 520nm 140mW 녹색 레이저 다이오드 TO38 Package

Osram PLT3 520D 520nm 140mW 녹색 레이저 다이오드 TO38 Package

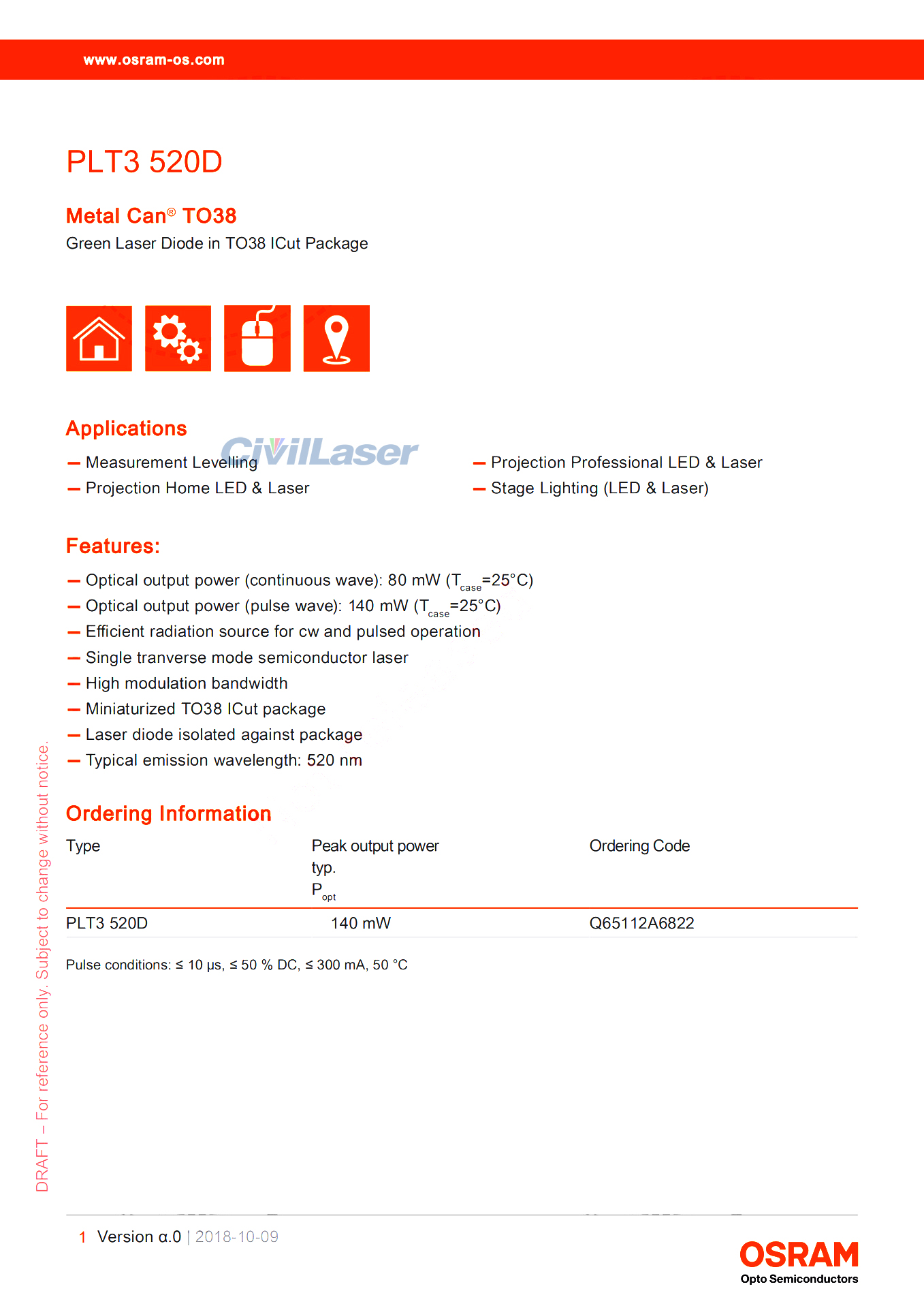

[특징]
1. Optical output power(CW): 80mW (Tc=25℃)
2. Optical output power(pulse wave): 140mW (Tc=25℃)
3. Efficient radiation source for cw and pulse operation.
4. Single transverse mode semiconductor laser.
5. High modulation bandwidth.
6. Miniaturized TO38 Icut package.
7. Laser diode isolated against package.
8. Typical emission wavelength: 520nm

[Applications]
1. Measurement levelling
2. Projection professional LED & Laser
3. Projection home LED & Laser
4. Stage lighting (LED & Laser)

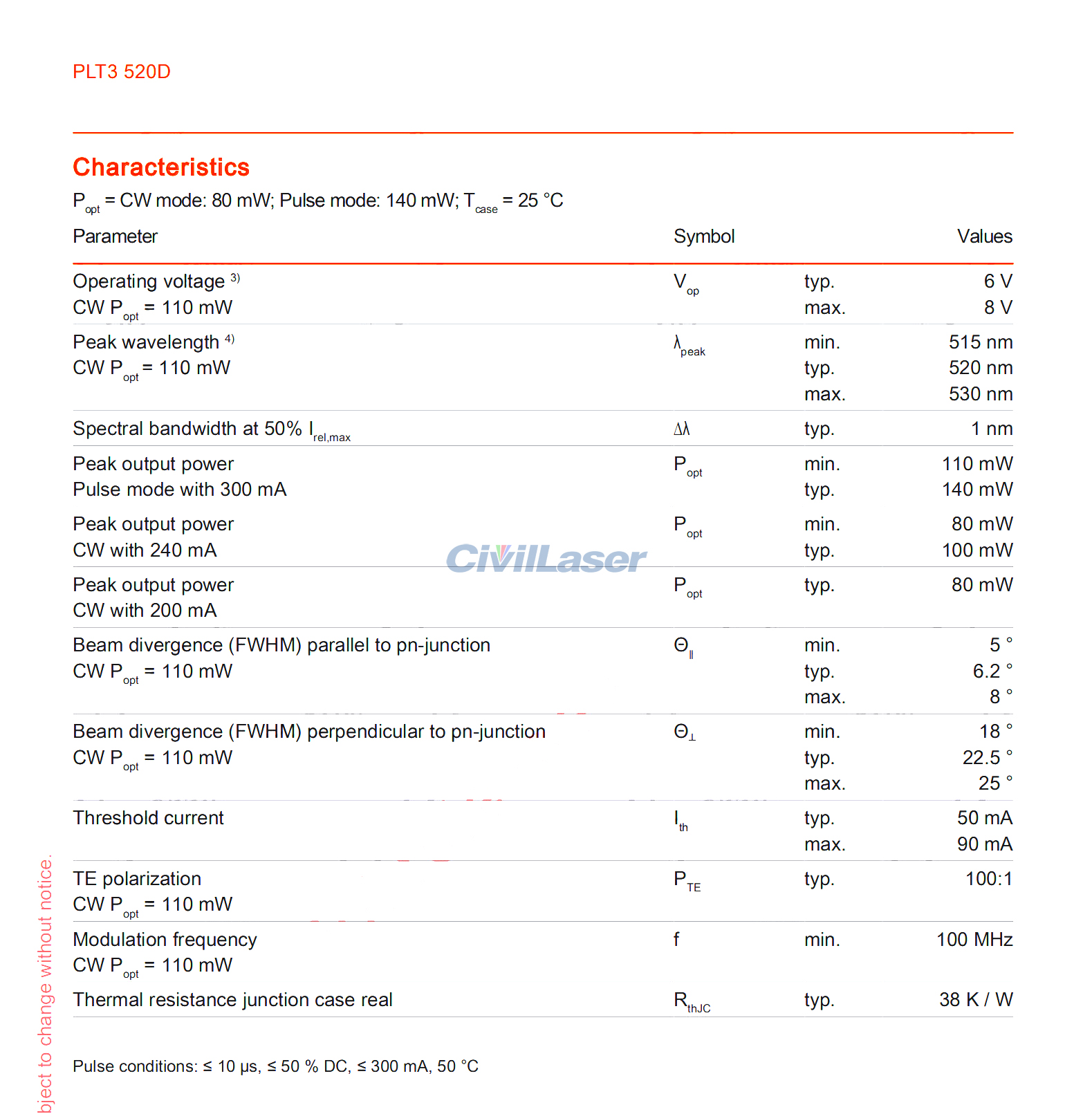

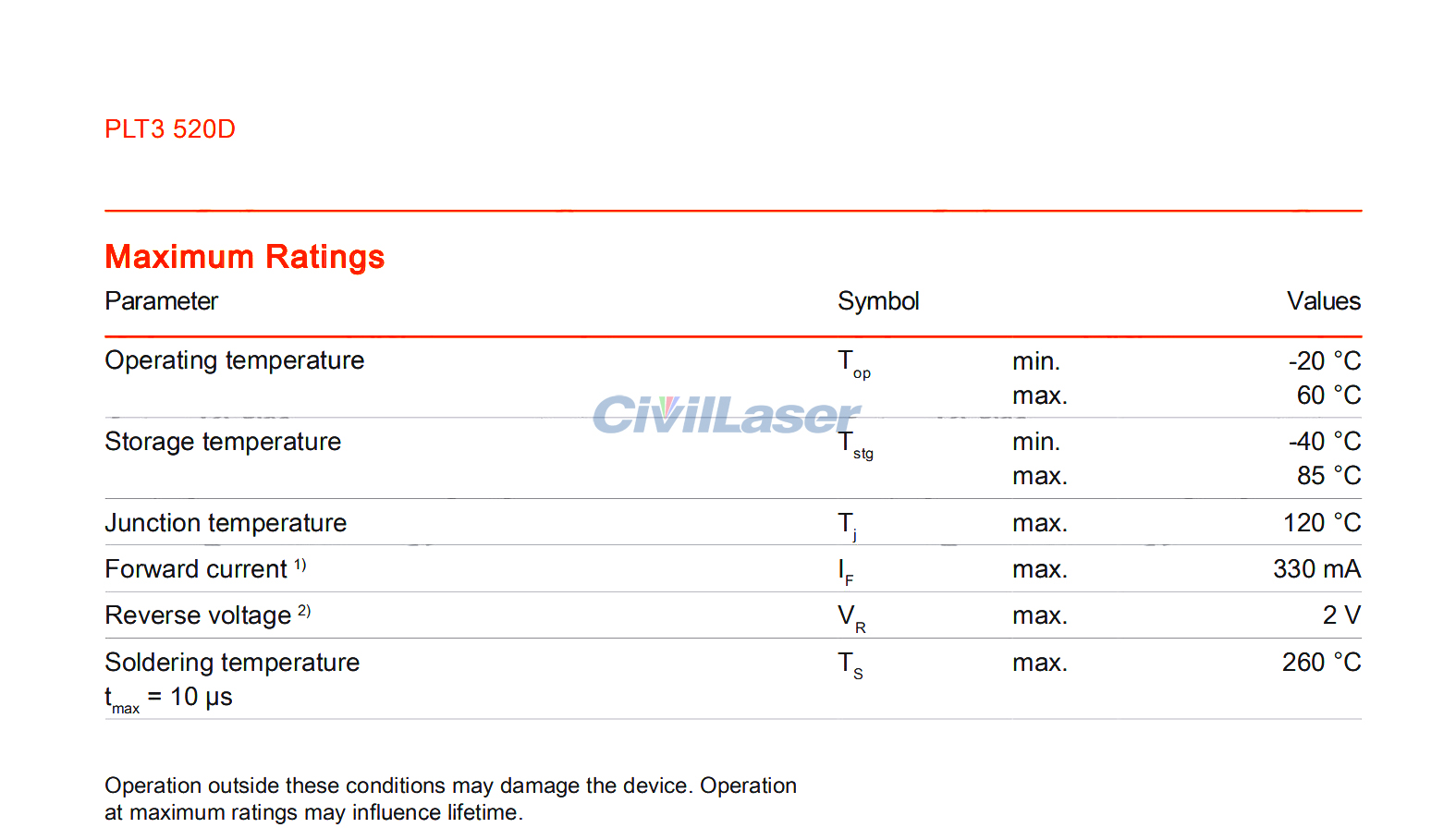

[Specification]
상품명: Laser diode
Model: PLT3 520D
파장: 520nm
Output Power(CW): 80mW
Output Power(Pulse wave): 140mW
Forward Current: 330mA
Threshold Current: 50mA
Reverse Voltage: 2V

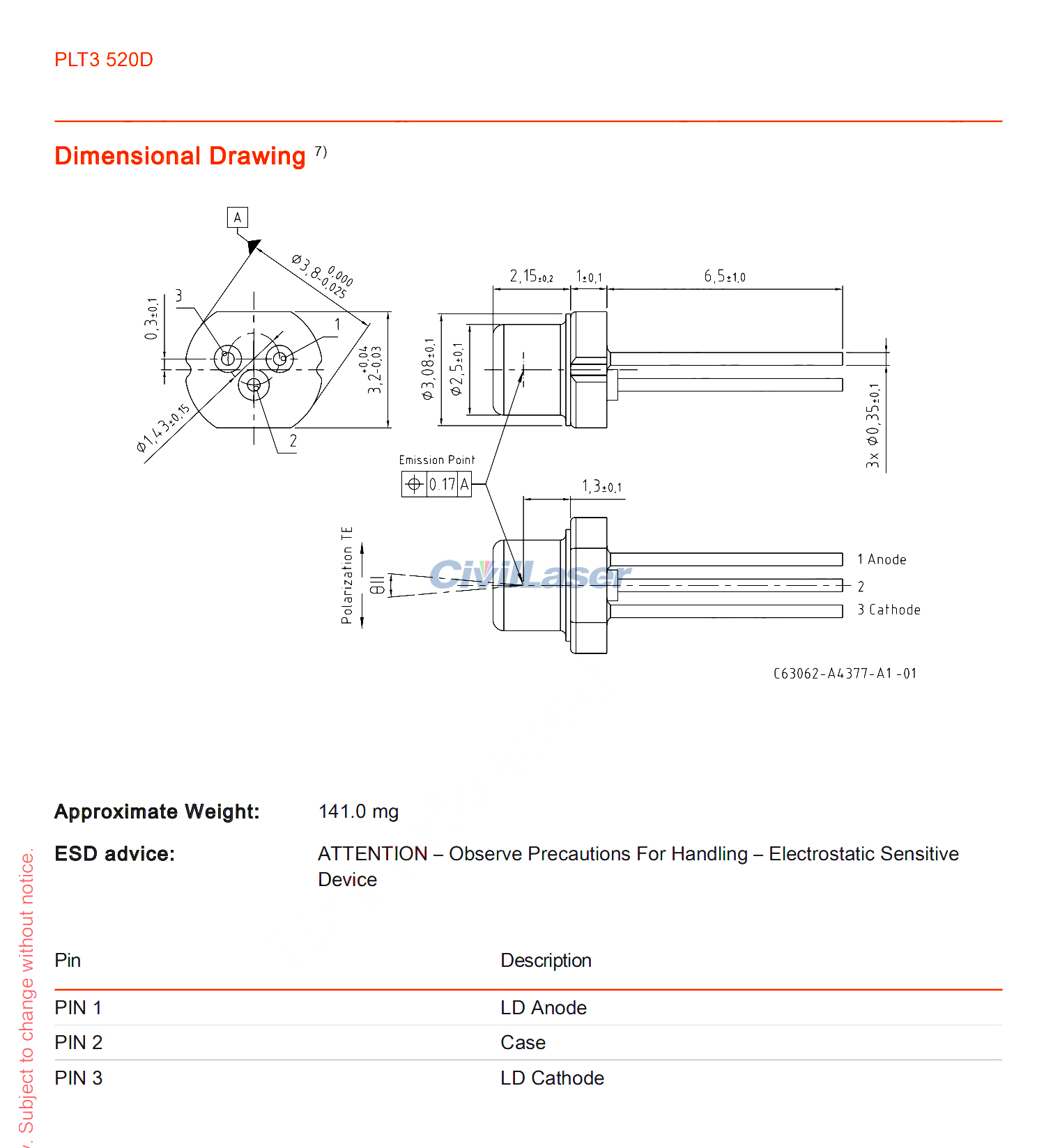

Package: TO38
작동 온도: -20~+60℃
보관 온도: -40~+85℃
