U-LD-80J051Ap/Dp 808nm 1000mW 고성능 NIR 레이저 다이오드 Φ9mm Package

U-LD-80J051Ap/Dp 808nm 1000mW 고성능 NIR 레이저 다이오드 Φ9mm Package

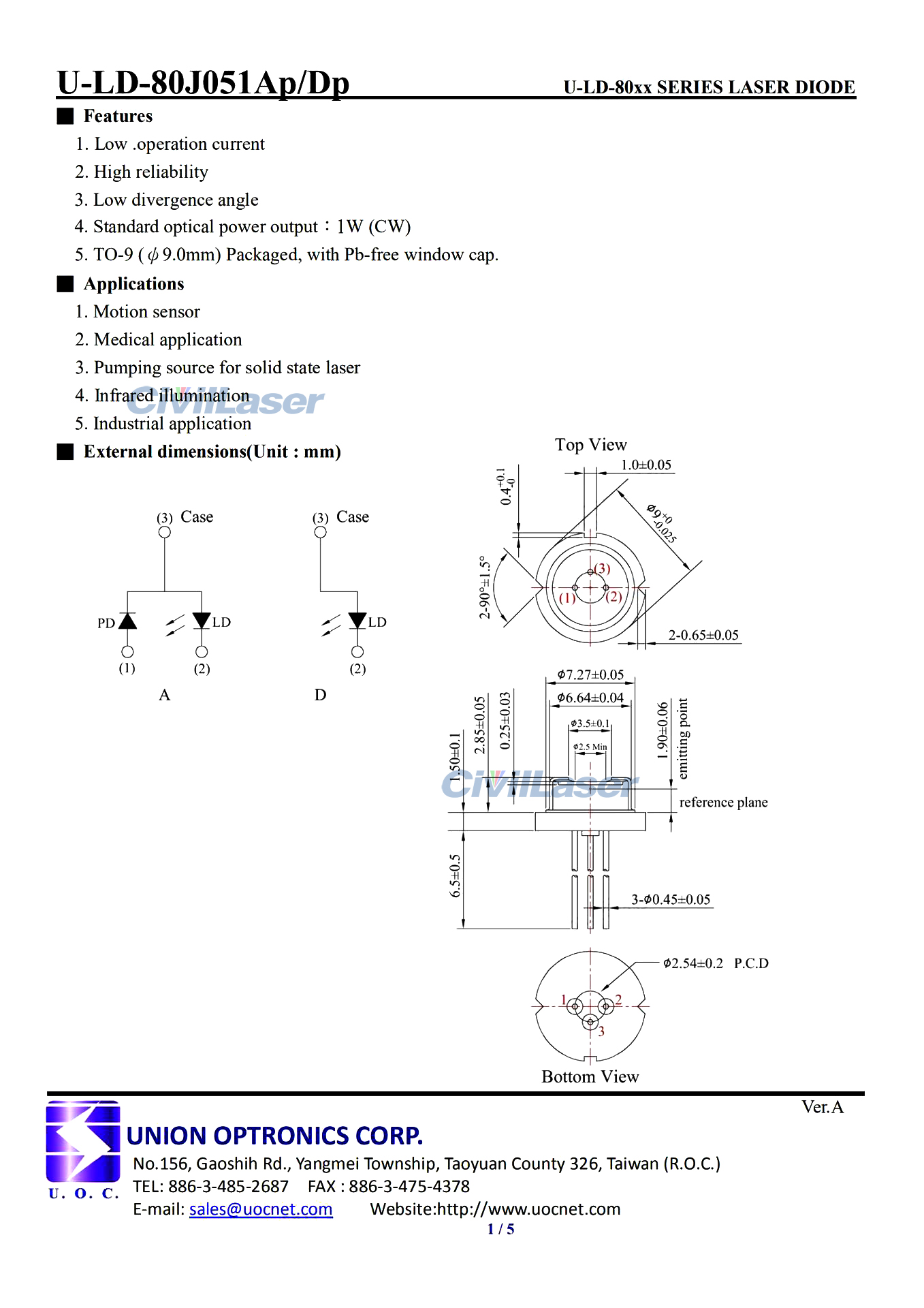

[특징]
1. Low operation current.
2. High reliability.
3. Low divergence angle.
4. Standard optical power output：1W (CW)
5. TO-9 (Φ9.0mm) Packaged, with Pb-free window cap.

[Applications]
1. Motion sensor
2. Medical application
3. Pumping source for solid state laser
4. Infrared illumination
5. Industrial application

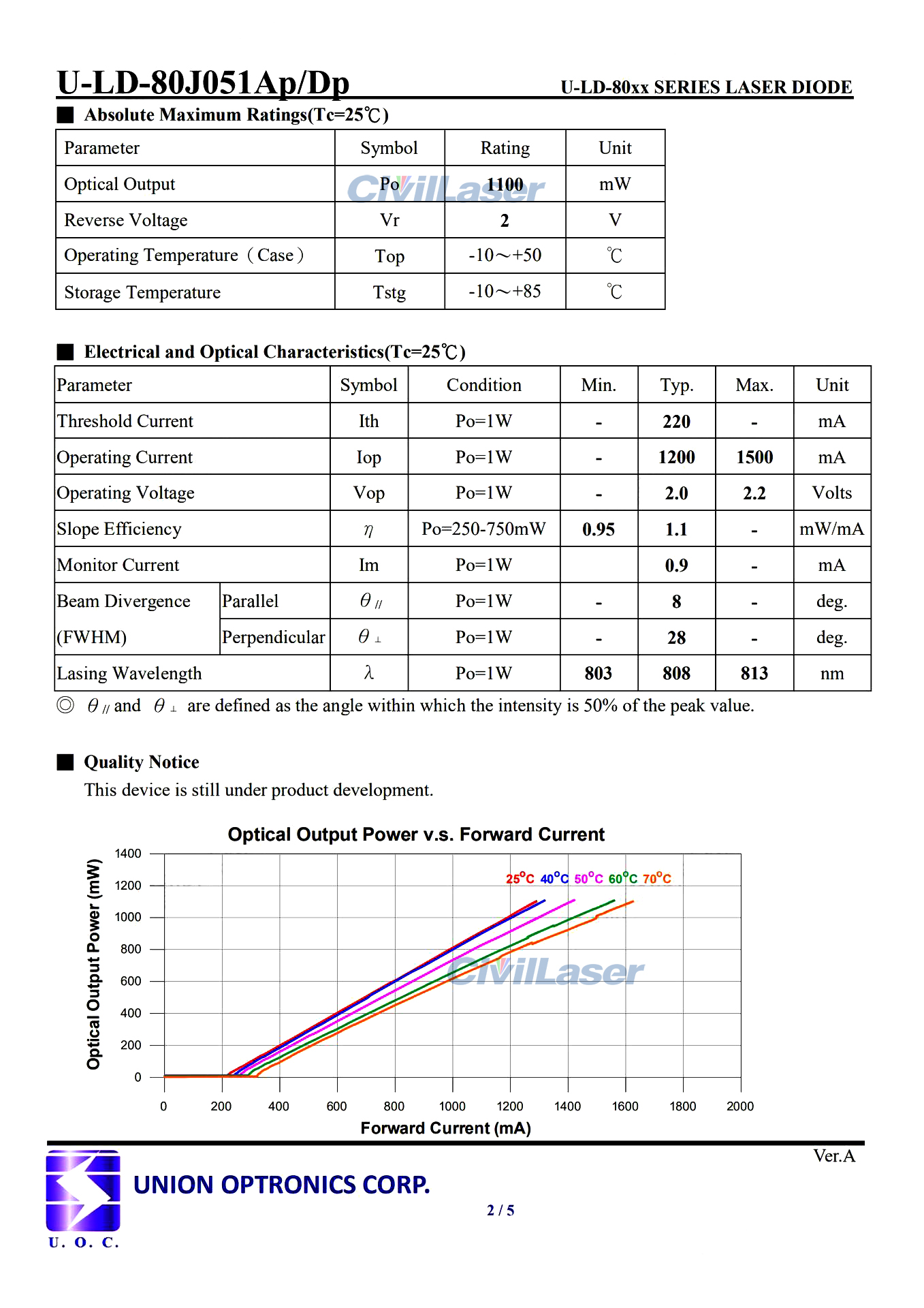

[Specification]
상품명: Laser diode
Model: U-LD-80J051Ap/Dp
파장: 808nm
출력 파워: 1000mW
Threshold Current: 220mA
작동 전류: 1200mA
작동 전압: 2V
Package: TO-9(Φ9mm)
작동 온도: -10~+50℃
보관 온도: -10~+85℃
