Union U-LD-85A060Ap 850nm 100mW Infrared 레이저 다이오드 TO18 5.6mm Package

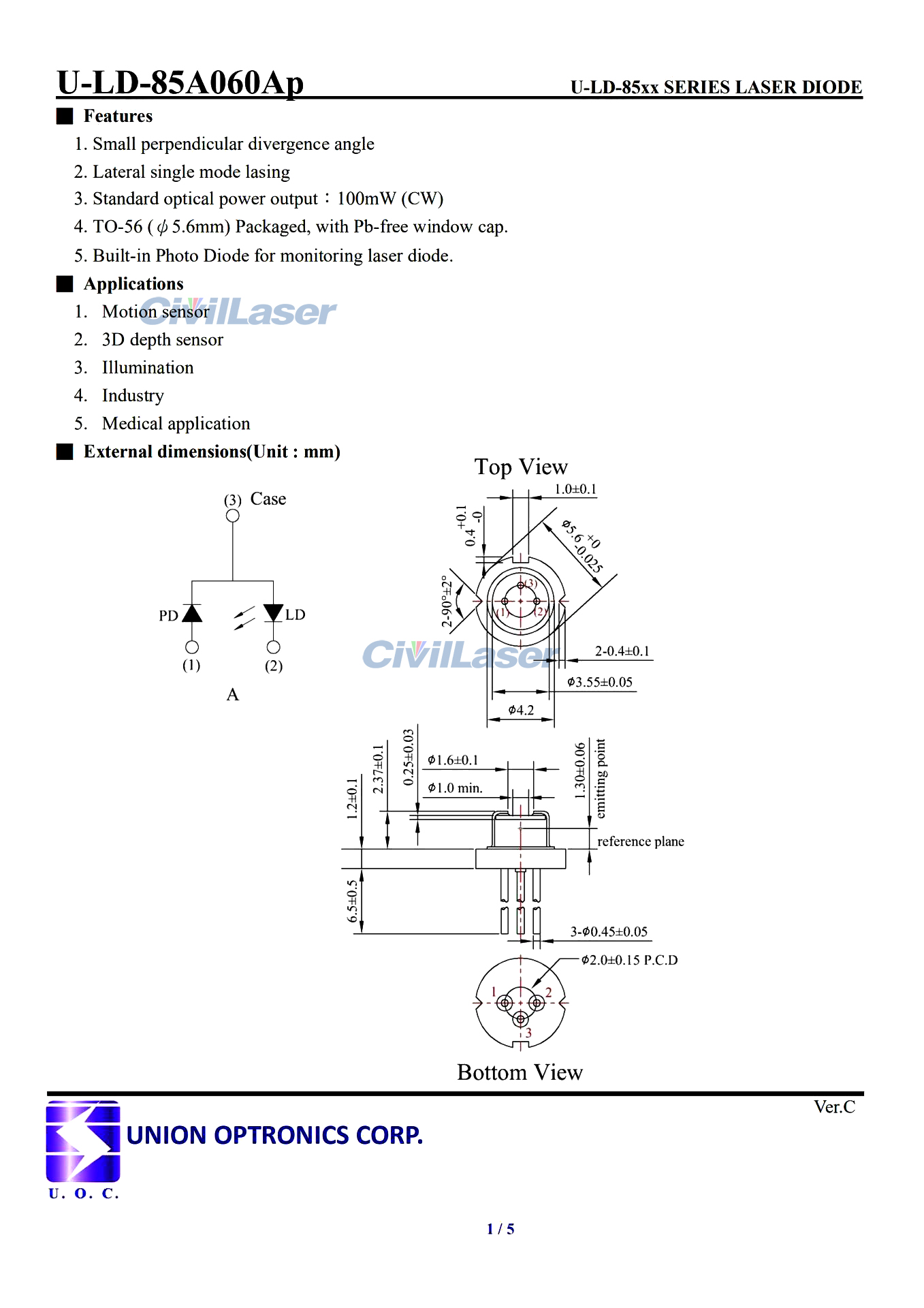

[특징]
1. Small perpendicular divergence angle.
2. Lateral single mode lasing.
3. Standard optical power output:100mW (CW)
4. TO-56 (Φ5.6mm) Packaged, with Pb-free window cap.
5. Built-in Photo Diode for monitoring laser diode.
[Applications]
1. Motion sensor
2. 3D depth sensor
3. Illumination
4. Industry
5. Medical application

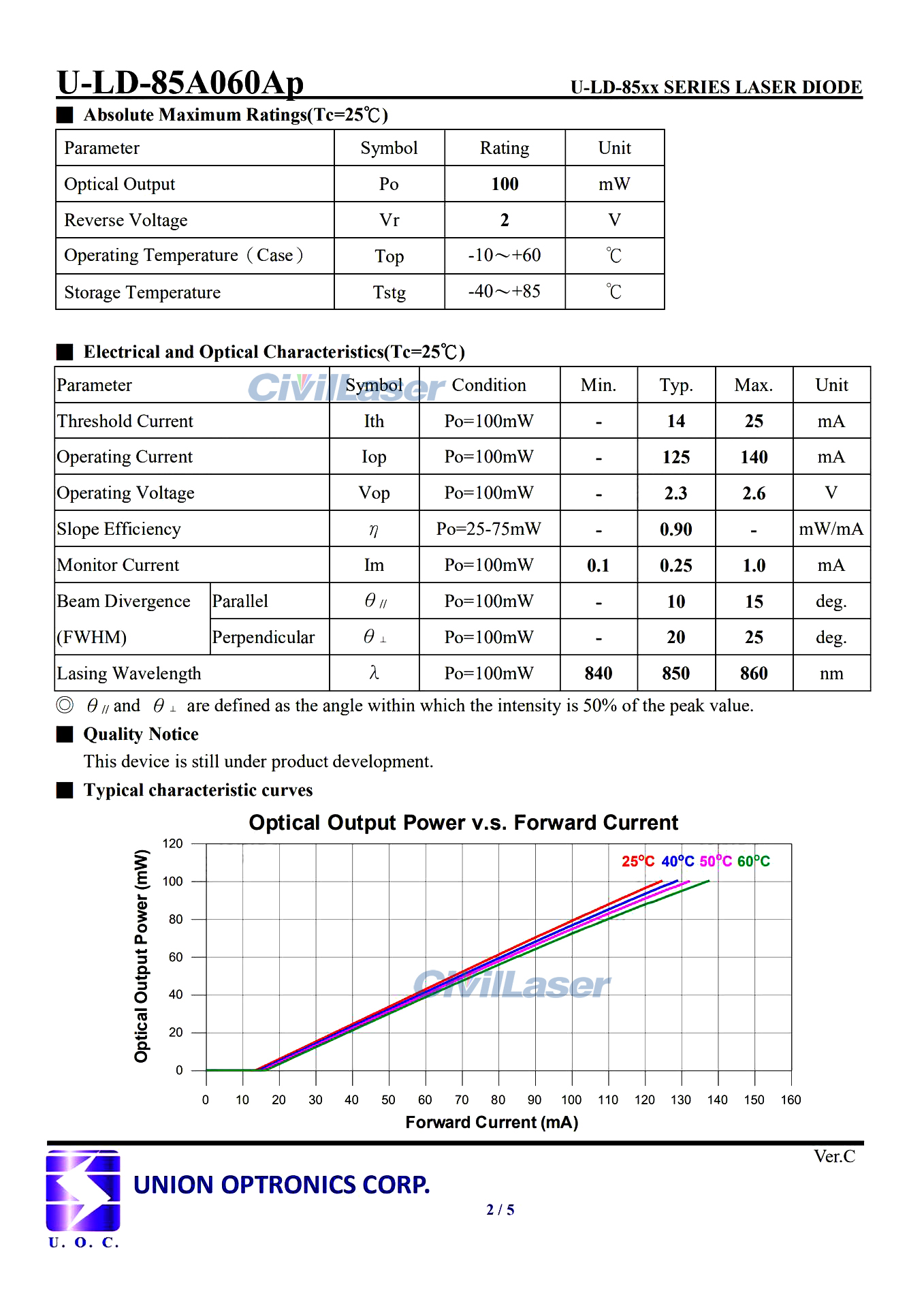

[Specification]
상품명: Laser diode
Model: U-LD-85A060Ap
파장: 850nm
출력 파워: 100mW
Threshold Current: 14mA
작동 전류: 125mA
작동 전압: 2.3V
Package: TO18(Φ5.6mm)
작동 온도: -10~+50℃
보관 온도: -40~+85℃
