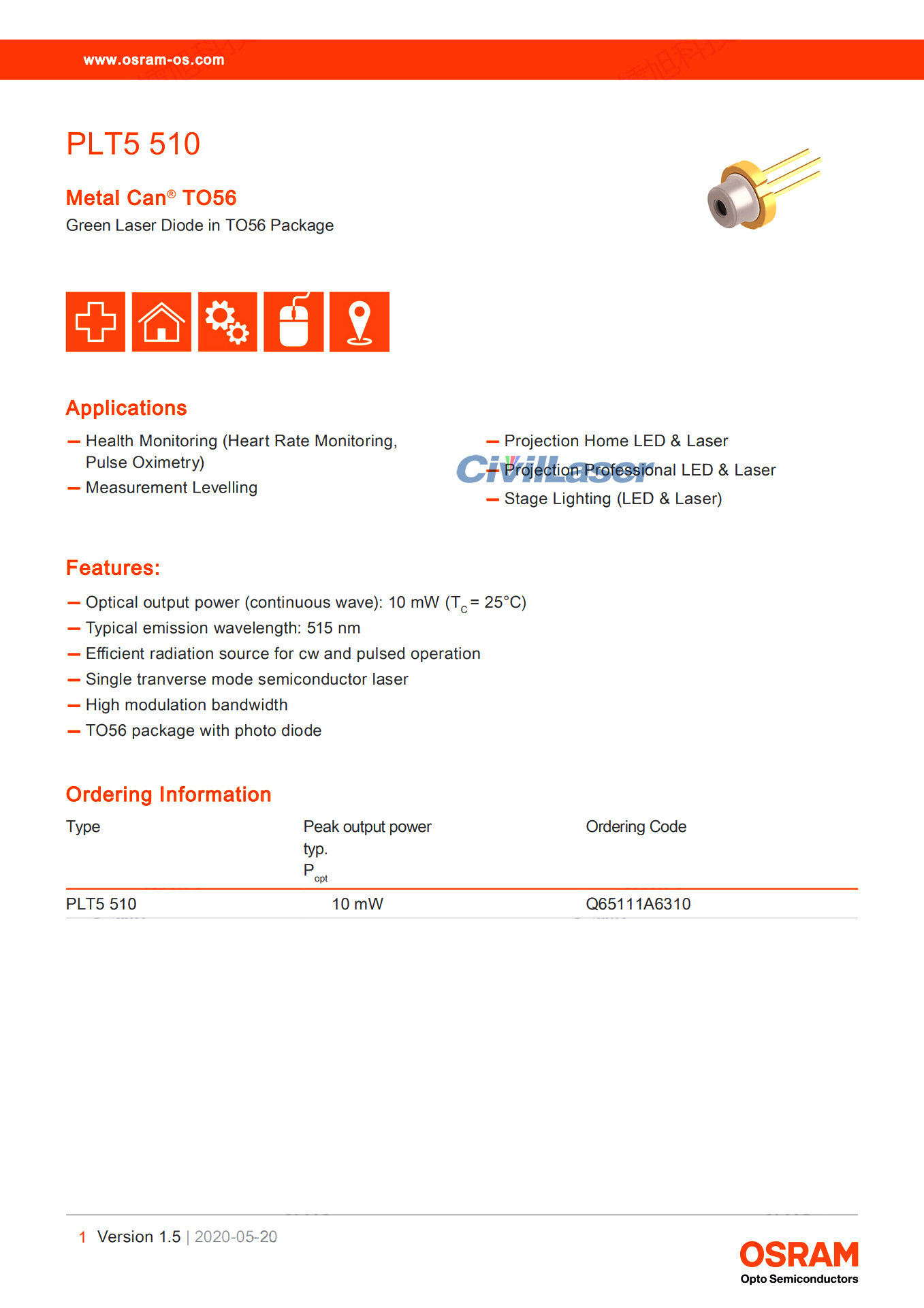

Osram PLT5 510 515nm 10mW 녹색 레이저 다이오드 TO56 Package

Osram PLT5 510 515nm 10mW 녹색 레이저 다이오드 TO56 Package

[특징]
1. Optical output power (continuous wave): 10 mW (Tcase = 25 °C)
2. Typical emission wavelength: 515 nm
3. Efficient radiation source for cw and pulsed operation
4. Single transverse mode semiconductor laser
5. High modulation bandwidth

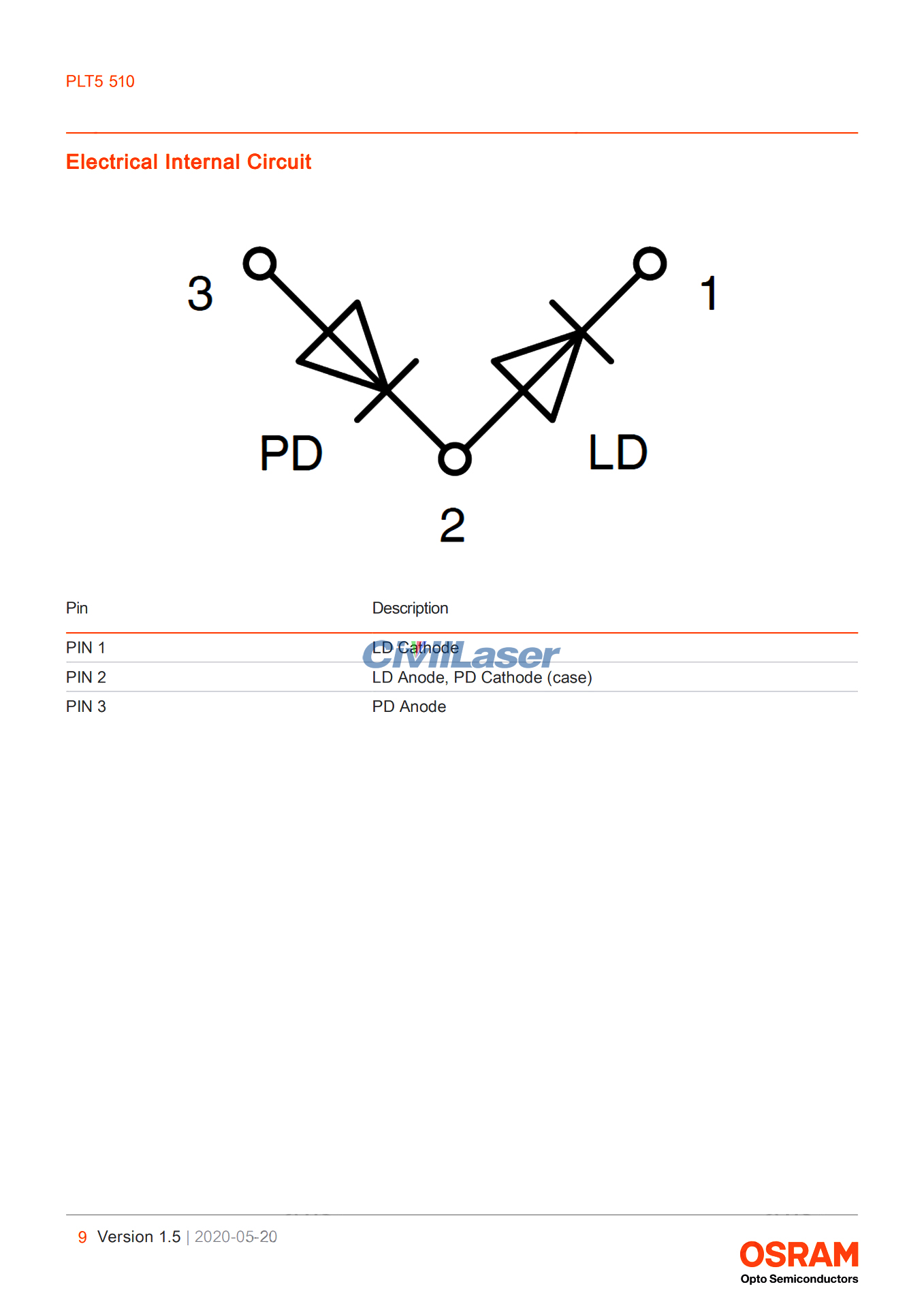

6. TO56 package with photo diode

[Applications]
1. Health Monitoring (Heart Rate Monitoring, Pulse Oximetry)
2. Measurement Levelling
3. Projection Home LED & Laser
4. Projection Professional LED & Laser
5. Stage Lighting (LED & Laser)

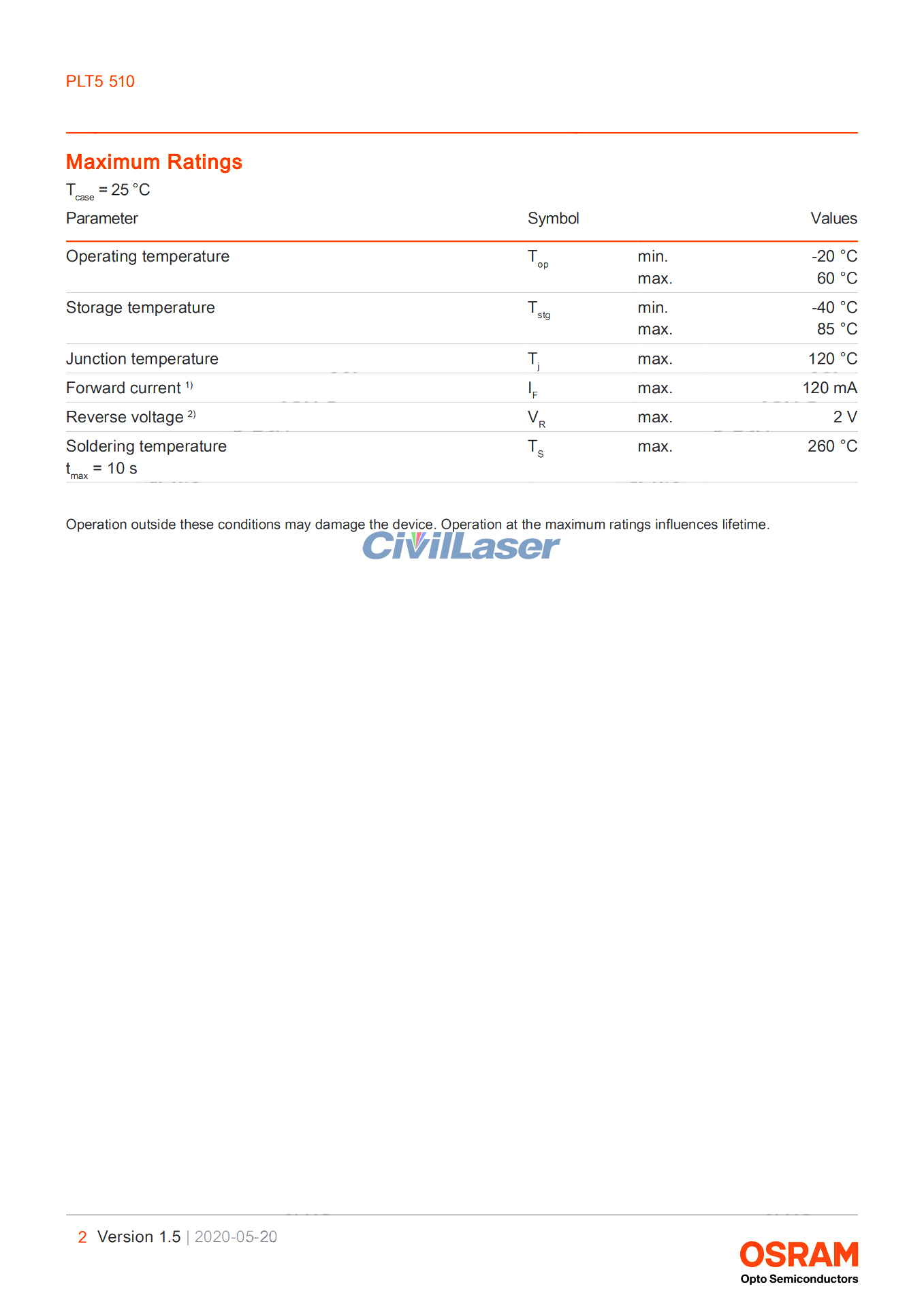

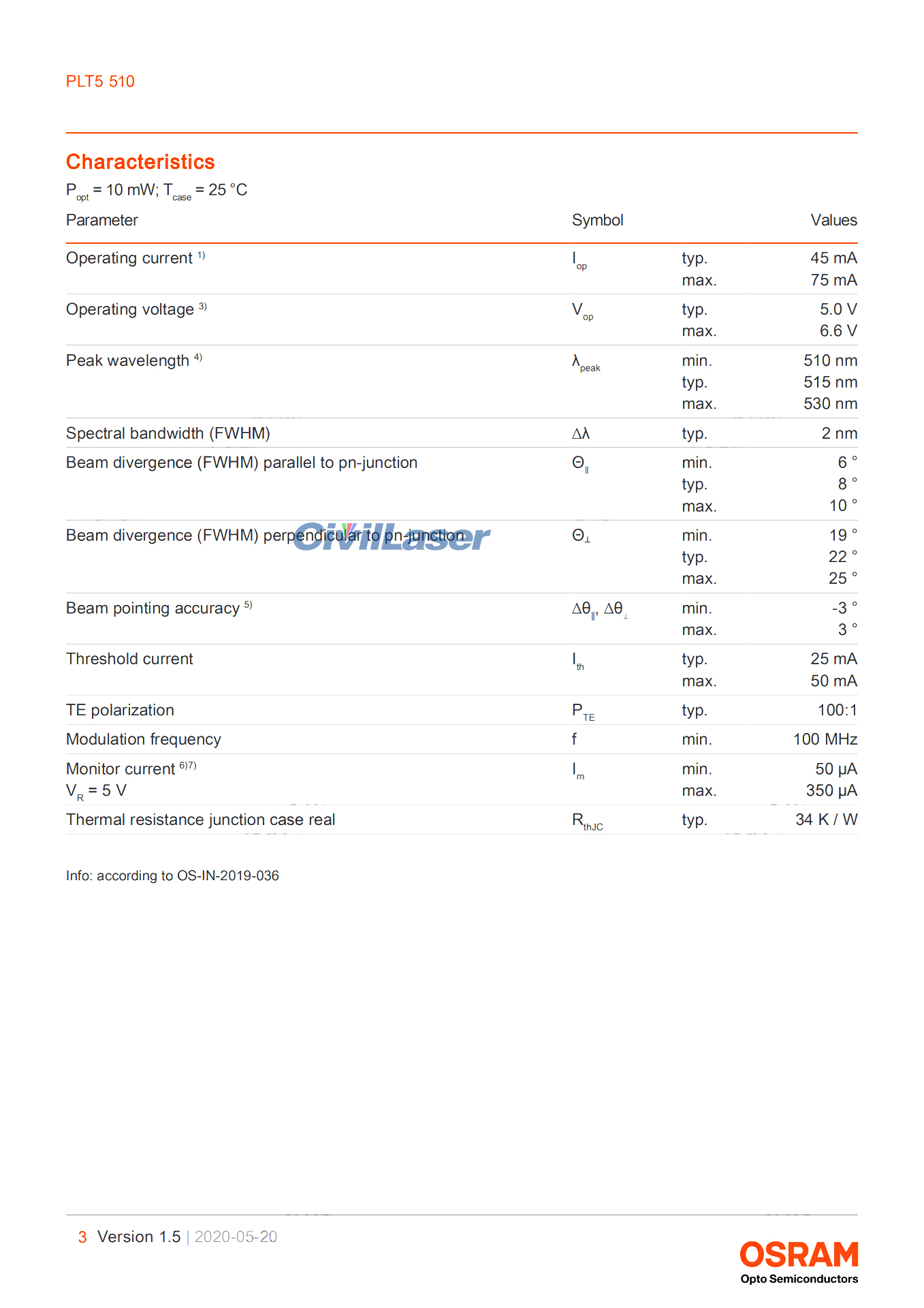

[Specification]
상품명: Laser diode
Model: PLT5 510
파장: 510nm
출력 파워: 10mW
Forward Current: 120mA
Threshold Current: 25mA
작동 전류: 45mA
작동 전압: 5V
Spectral Bandwidth: 2nm
Modulation Frequency: 100MHz

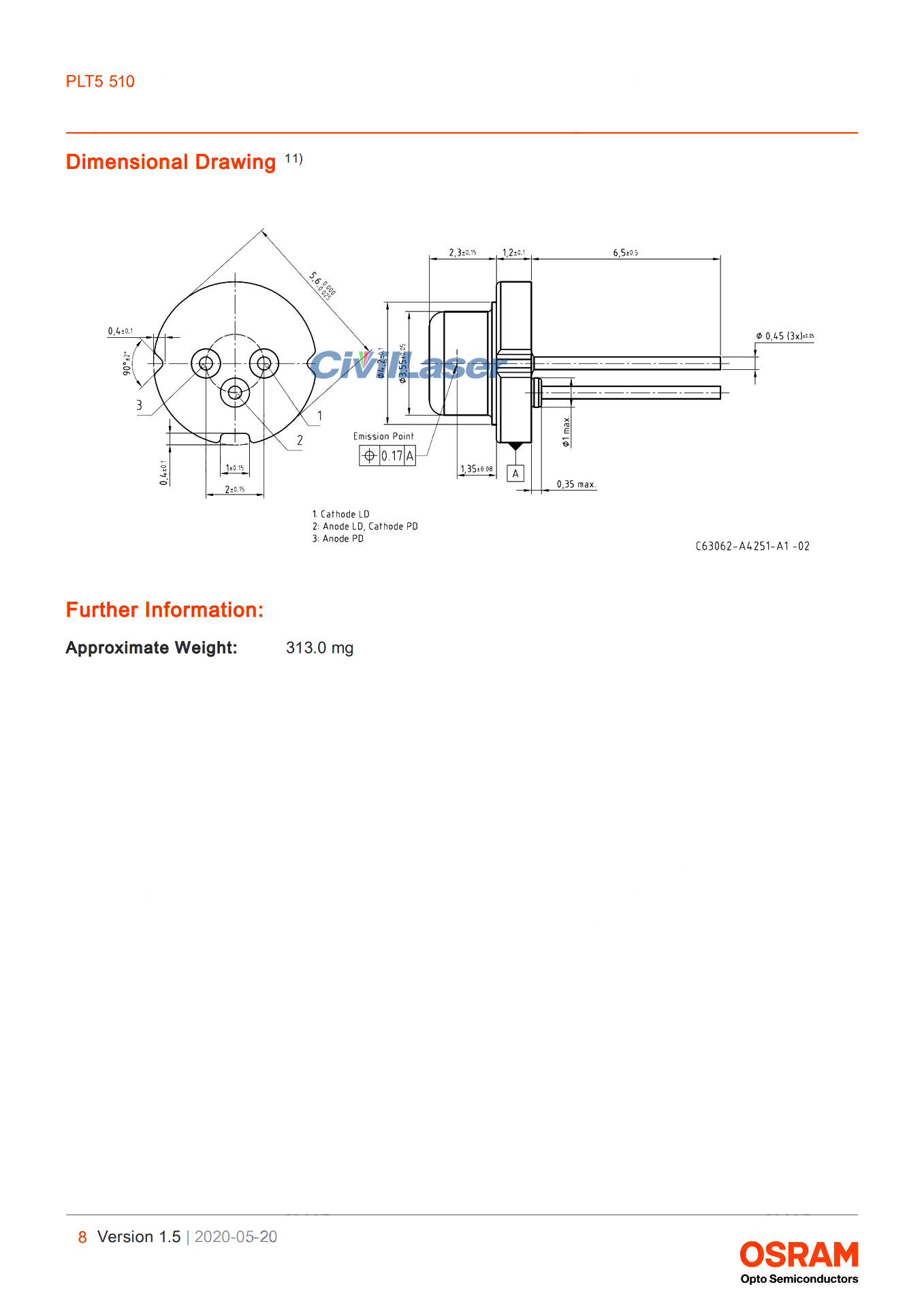

Package: TO56
작동 온도: -20~+60℃
보관 온도: -40~+85℃
