532nm 1~100uJ Adjustable Active Q-switched Laser Acousto-Optics Q-switched 레이저 시스템
All solid state acousto-optic Q-switched laser at 532 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.
[Specification]
| Parameters |
Value |
| Central wavelength (nm) |
532±1 |
| Operating mode |
Acousto-Optics Q-switched |
| Single pulse energy (µJ) |
1~100 (100μJ @1kHz; 50μJ @5kHz) |
| Rep. rate (kHz) |
0.1~50 |
| Pulse duration |
Typically5~10ns @<10kHz, varies from power and repetition. |
| Average power (mW) |
Average power (mW)= Single pulse energy (μJ)* Rep. rate(kHz) |
| Power Stability (rms,over 4 hours) |
~5% |
| Transverse mode |
Near TEM00 |
| M² factor |
<1.5 |
| 빔 직경 at the aperture 1/e² (mm) |
~1.2 (optional) |
~0.3 (Default) |
| Beam divergence, full angle (mrad) |
<1.5 (optional) |
<5.0 |
| Polarization ratio |
>100:1 Vertical l±5 degree |
| Warm-up Time (minutes) |
<10 |
| Beam height from base plate (mm) |
Near 25 |
| Operating temperature(℃) |
10~35 |

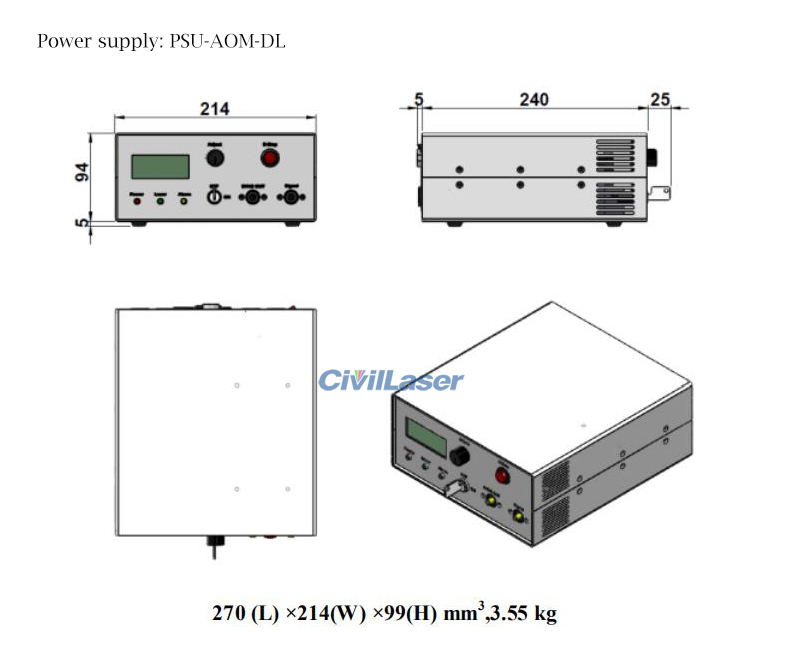

| Power supply (90-264VAC) |
PSU-AOM-DL |
| Expected lifetime (hours) |
10000 |
| Warranty |
1 year |

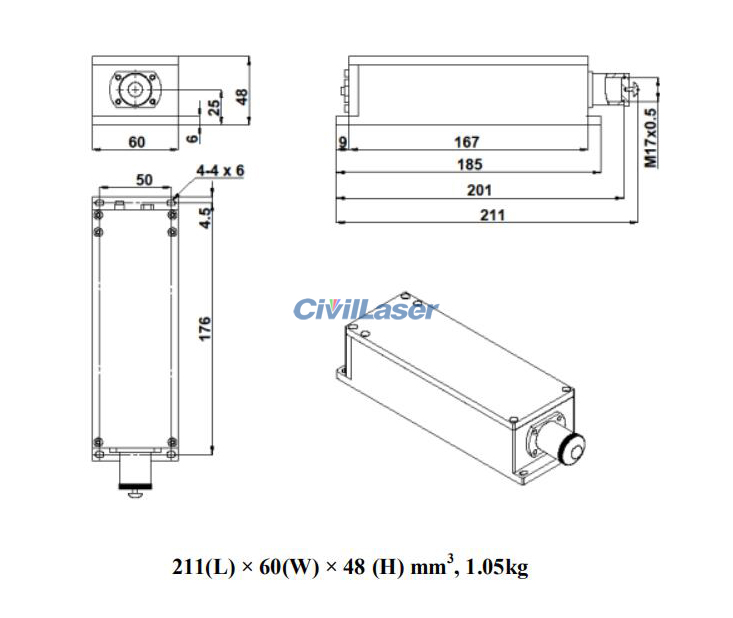

Note: The laser head needs to be used on a heat sink with good heat dissipation.
