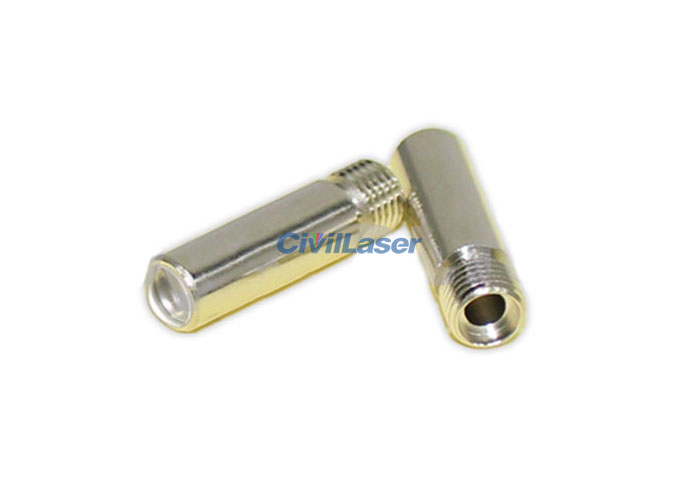

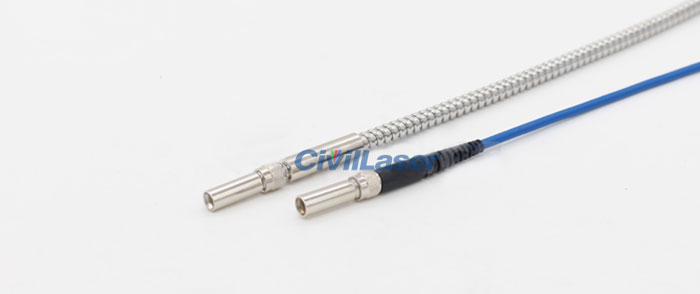

파이버 콜리메이터 185~2500nm Focusing Lens SMA905 Fiber Coupling Lens

파이버 콜리메이터 185~2500nm Focusing Lens SMA905 Fiber Coupling Lens

This product can be used for fiber collimation or coupling focusing. For collimation purposes, either single-mode or multi-mode fiber can be connected. If it is used for coupling and focusing, it can only be used with multimode fiber (numerical aperture 0.22~0.37NA, core diameter ≧100 microns).

This product is a single lens, UV fused silica, no coating on the spherical surface.

After the beam passes through the lens, the divergence angle does not exceed 2°. The field of view of the beam can be adjusted in UV-VIS or VIS-NIR applications. The field of view can be adjusted from convergence to divergence (~45°), and it can be connected to multimode fibers with multiple connectors, which is easy to use.

Technical Tips:
The beam divergence angle (α) obtained by this product using a single lens satisfies tan(α) = d/f. Among them, f lens focal length, d is the slit width or fiber diameter.
Be careful when adjusting the collimating lens, because the wrong focus of the lens will change the length of the sampling path.

Specification:
상품명: Fiber collimator
Model: 64-UV
Wavelength Range: 185~2500nm
Lens Diameter: 5mm
Lens Focal Length: 10mm
Connector: SMA905, outer diameter 6.35mm
Shell 재료: Nickel-plated copper
Dimensions: ∅6.35 x 23 mm
작동 온도: -40~150℃
