1030~1080nm 30mW ASE Broadband Light Source 1060nm Band SM 파이버 레이저 소스 ASE-1060-30-SM 데스크탑 유형
The ASE Broadband Light Source in the 1060nm band is based on ytterbium-doped fiber and diode pumped laser. The spectrum covers 1030~1080nm, and can also be extended to 1010nm and 1100nm bands. At the same time, it has high output power and good flatness. It can be used for optical fiber device testing, FBG grating production, etc.
[특징]
Spectrally flat
High stability output power
[응용 프로그램]
Optical fiber sensing
Medical Imaging
Optical fiber device testing
[명세서]
|
매개변수
|
Unit
|
일반적인 값
|
비고
|
|
Model
|
--
|
ASE-1060-30-SM
|
|
|

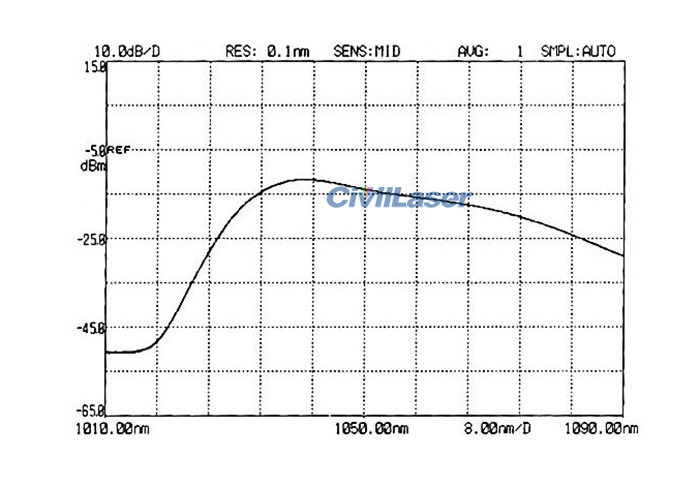

스펙트럼 범위
|
nm
|
1030~1080
|
50nm@10dB
Peak wavelength about 1040nm
|
|
Ouput Power
|
mW
|
30
|
|
|
Spectral Flatness
|
dB
|
10
|
|
|
출력 절연
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Degree of polarization DOP
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
Hi 1060 Single mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental 매개변수
|
데스크탑 유형
(Current product)
|
Module Type
|
|
Control Method
|
Button
|
RS232 Serial communication
(Only for power Tunable ASE)
|
|
Communication Interface
|
DB9 Female(Default not include,
only for power Tunable ASE )
|
DB9 Female
(Only for power Tunable ASE)
|
|
Power Supply
|
100~240V AC, <30W
|
5V DC, <15W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
