1x2 1064nm/1310nm/1550nm Three Ports PM Fiber Circulator Slow Axis Alignment
The polarization-maintaining optical circulator is a three-port polarization-maintaining optical fiber device for the directional transmission of optical signals. The biggest feature is that the optical signal can only be transmitted in a specific direction, and it has a great difference in reverse application. The device has a very wide range of applications in the field of optical fiber sensing and coherent detection.
[특징]
Low insertion loss
High return loss
[응용 프로그램]
Fiber optic equipment
Fiber Optic Sensor
Coherent detection
Research areas
[명세서]
| Parameter |
Unit |
일반적인 값 |
| Type |
|
Type A |
Type B |
| Center Wavelength |
nm |
1064 / 1310 / 1550 (선택하다) |
| Operating Bandwidth |
nm |
± 30 |
± 20 |
| Min.Isolation |
dB |
40 |
20 |
| Typical Isolation |
dB |
46 |
30 |
| Peak Isolation |
dB |
52 |
40 |
| Typical Insertion Loss |
dB |
0.7 |
0.6 |
| Max.Insertion Loss |
dB |
0.9 |
0.8 |
| Min.Return Loss |
dB |
55 |
55 |
| Min.Extinction Ratio |
dB |
22 |
20 |
| Min.Crosstalk |
dB |
50 |
| Max. Optical Power (CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Pigtail Type |
|
Panda type PM fiber |
| Operating Temperature |
°C |
-5~+70 |
| Storage Temperature |
°C |
-40 ~ +85 |

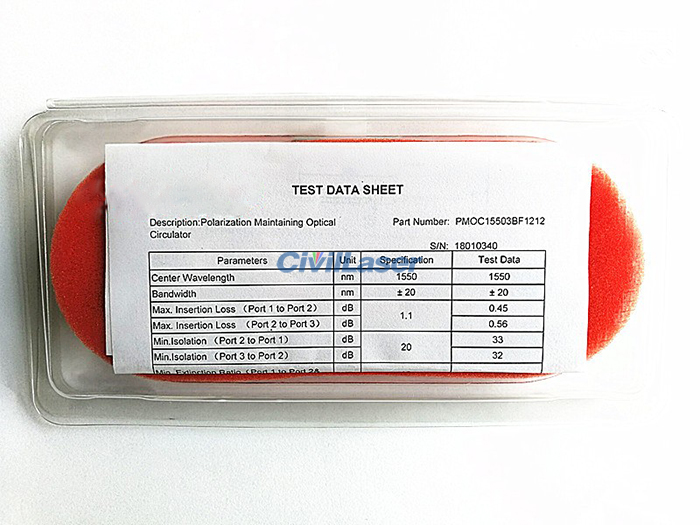

Test Data Sheet of 1550nm PM Circulator:
| Parameter |
Unit |
Specification |
Test Data |
| Center Wavelength |
nm |
1550 |
1550 |
| Bandwidth |
nm |
±20 |
±20 |
| Max.Insertion Loss (Port1 to Port2) |
dB |
1.1 |
0.45 |
| Max.Insertion Loss (Port2 to Port3) |
dB |
0.56 |
| Min.Isolation (Port2 to Port1) |
dB |
20 |
33 |
| Min.Isolation (Port3 to Port2) |
dB |
32 |
| Axis Alignment |
|
Slow axis |
| Fiber Type |
|
PM fiber |
| Connector Type |
|
FC/APC |
| Fiber Length |
m |
1.0 |
| Max. Optical Power (CW) |
mW |
500 |
| Operating Temperature |
°C |
-5~+70 |
| Storage Temperature |
°C |
-40 ~ +85 |
