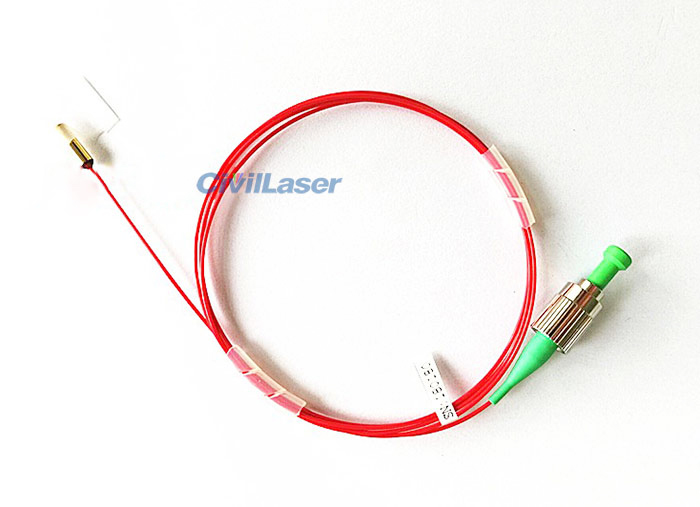

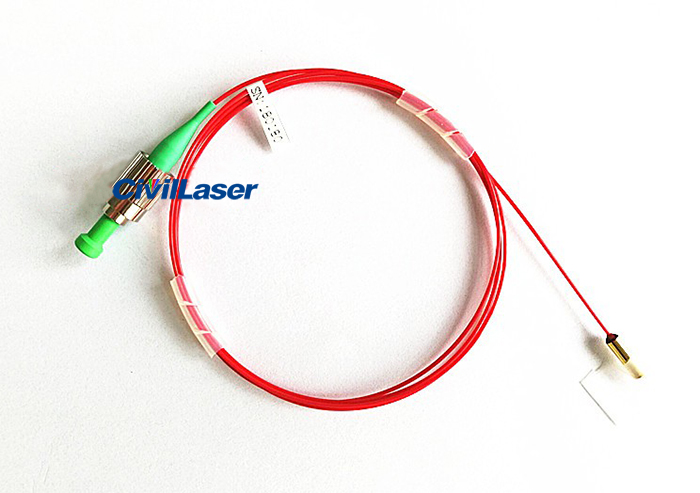

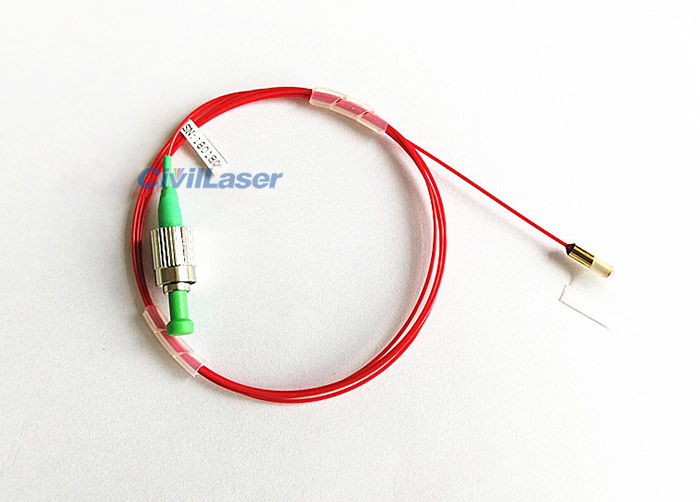

1064nm/1310nm/1480nm/1550nm PM Fiber Collimator FC/APC Optical Fiber Collimator
The polarization-maintaining light collimator transforms the polarization-maintaining light signal incident from the optical fiber into a spatially parallel output beam. CivilLaser's proprietary magnetic optics technology and advanced micro optics technology provide reliable guarantees in terms of power handling, insertion loss, reliability, and cost. It can provide customized fiber collimators with various wavelength ranges and various output beam diameters.
[특징]
High extinction ratio
Low insertion loss
High return loss
[응용 프로그램]
편광 유지 Device
Fiber Optic Sensor
Free space communication
Research field
[Speciication]
| Parameter |
Unit |
Value |
| Center Wavelength |
nm |
1064 / 1310 / 1480 / 1550 (선택하다) |
| Operating Bandwidth |
nm |
±30 |
| Operating Range |
mm |
5 |
| Typical Insertion Loss @L=5mm |
dB |
0.2 |
| Max.Insertion Loss @L=5mm |
dB |
0.25 |
| Min.Return Loss |
dB |
60 |
| Typical Extinction Ratio |
dB |
25 |
| Min.Extinction Ratio |
dB |
23 |
| Max. Optical Power |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Pigtail Type |
|
Panda type PM fiber |
| Operating Temperature |
°C |
-5~+70 |
| Storage Temperature |
°C |
-40 ~ +85 |
Test Data Sheet of 1064nm PM Fiber Collimator:
| 매개변수 |
Center Wavelength |
Insertion Loss |
Extinction Ratio |
Return Loss |
| Unit |
nm |
dB |
dB |
dB |
| Specification |
1064 |
≤0.60 |
≥21 |
≥55 |
| S/N |
|
|
|
|
| 180180 |
1064 |
0.328 |
22 |
57 |
| 빔 직경 |
200±10μm |
| Working Distance |
10mm |
| Fiber Type |
PM980 |
| Pigtail Type |
900μm loose tube (red) |
| Fiber Length |
1.0m |
| Connector Type |
FC/APC |
| Lens Type |
C-Lens |
| Max.Optical Power(CW) |
300mW |
| Package Dimension |
3.2 x 10 Metal holder |
