780nm PM Fiber Patch Cord 3mm Loose Tube FC/APC Optical Fiber

Product 10/14

 Previous
 Return to the Product List
 Next

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


780nm PM Fiber Patch Cord 3mm Loose Tube FC/APC Optical Fiber

[특징]
Accurate refractive index distribution
Good longitudinal uniformity
Excellent optical performance
High birefringence effect, good polarization maintaining performance.
Good bending stability, low attenuation.
High stability and reliability

[응용 프로그램]
Fiber laser
Fiber optic sensor
Test instrument

[사양]

매개변수 Unit Value
Center Wavelength nm 780
Max.Insertion Loss dB 0.50
Min.Extinction Ratio dB 22
Min.Return Loss dB 60
Alignment Type   Slow axis to the key
Connector Type   FC/APC-FC/APC
Fiber Type   PM850 fiber
Pigtail Type   3.0mm loose tube (blue)
Fiber Length m 6 / 10 / 20 (선택하다)
Max.Optical Power (CW) mW 300
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85

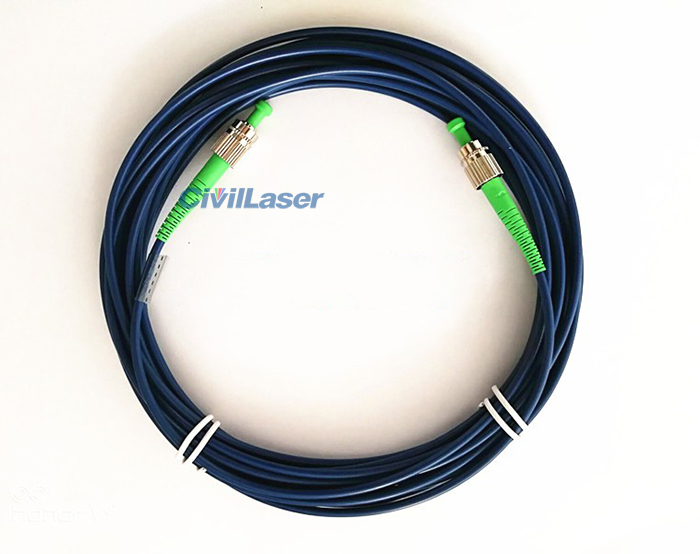

PM fiber patchcord

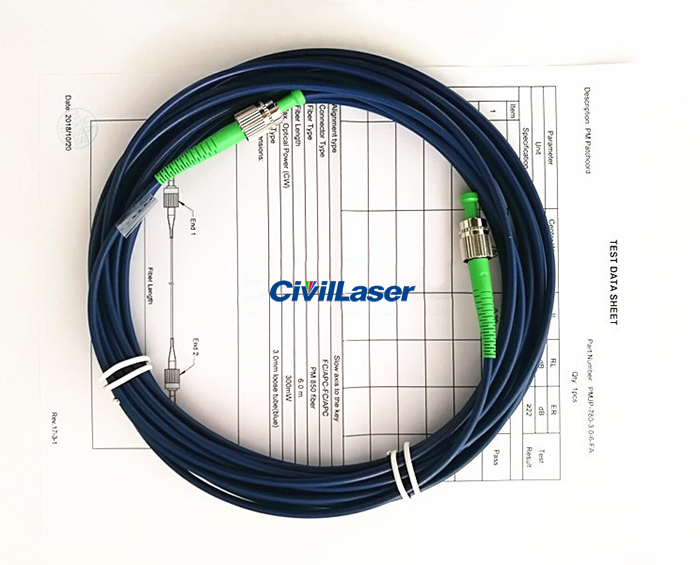

PM fiber patchcord

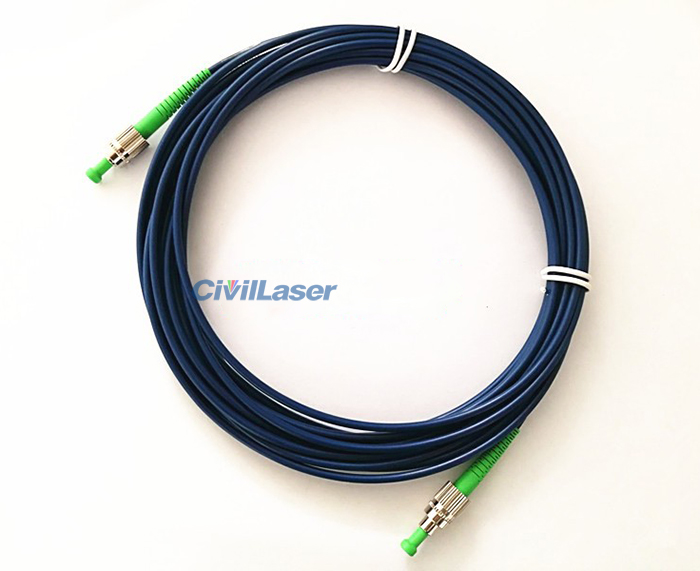

PM fiber patchcord

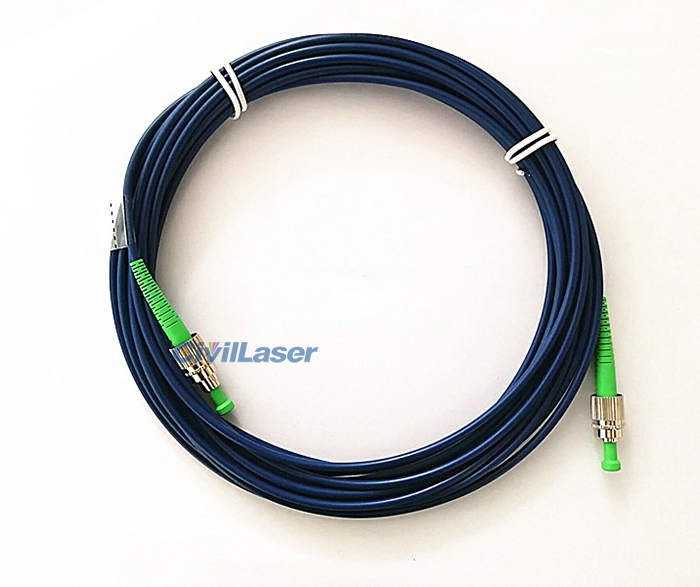

PM fiber patchcord
