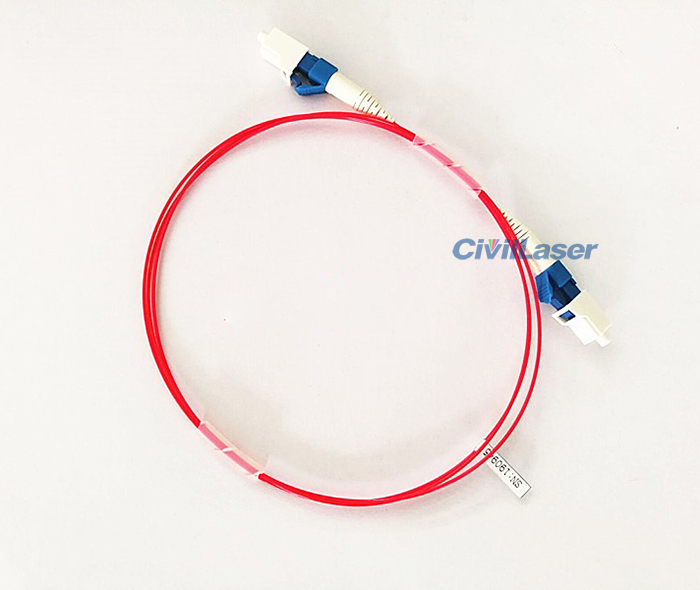

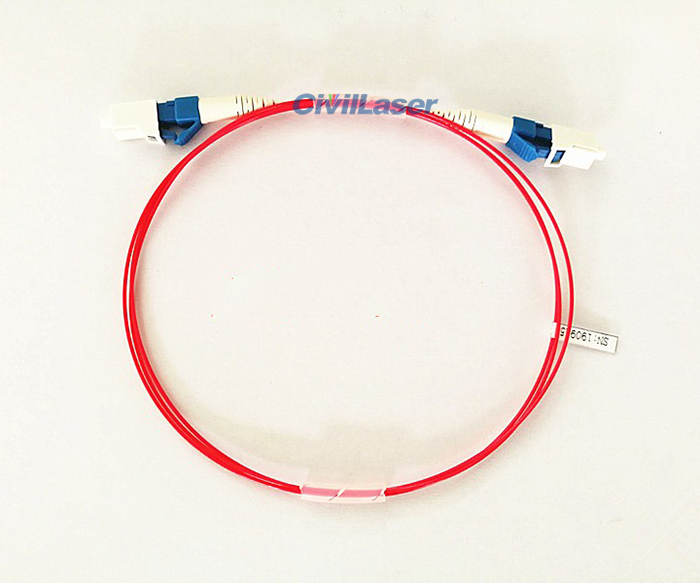

1310nm 1550nm PM Fiber Patch Cord 900μm Loose Tube LC/UPC Fiber
Polarization-maintaining optical fiber transmits linearly polarized light and is widely used in various fields of the national economy such as aerospace, aviation, navigation, industrial manufacturing technology, and communications. In the optical fiber sensor based on optical coherent detection, the use of polarization-maintaining fiber can improve the coherent signal-to-noise ratio to achieve high-precision measurement of physical quantities.
[특징]
Low insertion loss
High extinction ratio
High return loss
High stability and reliability
[응용 프로그램]
Fiber laser
Fiber Optic Sensor
Communication Systems
Test instrument
편광 유지 섬유 System

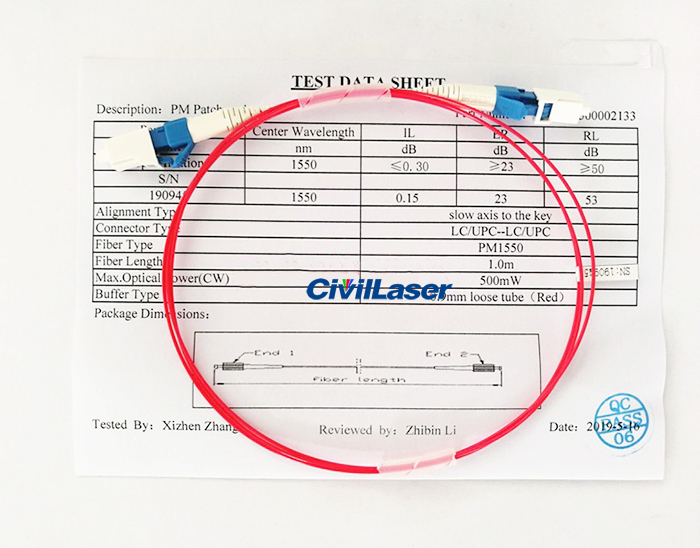

[사양]
| 매개변수 |
Unit |
Value |
| Center Wavelength |
nm |
1310 / 1550 (선택하다) |
| Max.Insertion Loss |
dB |
0.30 |
| Min.Extinction Ratio |
dB |
23 |
| Min.Return Loss |
dB |
50 |
| Alignment Type |
|
Slow axis to the key |
| Connector Type |
|
LC/UPC - LC/UPC |
| Fiber Type |
|
PM1310 / PM1550 fiber |
| Pigtail Type |
|
0.9mm loose tube (red) |
| Fiber Length |
m |
1.0 |
| Max.Optical Power (CW) |
mW |
500 |
| Operating Temperature |
℃ |
-20 ~ +70 |
| Storage Temperature |
℃ |
-40 ~ +85 |
