54.02° 레이저 다이오드 모듈 Filled circle Red/Green/Blue Laser Positioning Light

54.02° 레이저 다이오드 모듈 Filled circle Red/Green/Blue Laser Positioning Light

[특징]
1. Ultra high brightness, universal in indoor and outdoor.
2. The light is clear and bright, soft and not dazzling.
3. Spot size is adjustable.
4. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
5. Imported laser diodes emit light directly with exceptional stability.
6. Intelligent driver board with imported IC, wide range power supply.
7. High temperature resistance, corrosion resistance.

[명세서]
상품명: Laser Module
Laser Color: Red / Green / Blue (선택하다)
Wavelength: Red 650nm / Green 520nm / Blue 450nm (선택하다)
레이저 모양: Filled circle
Power: 100mW
Installation Height: 0~2 meters
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet (imported from Germany)
Lens Angle: 54.02°

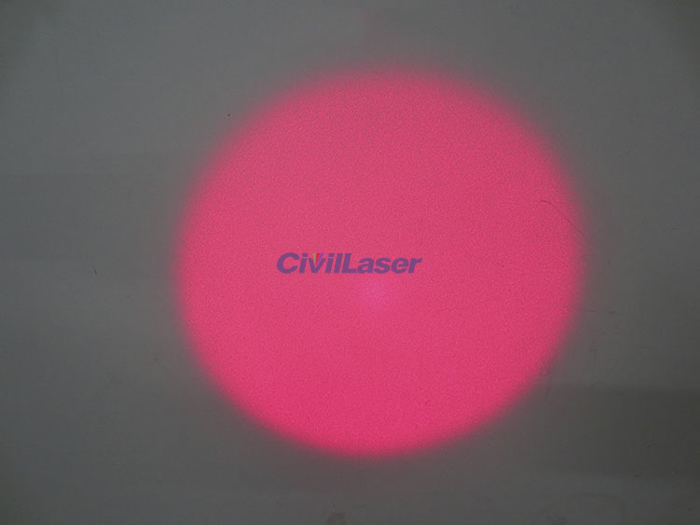

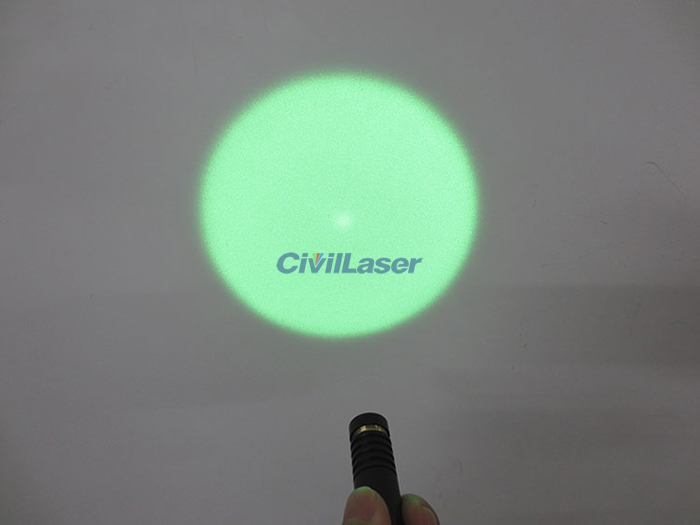

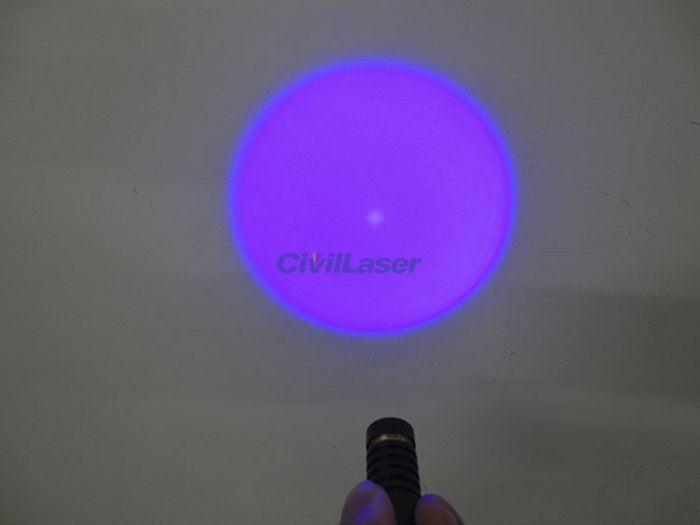

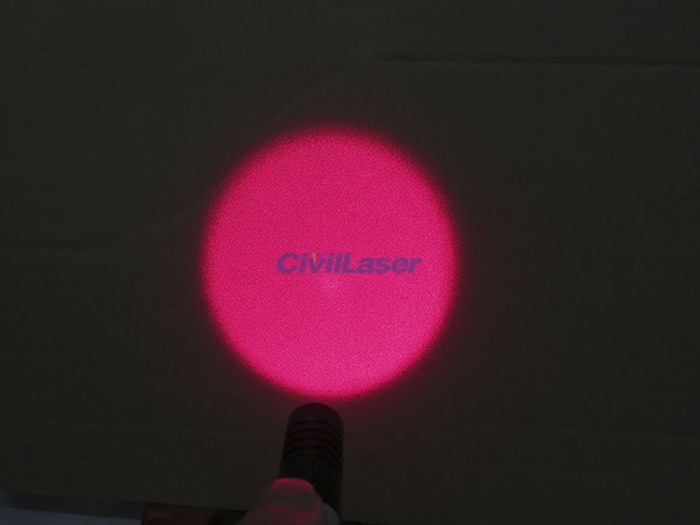

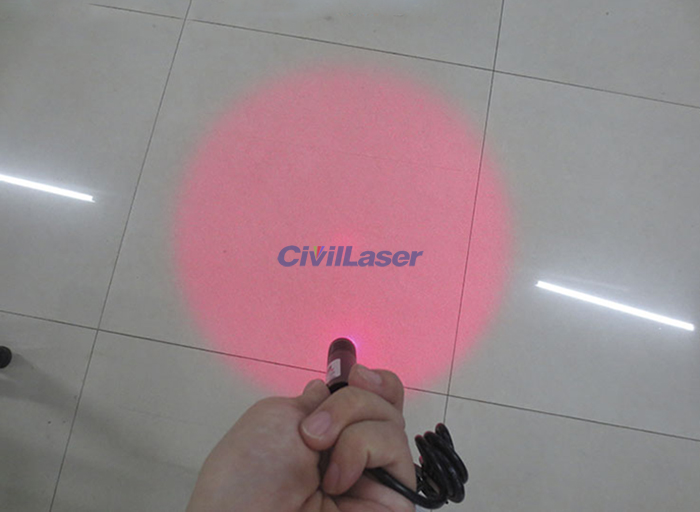

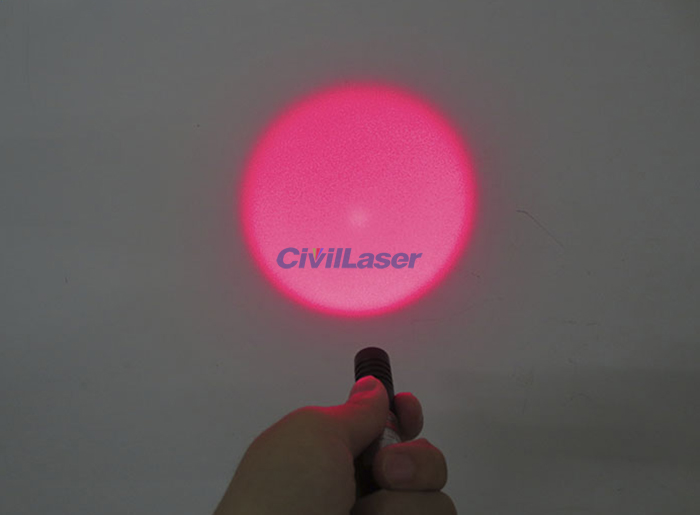

Circle Diameter:
At 0.25 meters, the diameter of the filled circle is 255 mm.
At 0.5 meters, the diameter of the filled circle is 510 mm.
At 1 meter, the diameter of the filled circle is 1020 mm.

[패키지 포함]
1 x Laser module
1 x 전원 공급 장치
1 x Laser module holder
