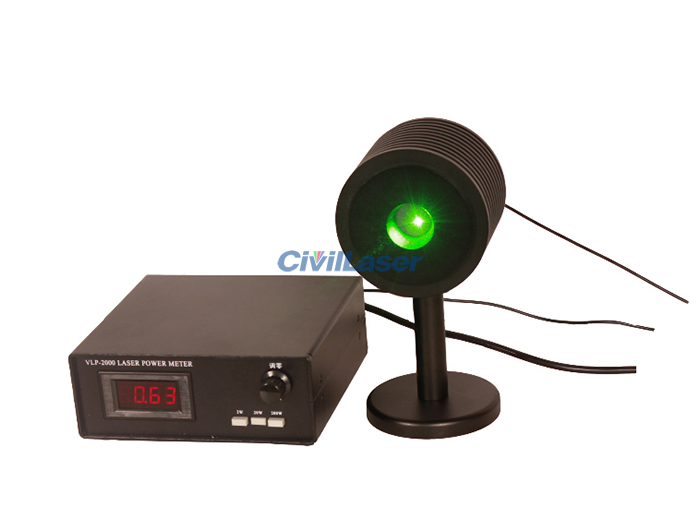

30mW~150W 11nm~19000nm Wide Wavelength Range 레이저 파워 미터 데스크탑 유형
Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.
Measuring Laser Type:
Fiber laser, 반도체 레이저, solid state laser, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.
[특징]
스펙트럼 범위: 11nm~19000nm
Damage threshold: 15KW/cm²
Detection diameter: 28mm
[사양]
매개변수 |
Value |
Model |
VLP-T2000-150W |
Wavelength Range |
11nm~19000nm |
Resolution |
<2W: 0.001W
2~20W: 0.01W
20~150W: 0.1W |

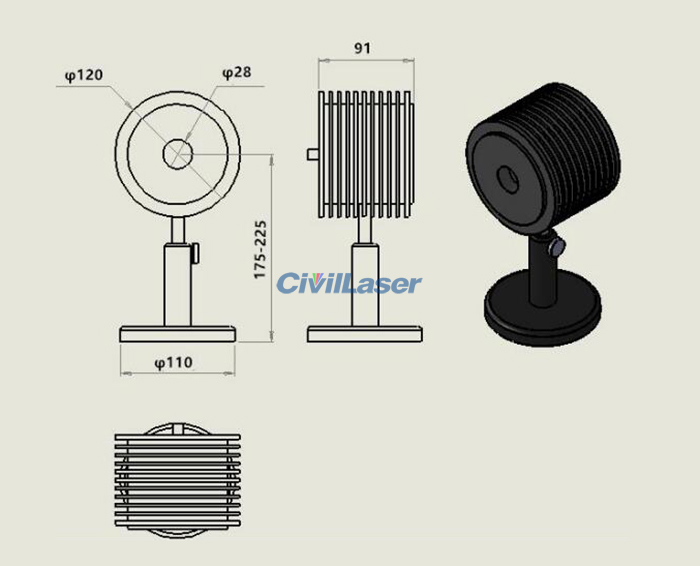

The Detector's Receiving Aperture Size |
Φ28mm |
Probe Type |
Calorimetry |
Signal Line Length |
1m |
Measuring Power Range |
30mW~150W |
Linearity |
±0.5% |
Measurement Uncertainty |
±5% |
Operating Temperature |
0 ~ 40 °C |
Cooling Mode |
Natural convection |
Power Adapter |
AC110 ~ 220V, 50HZ |
Power Dissipation |
10W |
Warranty |
1 year |
