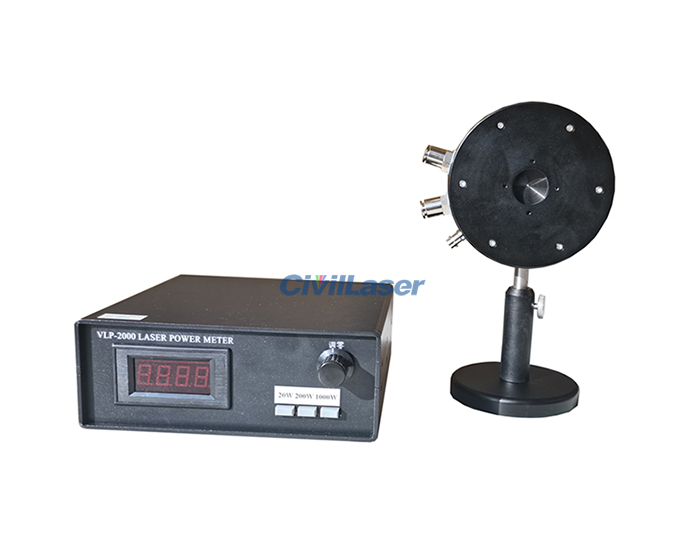

0.5~1000W 고출력 레이저 Power Meter 11~19000nm Full Wavelength Measurement
Our laser power meter has the characteristics of stable operation, accurate measurement, small size and long service life. Based on the calorimetric principle, it not only has the advantages of good optical uniformity, extremely insensitive to the influence of the laser polarization state and incident angle, etc., but also has a relatively high ability to resist laser damage.
Measuring Laser Type:
Fiber laser, 반도체 레이저, solid state laser, CO2 laser, CW laser, YAG, helium neon and infrared laser, etc.
[특징]
스펙트럼 범위: 11nm~19000nm
Damage threshold: 15KW/cm²

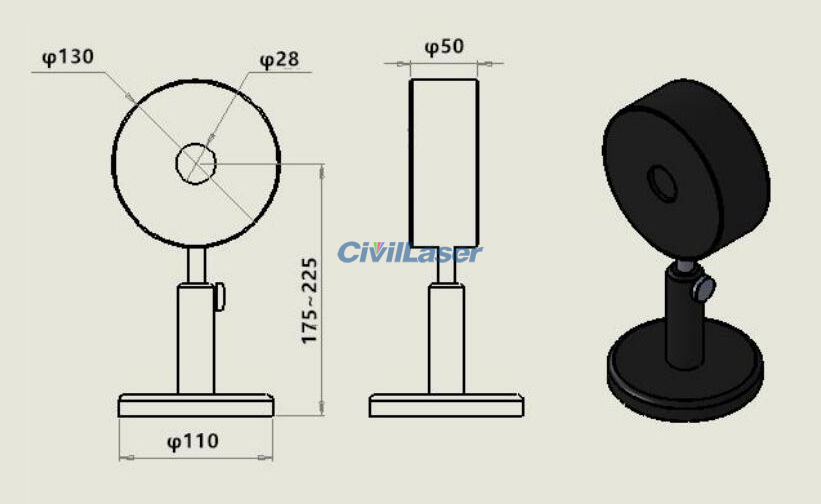

Detection diameter: 28mm
[사양]
매개변수 |
Value |
Model |
VLP-T2000-1000W |
Wavelength Range |
11nm~19000nm |
Detector Photosensitive Area |
Φ28mm |
Absorber |
Calorimetry |
Gear Switch |
20W, 200W, 1000W |
Resolution |
<20W: 10mW
20~200W: 100mW
200~1000W: 1W |
Measuring Power Range |
0.05 ~ 1000W |
Linearity |
±0.5% |
Measurement Uncertainty |
±5% |
Cooling Mode |
Water cooling (including water pump pipe) |
Power Adapter |
AC110 ~ 220V, 50HZ |
Operating Temperature |
0 ~ 45 °C |
Storage Temperature |
-40 ~ 70 °C |
Power Dissipation |
10W |
Warranty |
1 year |
