561nm 400mW Yellow Green LD 펌핑 고체 레이저

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:

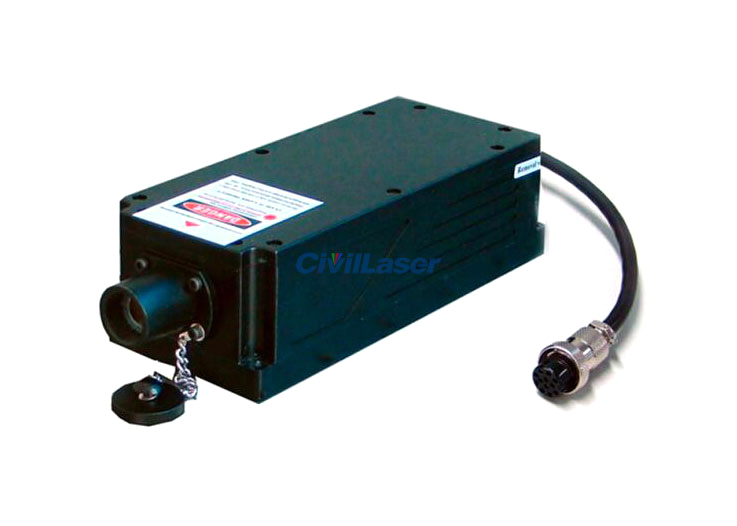

561nm 400mW Yellow Green LD Pumped Solid-state Laser

Low noise yellow green laser at 561nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.

[사양]

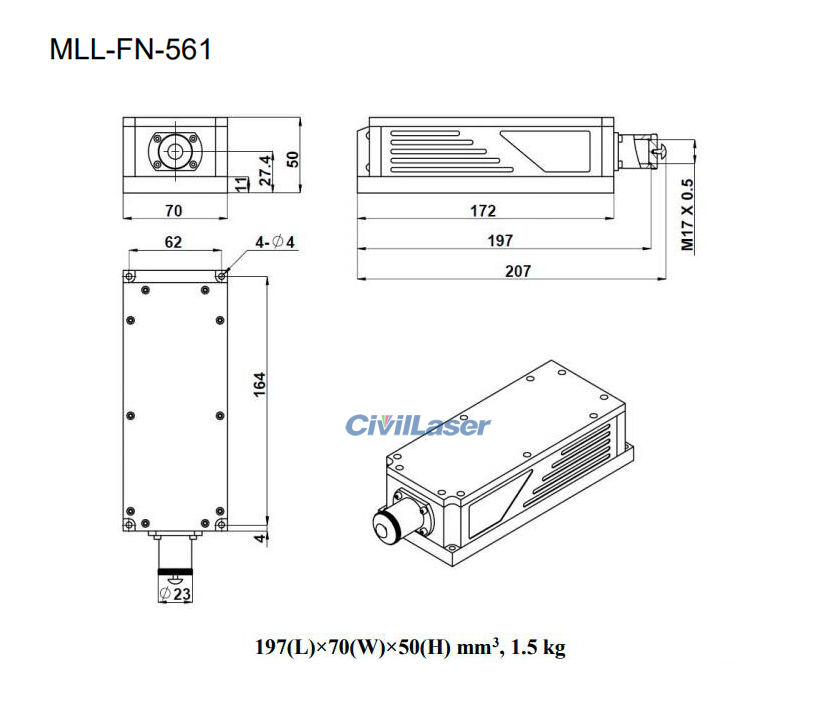

Model MLL-FN-561
파장(nm) 561±1
Operating mode CW
Output power (mW) 400mw
Power stability (rms, over 4 hours) <3%
Transverse mode Multi mode
M² factor <1.2
Modulation TTL / 1KHz
Noise of amplitude (rms, 20Hz~20MHz) <1%
Beam diameter at the aperture (1/e², mm) ~2.0
Beam divergence, full angle (mrad) <1.5
Polarization ratio >100:1 Vertical±5 degree (Horizontal Optional)
Warm-up time (minutes) <10
Pointing stability after warm-up (mrad) <0.05
Beam height from base plate (mm) Near 27.4
Operating temperature (℃) 10~35

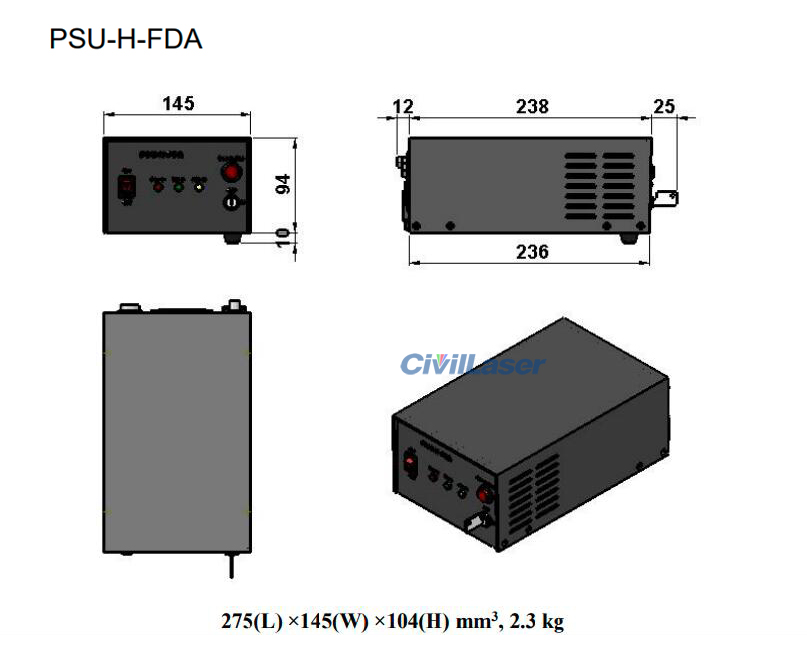

Power supply (90-264VAC) PSU-H-FDA
Expected lifetime (hours) 10000
Warranty 1 year
메모 The laser head needs to be used on a heat sink with good heat dissipation.
