SONY SLD3234VFI 405nm 65mw Blue Violet 레이저 다이오드 3.8mm

SONY  SLD3234VFI  405nm 65mw Blue Violet 레이저 다이오드  3.8mm

[명세서]

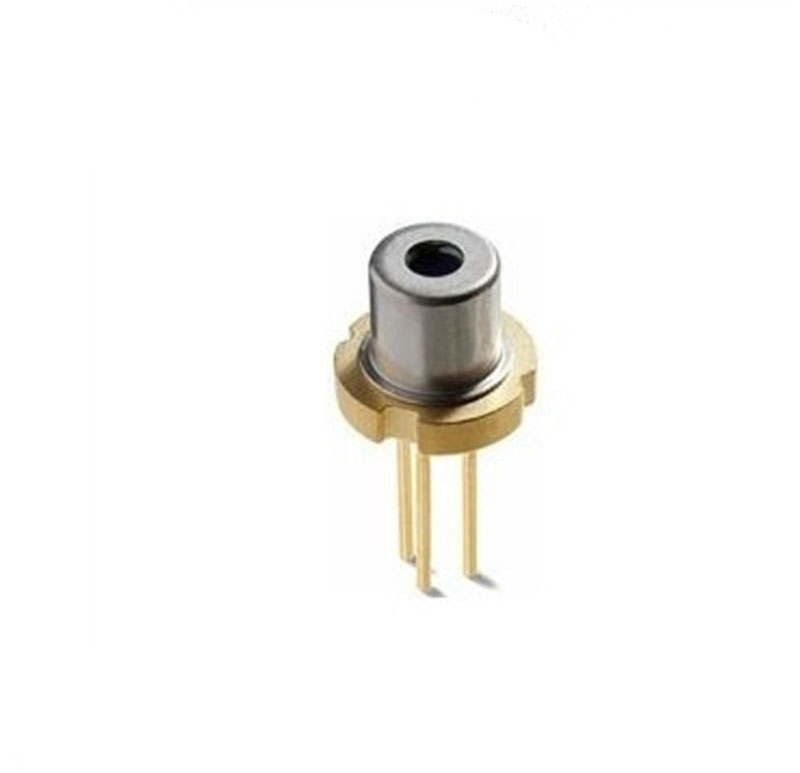

Product name: Sony 405nm laser diode
출력 파장: 405nm
출력 파워: CW 65mw (Pulsted Power: 170mW)
작동 전류: <110mA
작동 전압: DC 5V

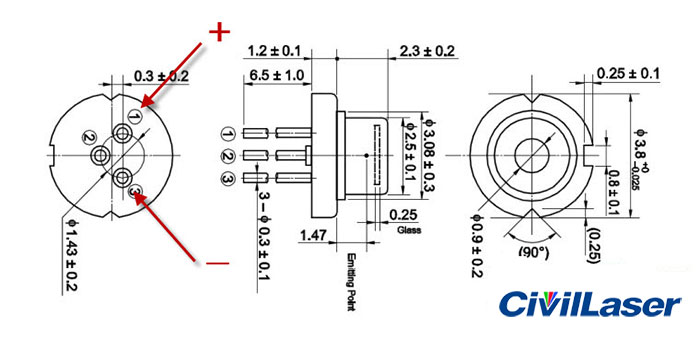

Package Type: 3.8mm
Working life: >10,000 hours
Place of production: Japan


[Note]
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.


This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
