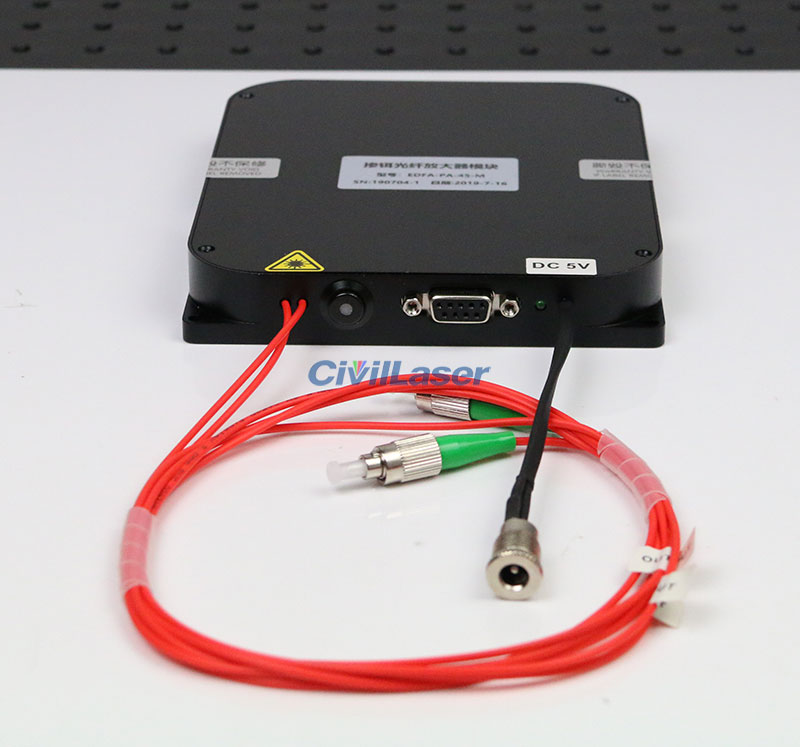

EDFA-C-PA-45-SM-M Erbium doped 광섬유 증폭기 C-Band 1530~1565nm 45dB Pre-Amplifier 모듈 유형

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:

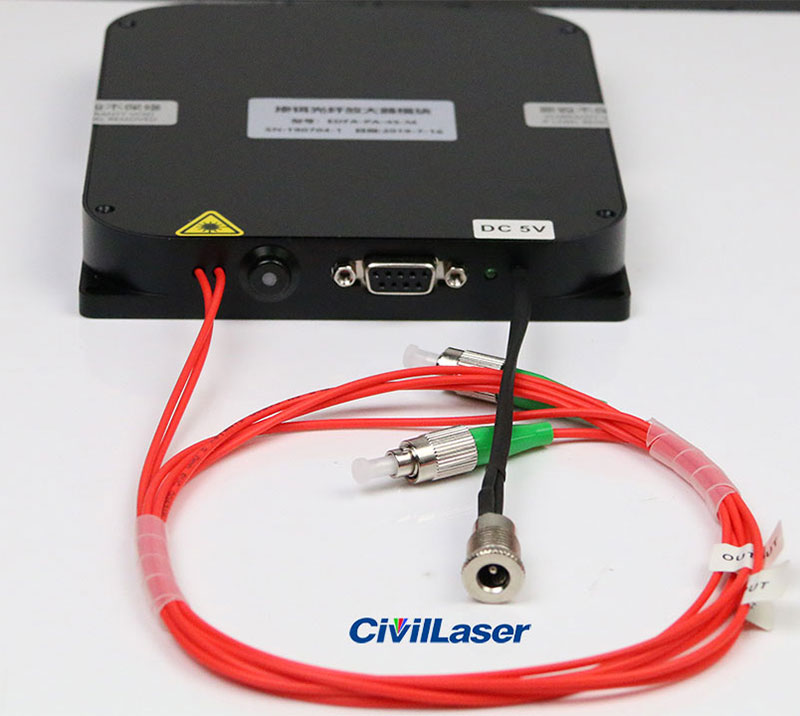

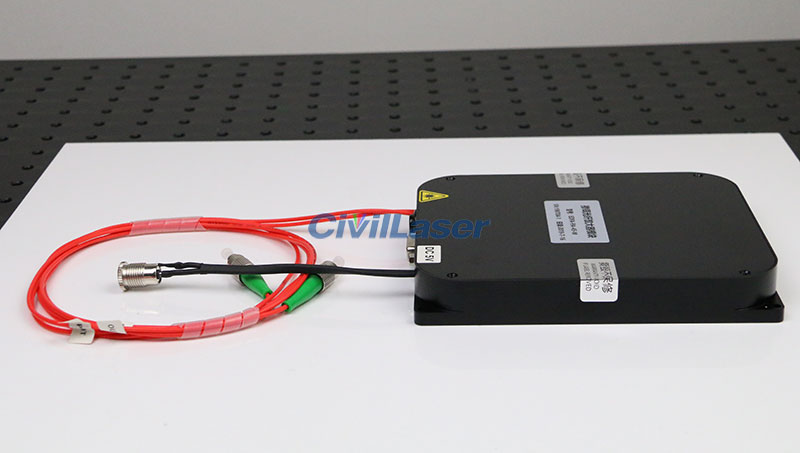

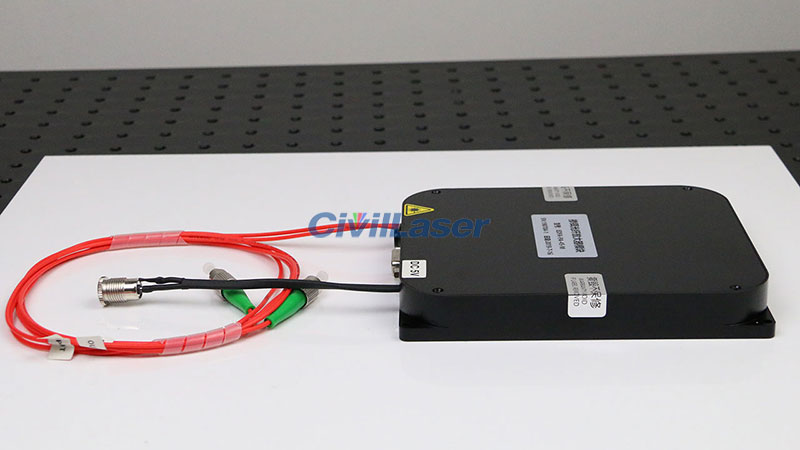

EDFA-C-PA-45-SM-M  Erbium doped 광섬유 증폭기 C-Band 1530~1565nm 45dB Pre-Amplifier 모듈 유형

Erbium doped 광섬유 증폭기 (EDFA) is a high performance, small size of the 광섬유 증폭기 products.
The internal use of stability high power 반도체 레이저, the high stability of WDM, isolator,
and high gain erbium-doped fiber.
The product has the advantages of high reliability, high power output, high gain and low noise.
This is the ideal choice of high power EDFA system, this product uses 5V DC power supply, compact size, easy to integrate in the system to meet the needs of customers.


There are two types EDFA.(Current product is Pre-Amplifier type.)
Pre - Amplifier, referred to as PA, that is preamplifier, used in the -45 ~ -25 dBm range of small light signal amplification, typical gain of 35 dB;
Booster - Amplifier, referred to as BA, is used to enhance the power of the optical signal in the range of - 6 ~ + 3 dBm, with a maximum output power of 27 dBm;

[특성]
high reliability
Wide operating wavelength range
High gain, gain flatness is good
High output power
Good temperature adaptability

[신청]
Optical fiber communication
Optical fiber sensor
Optical fiber laser


[명세서]

매개변수

Unit

일반적인 값

비고

Model

--

EDFA-PA-35

EDFA-PA-45

Current Product is EDFA-PA-45

Wavelength Range

nm

1530~1565nm

C-band

Input power

dBm

-35~-25

-45~-25



Small signal gain factor

dB

35

--

@-35dBm Input

Small signal gain factor

dB

--

45

@-45dBm Input

Noise index

dB

4.5

@-35dBm Input

Polarization dependent gain

dB

<0.3



Polarization mode dispersion

ps

0.5



Input/output isolation

dB

>35



Pigtail fiber type

--

SMF-28 Single Mode fiber



Pigtail connector type

--

FC/APC



Work mode

--

ACC

Automatic current control





Electrical and environmental 매개변수

데스크탑 유형

Module Type
(Current product)

Control method

Button

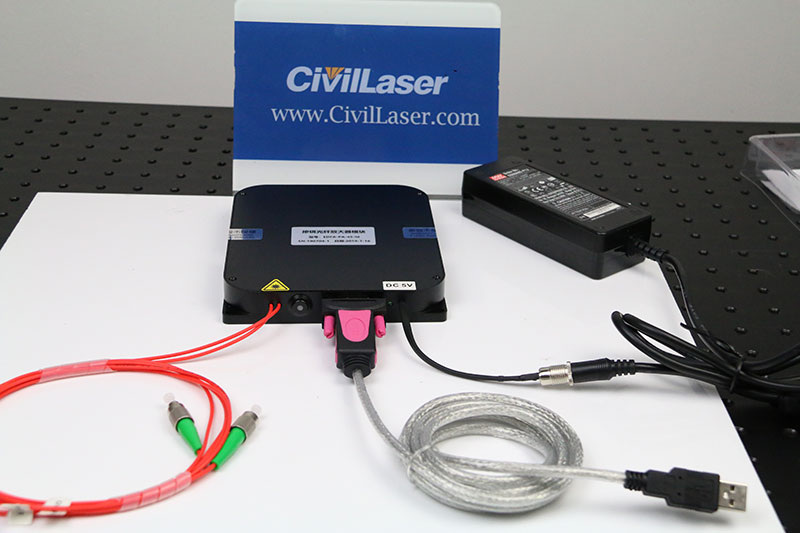

RS232 Serial communication

Communication interface

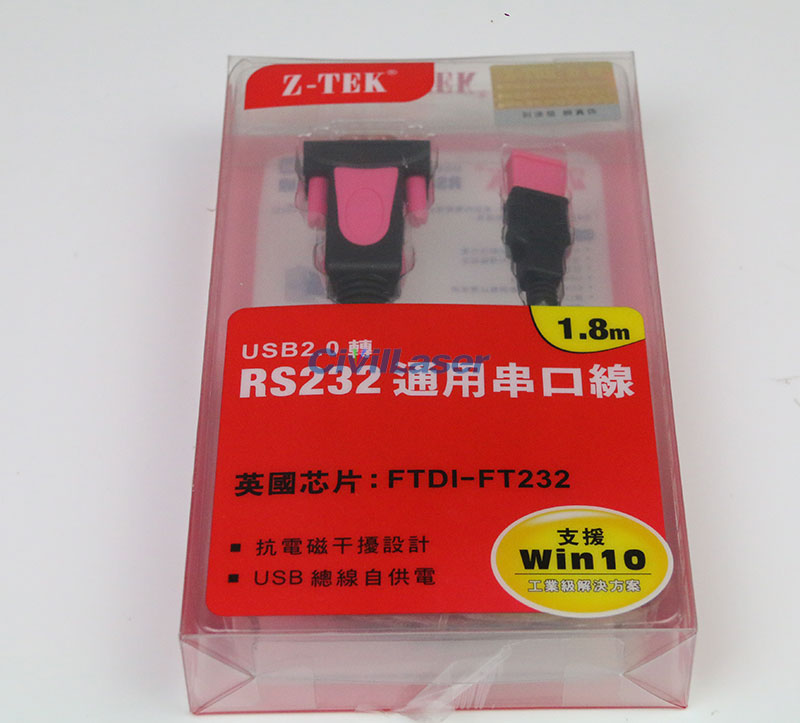

DB9 Female(Default not include)

DB9 Female

Power supply

100~240V AC, <30W

5V DC, <15W

Size

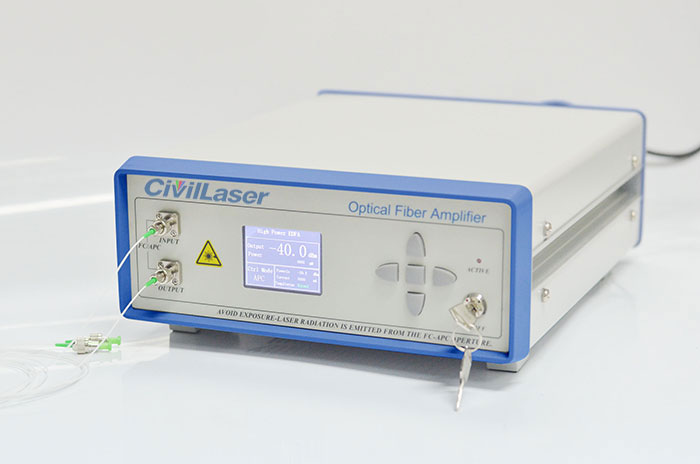

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating temperature range

-5~+35°C

Operating humidity range

0~70%







Erbium-doped 광섬유 증폭기 EDFA

Erbium-doped 광섬유 증폭기 EDFA

Erbium-doped 광섬유 증폭기 EDFA



EDFA fiber amplifier

EDFA fiber amplifier

EDFA fiber amplifier

EDFA fiber amplifier

EDFA fiber amplifier

EDFA fiber amplifier

EDFA fiber amplifier



메모:

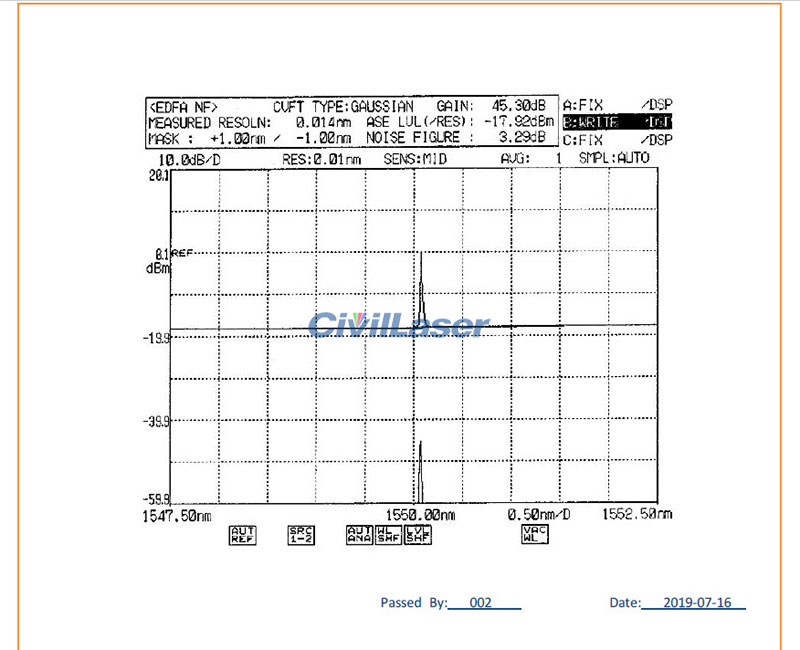

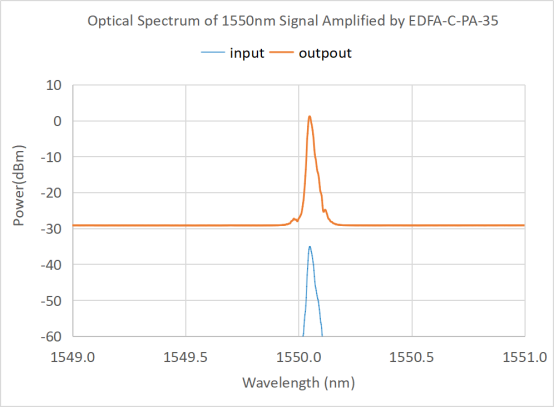

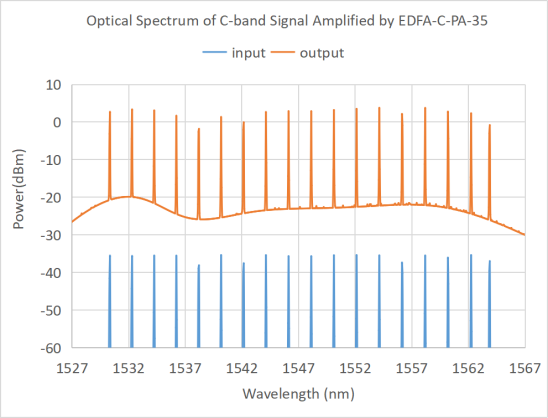

*메모 1: This EDFA product is designed for single wavelength signal input within the operating wavelength range, regardless of the gain spectrum flatness when multiple wavelengths are input simultaneously. As shown on this page, the EDFA-C-PA-35 small signal amplifier can achieve high gain amplification for input signals of different wavelengths in the C-band (multiple wavelengths are not simultaneously input to the EDFA in the figure), and the input power of a single wavelength is -35dBm , the effective gain is greater than 35dB, and the amplified signal-to-background noise ratio is greater than 30dB.
