Nichia NDB7A75 445nm/448nm/450nm 3.5W 3500mW blue high power laser diode T05 9mm

Nichia NDB7A75 445nm/448nm/450nm 3.5W 3500mW blue high power laser diode T05 9mm

[명세서]
Product name: Nichia NDB7A75 448nm 3.5w blue laser diode
출력 파장: 445nm~450nm
Central wavelength: 448nm
출력 파워: 3.5W
Pulse Power: >7W
Place of production: Japan
작동 전류: 3A
작동 전압: 3.7V~5.2V
작동 온도: 0℃~60℃
보관 온도: -40℃~85℃

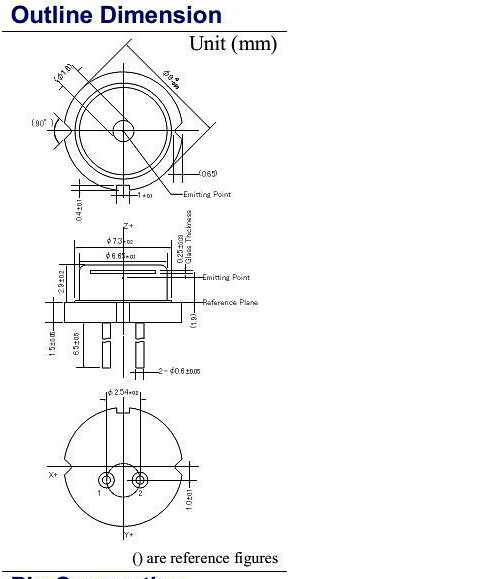

Package Type: T05( Φ9mm)


[Note]
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.

This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
