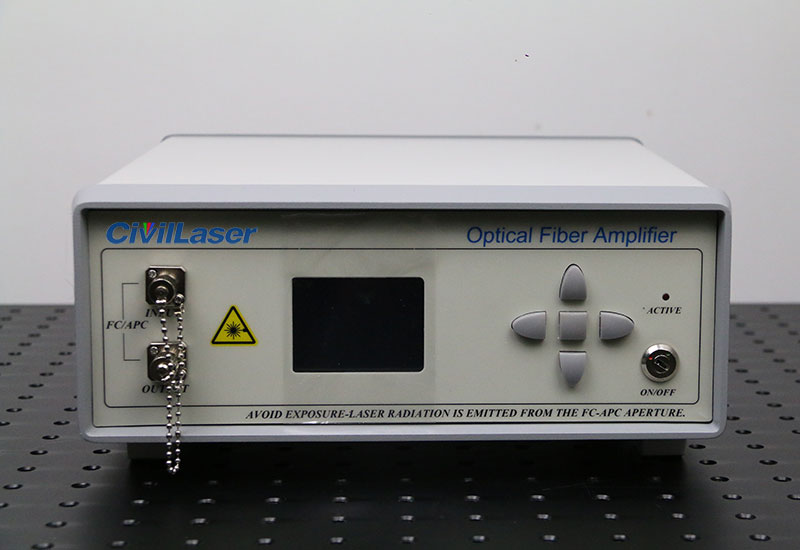

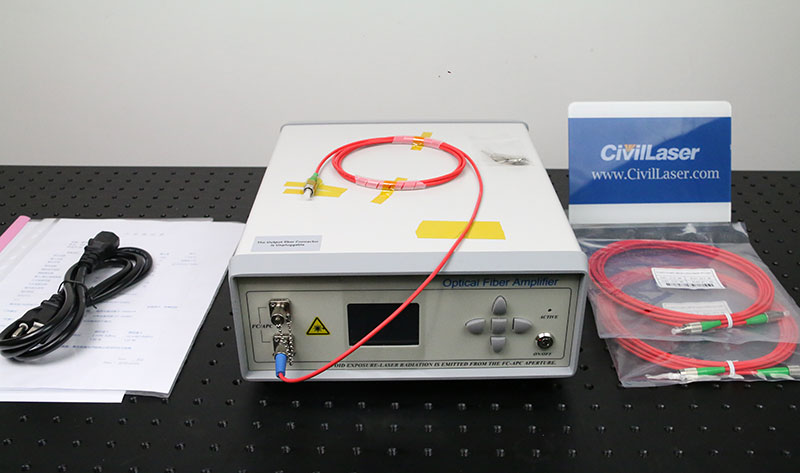

Fiber EDFA C-Band 부스터 증폭기 26dBm 400mW EDFA-C-BA-26-SM 데스크탑 유형

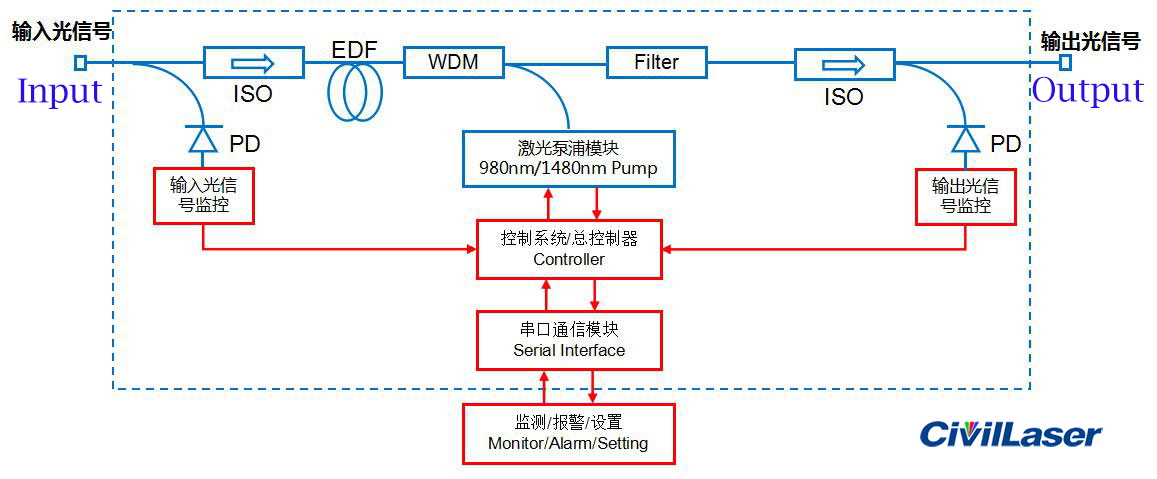

Erbium doped 광섬유 증폭기 (EDFA) is a high performance, small size of the 광섬유 증폭기 products. The internal use of stability high power 반도체 레이저, the high stability of WDM, isolator, and high gain erbium-doped fiber. The product has the advantages of high reliability, high power output, high gain and low noise. This is the ideal choice of high power EDFA system, this product uses 5V DC power supply, compact size, easy to integrate in the system to meet the needs of customers.
There are two types EDFA.(Current product is Booster-Amplifier type.)
Pre amplifier: Pre - Amplifier, referred to as PA, that is preamplifier, used in the -45 ~ -25 dBm range of small light signal amplification, typical gain of 35 dB;
Booster amplifier: Booster - Amplifier, referred to as BA, is used to enhance the power of the optical signal in the range of - 6 ~ + 3 dBm, with a maximum output power of 27 dBm;
[특성]
high reliability
Wide operating wavelength range
High gain, gain flatness is good
High output power
Good temperature adaptability
[신청]
Optical fiber communication
Optical fiber sensor
Optical fiber laser
[명세서]
|
매개변수
|
Unit
|
일반적인 값
|
비고
|
|
Wavelength Range
|
nm
|
1530~1565nm
|
C-band
|
|
Input power
|
dBm
|
-6~+3
|
|
|
Saturated output power
|
dBm
|
26
|
@-3dBm Input
|
|
Noise index
|
dB
|
5.0
|
@-35dBm Input
|
|
Polarization dependent gain
|
dB
|
<0.3
|
|
|
Polarization mode dispersion
|
ps
|
0.5
|
|
|
Input/output isolation
|
dB
|
>35
|
|
|
Pigtail fiber type
|
--
|
SMF-28 Single Mode fiber
|
|
|
Pigtail connector type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
ACC / APC
|
*메모1
|
*메모1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
APC mode - automatic power control: The signal light output power of the EDFA is set by the user, the PD automatically monitors and feeds back the output power, the EDFA control and the adaptive adjustment pump achieve the stability of the output signal. When the input optical power fluctuates, the APC mode minimizes the fluctuation of the output power and is suitable for power type and line type EDFA.
|
Electrical and environmental 매개변수
|
데스크탑 유형
(Current product)
|
Module Type
|
|
Control method
|
Button
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power supply
|
100~240V AC, <30W
|
5V DC, <15W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|

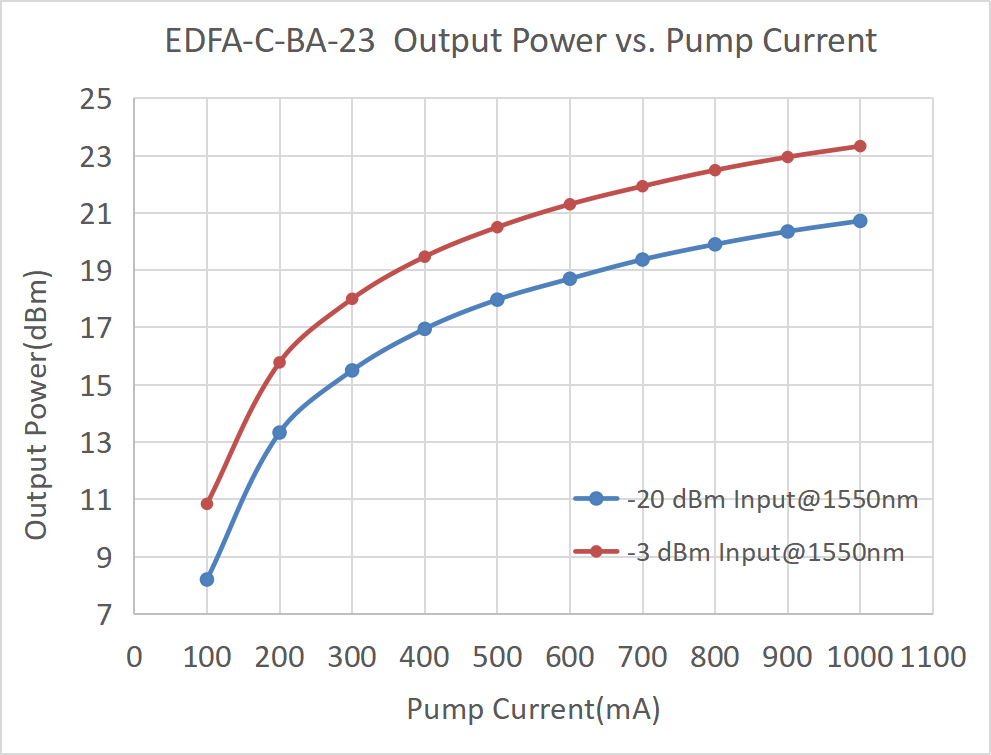

Test data reference:
.png)
.png)
