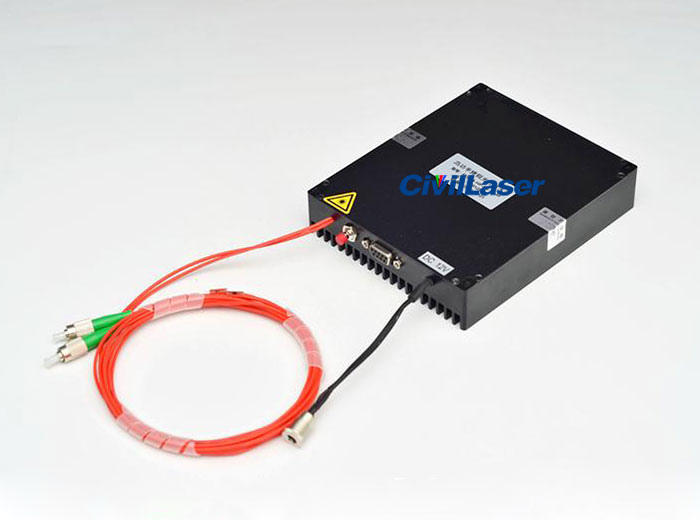

Hybrid Module of C-Band 20dBm EDFA and 라만 증폭기 Pump 500mW HEA-BA-20-1455-500 모듈 유형

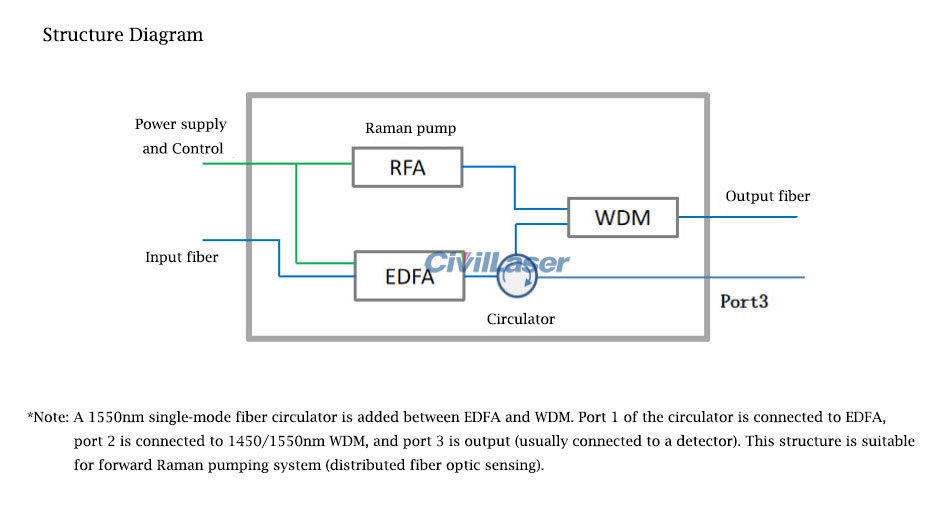

The module integrates both an erbium-doped 광섬유 증폭기 and a first-order Raman 광섬유 증폭기 pump. Compared with traditional EDFA and Raman amplification systems, the use of this module can significantly reduce system complexity, improve reliability, and reduce volume. It is suitable for high-capacity, high-speed optical fiber communication systems or optical fiber sensing systems for ultra-long distances.
[특징]
High integration
High gain factor
Low noise figure
[신청]
Long-distance optical communication network
Fiber Distributed Sensing
Fiber laser
[명세서]
|
EDFA Optical Index
|
|
매개변수
|
Unit
|
일반적인 값
|
비고
|
|
Wavelength Range
|
nm
|
1530~1565
|
C-band
|
|
Input Power
|
dBm
|
-6~+3
|
|
|
Saturated Output Power
|
dBm
|
20
|
@-3dBm input
|
|
Noise Figure
|
dB
|
5.0
|
@-3dBm input
|
|
Polarization Dependent Gain
|
dB
|
<0.3
|
|
|
Polarization Mode Dispersion
|
ps
|
0.5
|
|
|
Input/출력 절연
|
dB
|
>35
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 Single Mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
Automatic Current Control (ACC)/Automatic Power Control (APC)
|
|
|
Raman Pumping Index
|
|
Optical Index
|
Unit
|
일반적인 값
|
비고
|
|
Pump Wavelength
|
nm
|
1425/1435/1455/1465
|
1. The pump wavelength is customized according to the signal wavelength (1425/1435/1455/1465nm)
2. Wavelength accuracy ±5
|
|
Pump Power
|
mW
|
500
|
Maximum power
|
|
Pump Light Polarization Degree(DOP)
|
--
|
5% (Type)，10%(Max)
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 Single Mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Work mode
|
--
|
Automatic Current Control (ACC)
|
|
|
Electrical and Environmental 매개변수
|
데스크탑 유형
|
모듈 유형
(Current product)
|
|
Control method
|
Button
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female(Default not include)
|
DB9 Female
|
|
Power supply
|
AC100~240V, <45W
|
DC 12V 3A
|
|

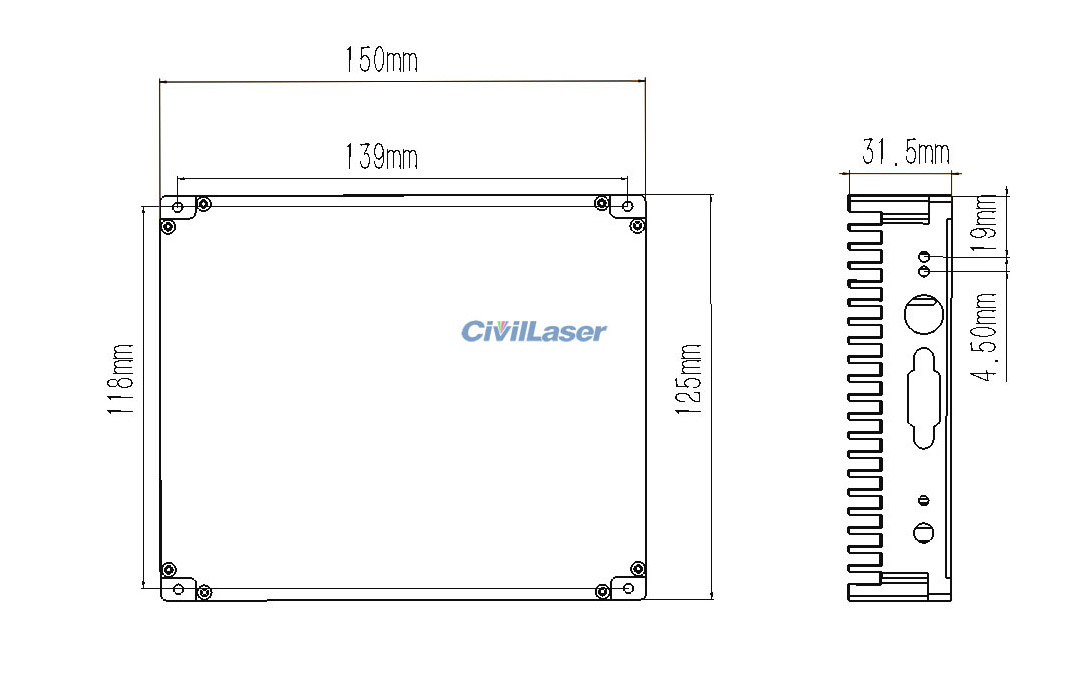

Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×31.5(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
*메모: When the module is installed, the cooling fins are facing upwards, and ensure that sufficient cooling air is blown along the cooling fins.
