500mW C-band ASE Broadband Light Source with 단일 모드 광섬유 ASE-C-500-SM 모듈 유형
The fiber ASE Broadband Light Source is an incoherent light source, which is the spontaneous radiation generated by the 반도체 레이저 pumping erbium-doped silica fiber, and the spectral flattening technology is introduced to achieve a broadband flat spectrum. The wavelength of the light source covers the C-band, and the spectral flatness is better than 2dB. It is output through single-mode fiber or polarization-maintaining fiber, which is suitable for applications such as fiber sensing.
[명세서]
|
매개변수
|
Unit
|
일반적인 값
|
비고
|
|
Model
|
--
|
ASE-C-500-SM
|
|
|
스펙트럼 범위
|
nm
|
1528~1563
|
C-band
|
|
Ouput Power
|
mW
|
500
|
|
|
전력 조정 가능 범위
|
--
|
10%~100%
|
(Optional function)
메모: Spectral flatness does not change.
|
|
Spectral Flatness
|
dB
|
3
|
|
|
출력 절연
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Degree of polarization DOP
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental 매개변수
|
데스크탑 유형
|
Module Type
(Current product)
|
|
Control Method
|
Button
|
RS232 Serial communication
(Only for power Tunable )
|
|
Communication Interface
|
DB9 Female(Default not include)
(Only for power Tunable )
|
DB9 Female
(Only for power Tunable )
|
|
Power Supply
|
100~240V AC, <30W
|
5V DC, <15W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|

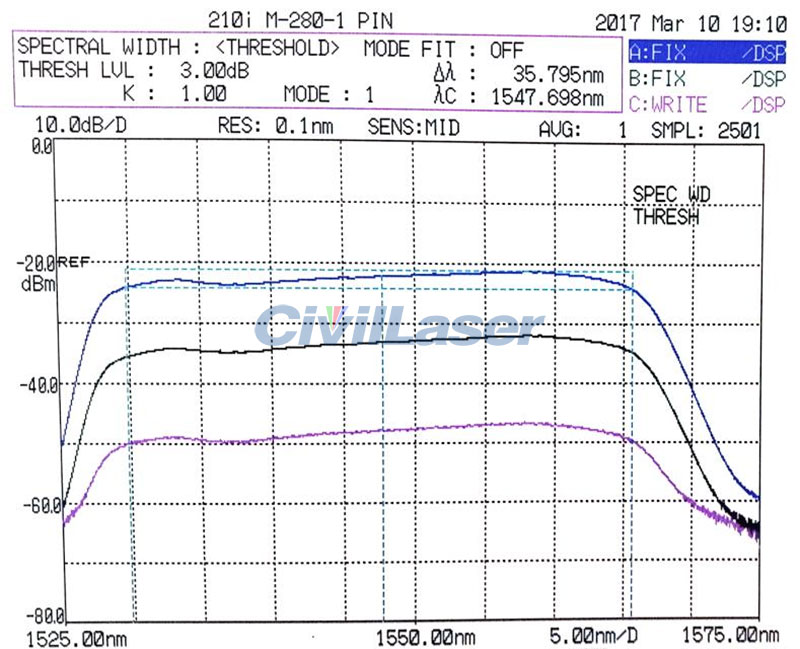

The following spectrum, flatness and spectral shape remain unchanged at different power levels:
.jpg)
