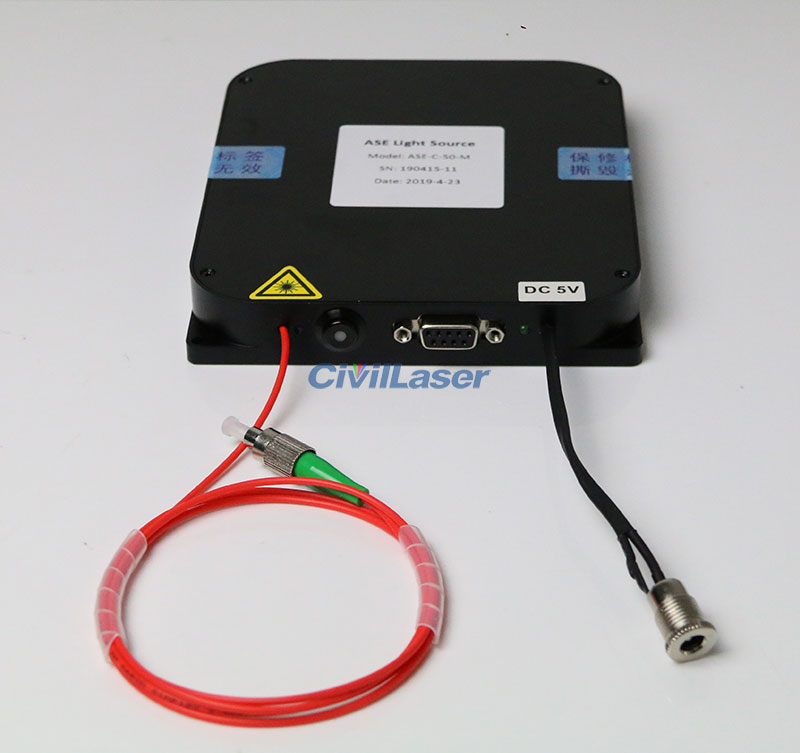

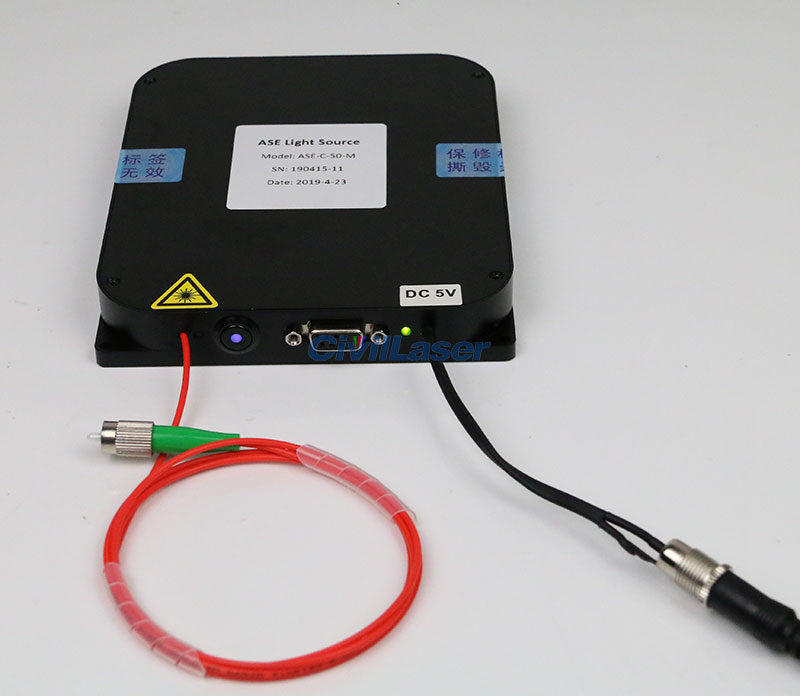

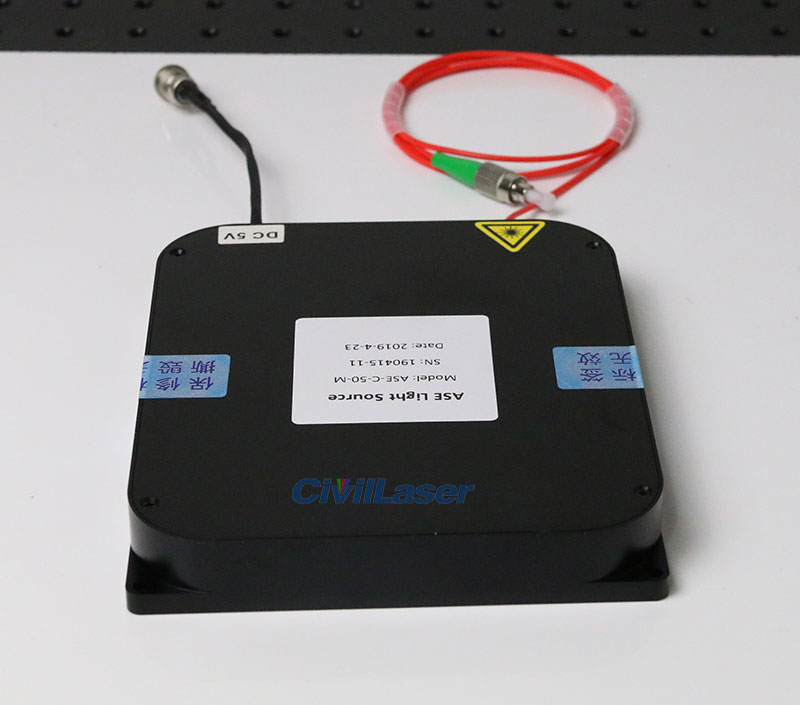

ASE-C-30-PM C-band 30mW ASE Broadband Light Source 모듈 유형 with 편광 유지 Fiber
The fiber ASE Broadband Light Source is an incoherent light source, which is the spontaneous radiation generated by the 반도체 레이저 pumping erbium-doped silica fiber, and the spectral flattening technology is introduced to achieve a broadband flat spectrum. The wavelength of the light source covers the C-band, and the spectral flatness is better than 2dB. It is output through single-mode fiber or polarization-maintaining fiber, which is suitable for applications such as fiber sensing.
[명세서]
매개변수
|
Unit
|
일반적인 값
|
비고
|
Model
|
--
|
ASE-C-30-PM
|
|

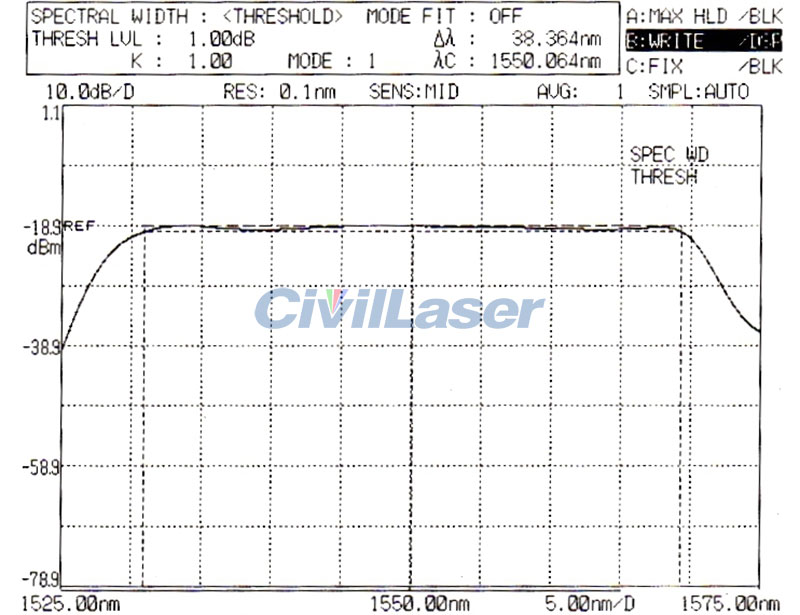

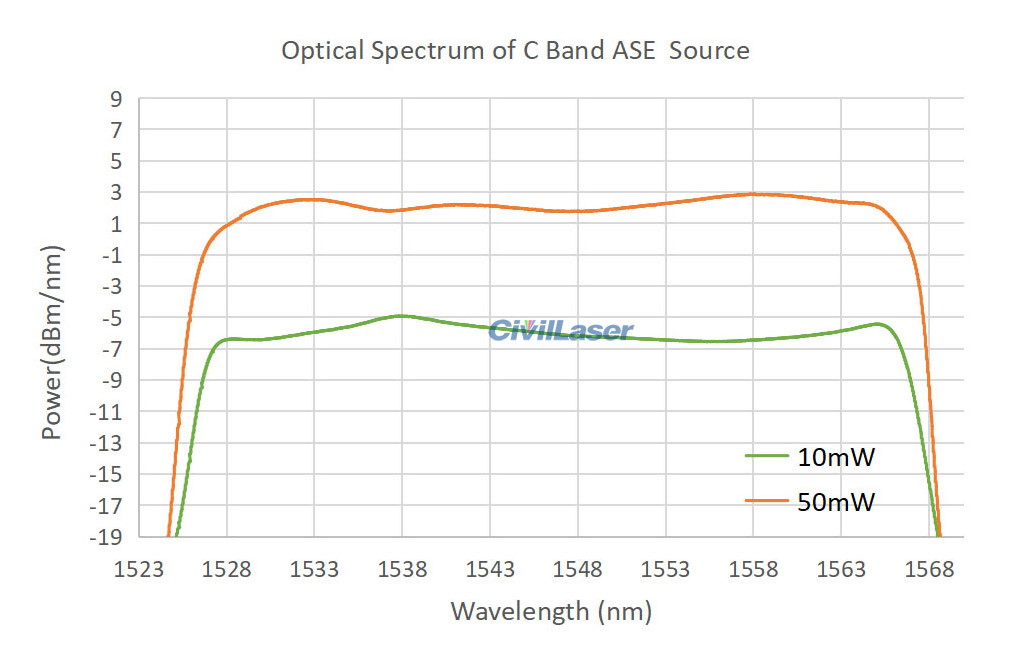

스펙트럼 범위
|
nm
|
1528~1563
|
C-band
|
Ouput Power
|
mW
|
30
|
|
전력 조정 가능 범위
|
--
|
10%~100%
|
(Optional function)
메모: Spectral flatness does not change.
|
Spectral Flatness
|
dB
|
1.5 (Type), 2(Max)
|
|
출력 절연
|
dB
|
>35
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
Degree of polarization DOP
|
dB
|
≤ 0.2
|
|
Pigtail Type
|
--
|
PM1550 Polarization-maintaining fiber
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
Electrical and Environmental 매개변수
|
데스크탑 유형
|
Module Type
(Current product)
|
Control Method
|
Button
|
RS232 Serial communication
(Only for power Tunable )
|
Communication Interface
|
DB9 Female(Default not include)
(Only for power Tunable )
|
DB9 Female
(Only for power Tunable )
|
Power Supply
|
100~240V AC, <30W
|
5V DC, <15W
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
Operating Temperature Range
|
-5~+35°C
|
Operating Humidity Range
|
0~70%
|
