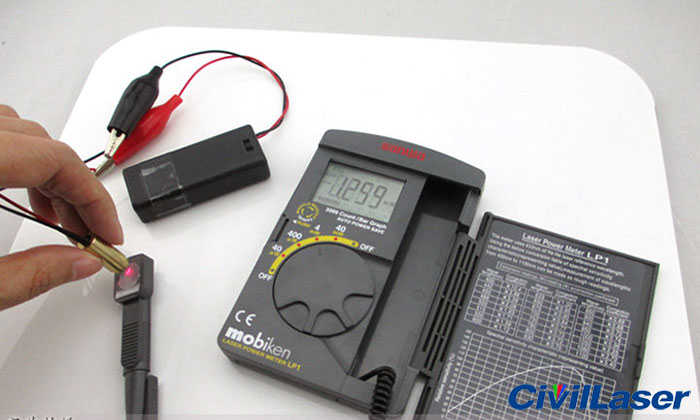

Digital SANWA LP1 Laser Power Meter Pocket optical sensor 400nm~1100nm 0.01uW~39.99mW

Digital SANWA LP1 Laser Power Meter Pocket optical sensor 400nm~1100nm 0.01uW~39.99mW

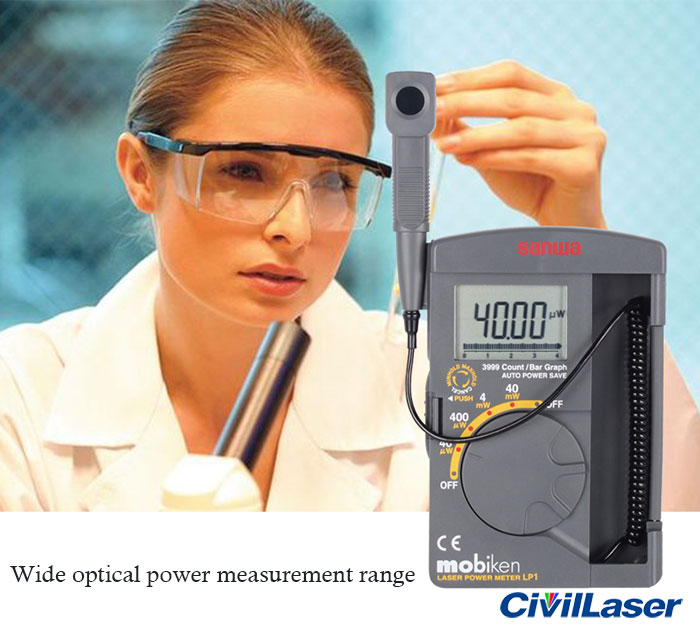

*Wide optical power measurement range

*Silicon photodiode

*Sensor can be all neatly contained and protected within the folding case.

*Max / Min hold

*Auto power save (30min.)

*500mm sensor cord





이름: SANWA LP1 Laser Power Meter

Brand: Japanese SANWA

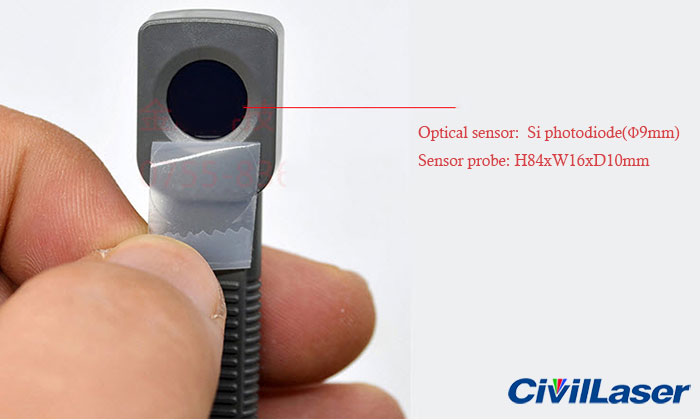

Optical sensor:  Si photodiode( Φ9mm)

Wavelength range: 400nm~1100nm

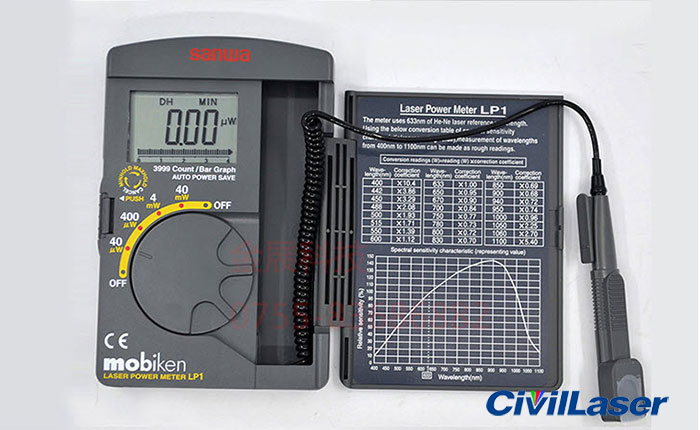

파장: 633nm(He-Ne laser) reference wavelength Convert by a table of spectral  sensitivity characteristic(representing value)

Display: Numeric:3999 full scale,Bargraph:42-segment

Sampling rate: Approx. 2 times/sec.for numeral display.

               Approx. 20 times/sec. for bargraph.

Measuring range: 40.00uW(0.01uW~39.9uW);

 400.0uW(0.1uW~399.9uW)

 4.000mW(0.001mW~3.999mW)

 40.00mW(0.01mW~39.99mW)



Accuracy:  ±5%(1mW:4mW range, 633nm)

           23℃±2℃

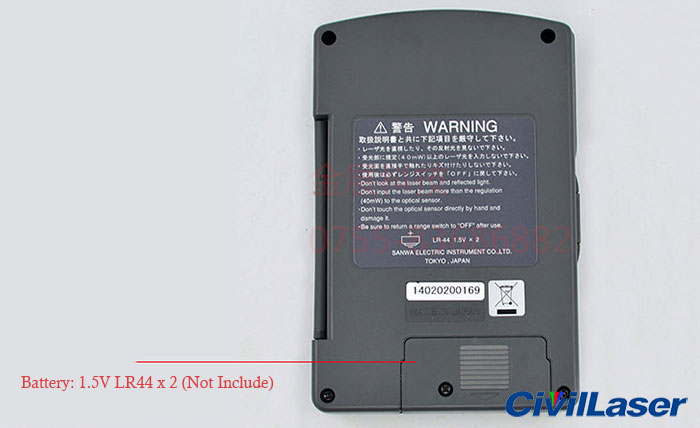

Battery: 1.5V LR44 x 2 (Not Include)

Power consumption: Approx. 6mW

Operating temperature: 0℃~40℃ max.80% RH no condensation

Storage temperature: -10℃~50℃ max. 80% RH no condensation

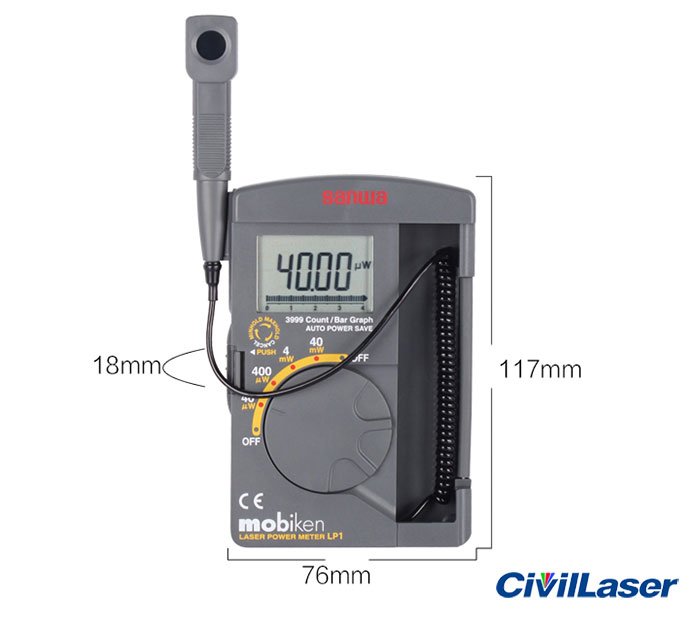

Size/Mass: H117xW76xD18mm / approx. 120g

Sensor probe: H84xW16xD10mm

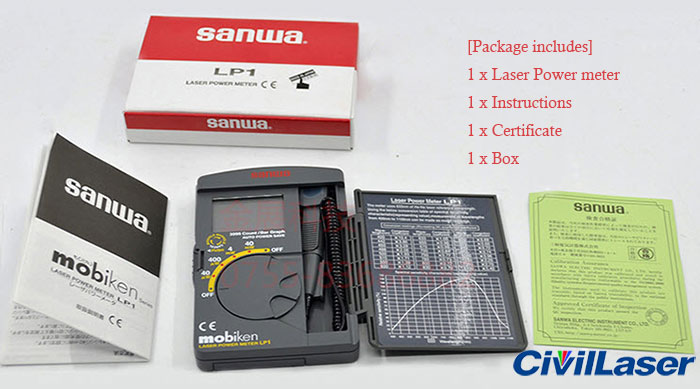

1 x Laser Power meter

1 x Instructions

1 x Certificate

1 x Box
