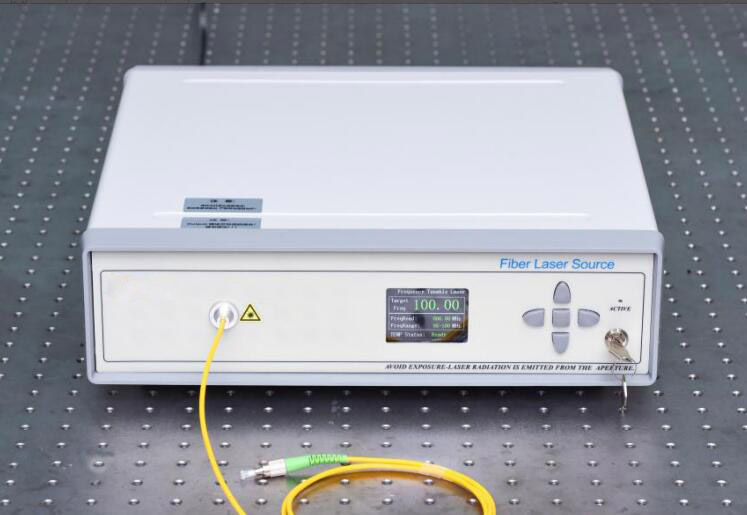

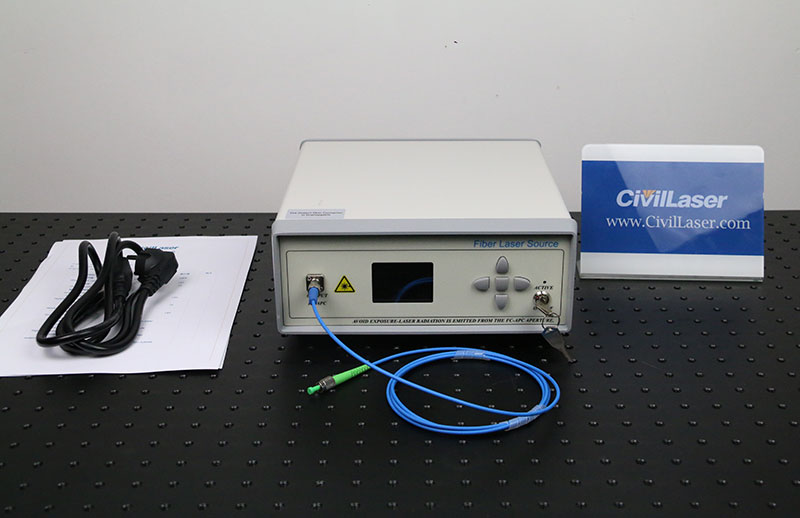

1064nm 300mW 섬유 결합 레이저 Single-mode Fiber Output FL-1064-300-SM 데스크탑 유형
This laser adopts butterfly-shaped 반도체 레이저 chip, and the professionally designed drive and temperature control circuit control ensures the safe operation of the laser and stable output power and spectrum. Suitable as a seed laser for high power lasers and also for production testing of optical devices, available in benchtop or modular packaging.
[특징]
High output power
Power and spectral stability
Single-mode output
[응용 프로그램]
Seed Laser
Optical test
Nonlinear Optics Research

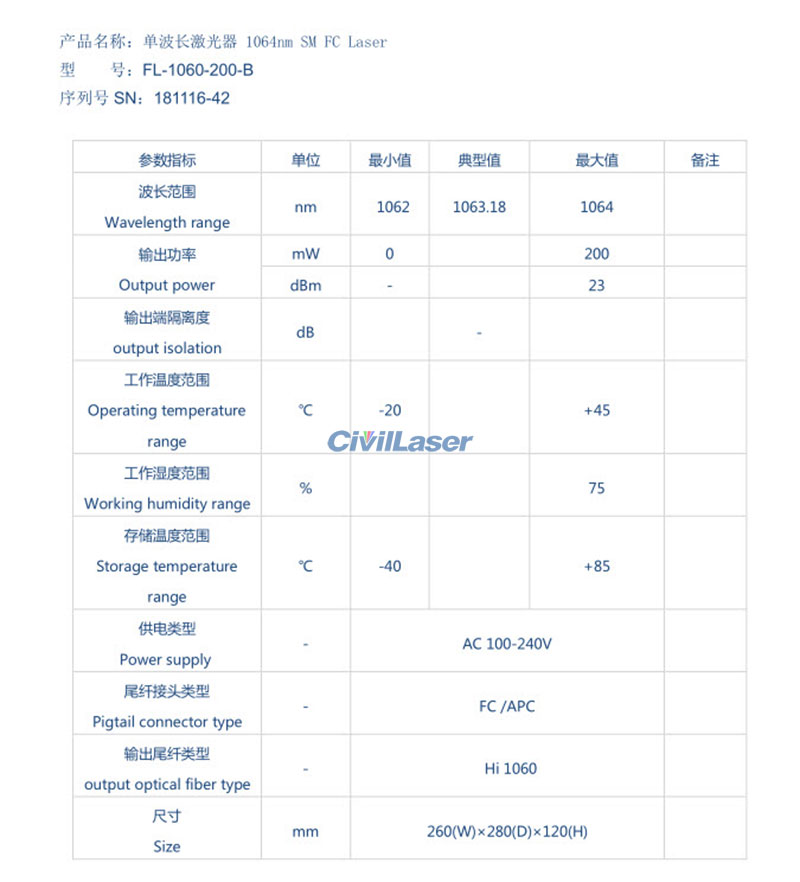

[명세서]
|
매개변수
|
Unit
|
일반적인 값
|
비고
|
|
Model
|
--
|
FL-1064-300-SM
|
|
|
Working Wavelength
|
nm
|
1064±2
|
|
|

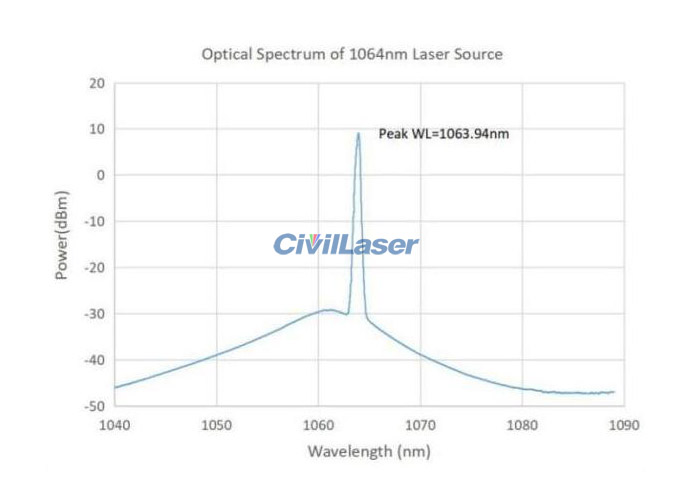

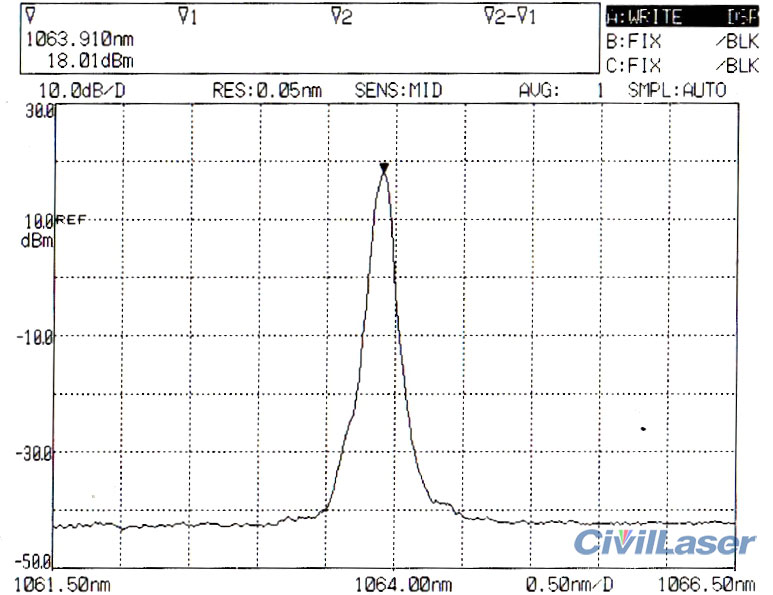

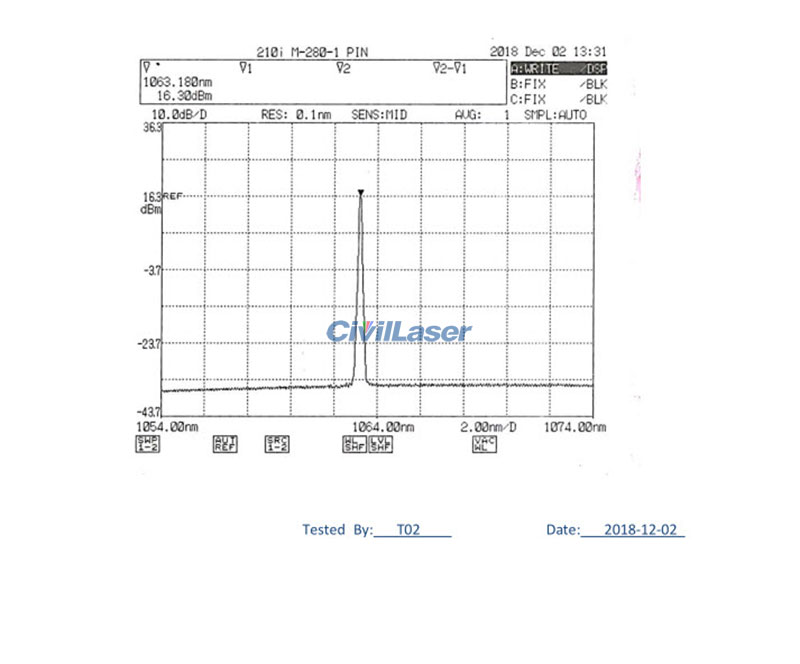

Spectral Width
|
nm
|
<0.1
|
|
|
Working Mode
|
--
|
CW
|
Continuous light
|
|
Output Power
|
mW
|
300
|
Customizable
|
|
전력 조정 가능 범위
|
--
|
10~100%
|
|
|

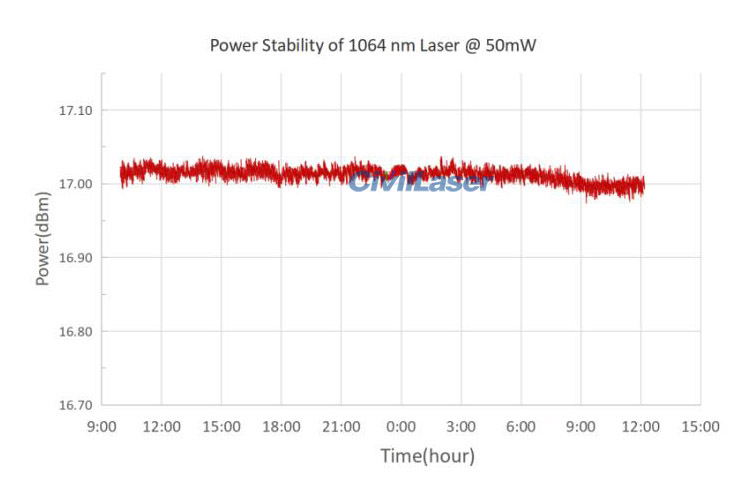

Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Pigtail Type
|
--
|
Hi 1060 Single mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental 매개변수
|

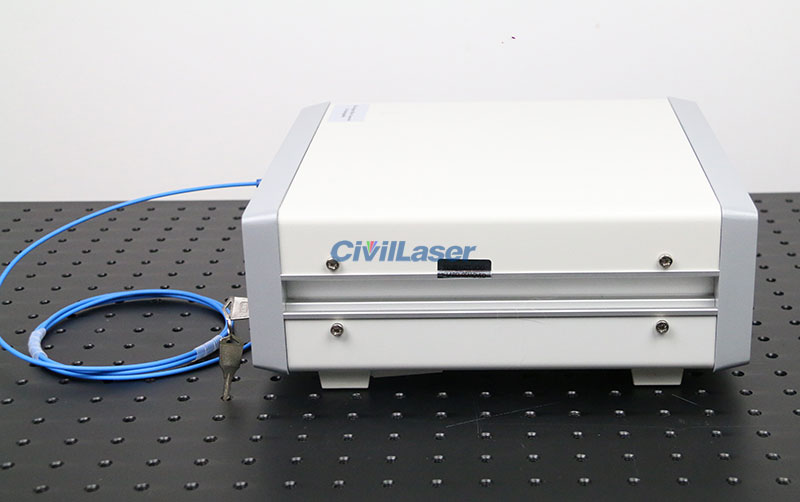

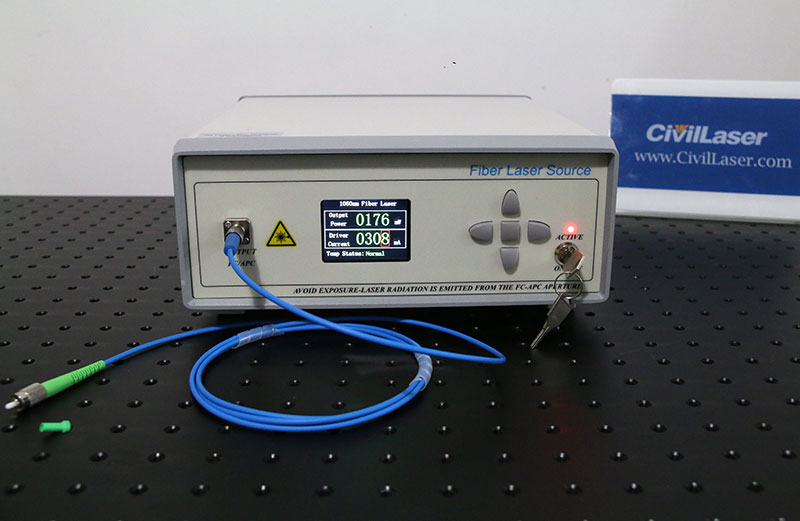

데스크탑 유형
(Current product)
|

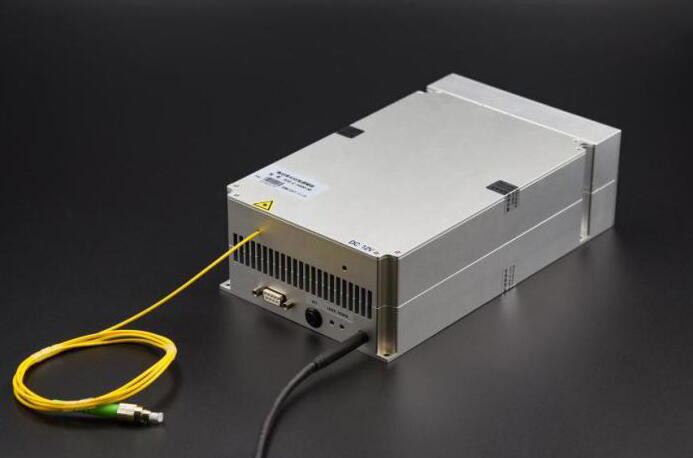

Module Type
|
|
Control Method
|
Button
|
RS232 Serial communication
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female
|
|
Power Supply
|
100~240V AC, <30W
|
5V DC, <15W
|
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
