976nm 60W High Power Multi-mode Optic 섬유 결합 레이저 펌프 레이저 소스 벤치탑
High-power laser light source is based on high-performance 반도체 레이저 chip, 105/125um fiber coupling output. The professionally designed constant current drive and temperature control circuit ensure the safe and stable operation of the laser. Some models have wavelength locking, and the spectral stability can be better than ±3nm. Ideal for medical research, fiber laser pumping, and other production testing. It adopts desktop package, with color LCD screen, and the power is adjustable, and host computer monitoring software can be provided.
[특징]
1. High output power
2. Power and spectral stability
[응용 프로그램]
1. Fiber laser pumping
2. Biomedical Science
3. Material laser processing
[명세서]
|
매개변수
|
Unit
|
일반적인 값
|
비고
|
|

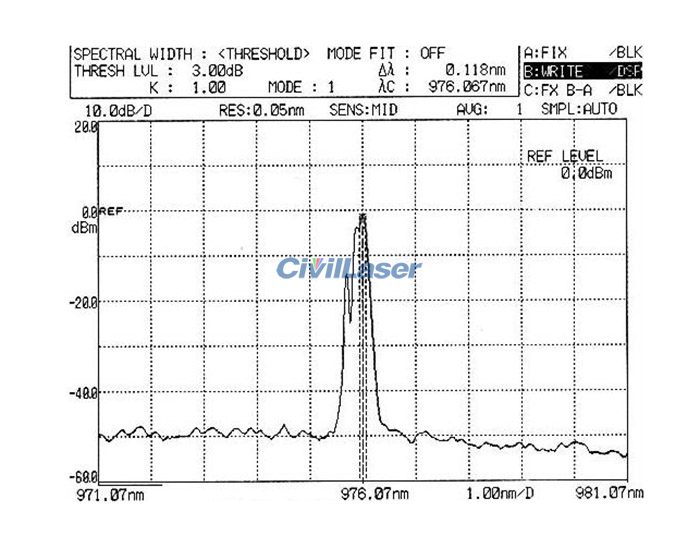

Working Wavelength
|
nm
|
976
|
FBG Lock wavelength
|
|
Wavelength Accuracy
|
nm
|
±3
|
|
|
Spectral Width
|
nm
|
≤3
|
|
|
Working Mode
|
--
|
CW
|
Continuous light
|
|
Output Power
|
W
|
60
|
|
|
Power Adjustment Range
|
--
|
10~100%
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Pigtail Type
|
--
|
105/125μm multimode fiber, NA= 0.22
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
Bare fiber or fiber collimator optional
|
|
Electrical and Environmental 매개변수
|
데스크탑 유형
(Current product)
|
|
Control Method
|
Button
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
|
Power Supply
|
100~240V AC, <120W
|
|
Size
|
260(W)×320(D)×120(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
