Powell lens 녹색 laser line 520nm 50mW 85mW uniform line laser positioning
SPECIFICATIONS:
이름: 520nm 녹색 laser module Line adjustable output power and line width
출력 파장: 520nm
출력 파워: 50mW / 85mW (선택하다)
레이저 모양: Line
Laser type: Visible laser, 녹색 laser
Outside Color: Black

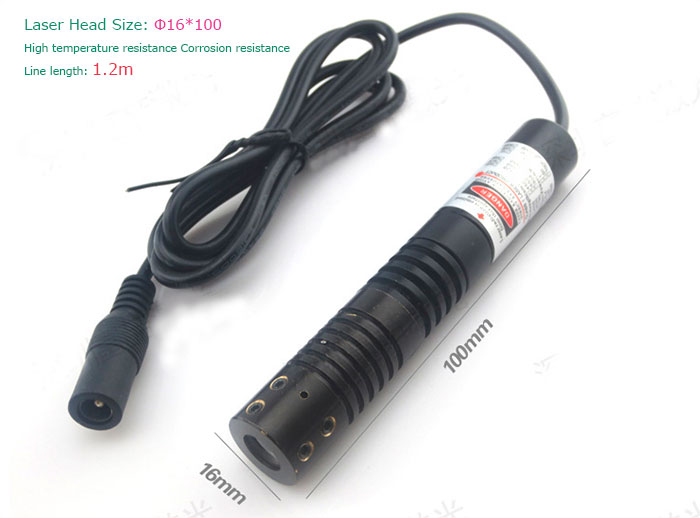

크기: φ16*100mm
Current: ≤400mA
작동 전압: DC 1-3V

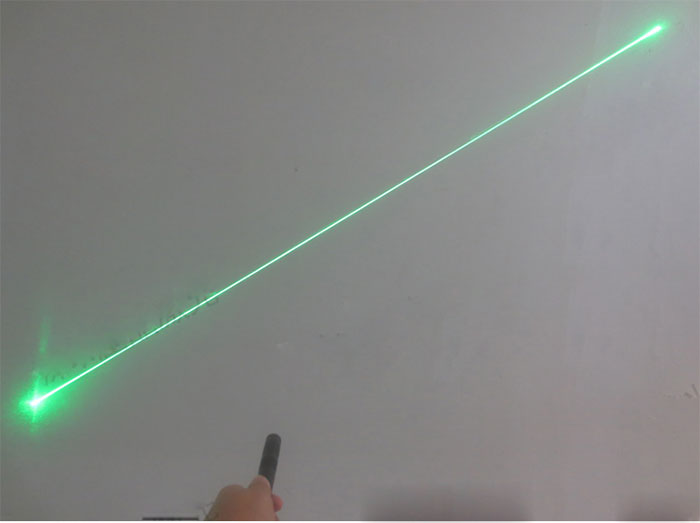

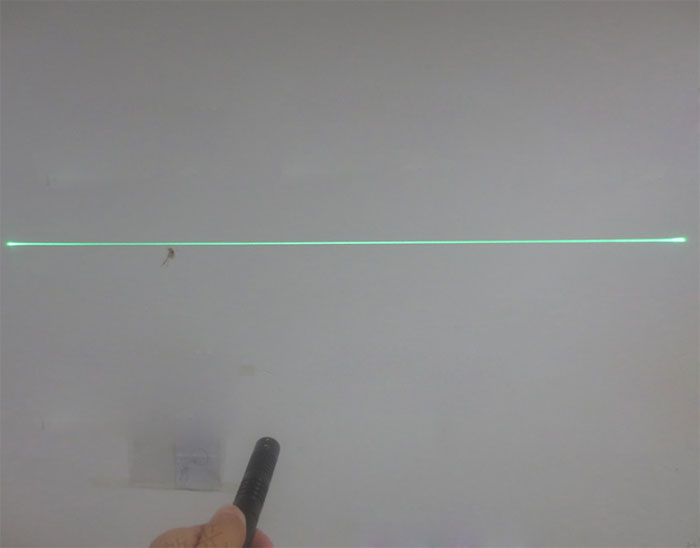

Spot pattern: uniform line

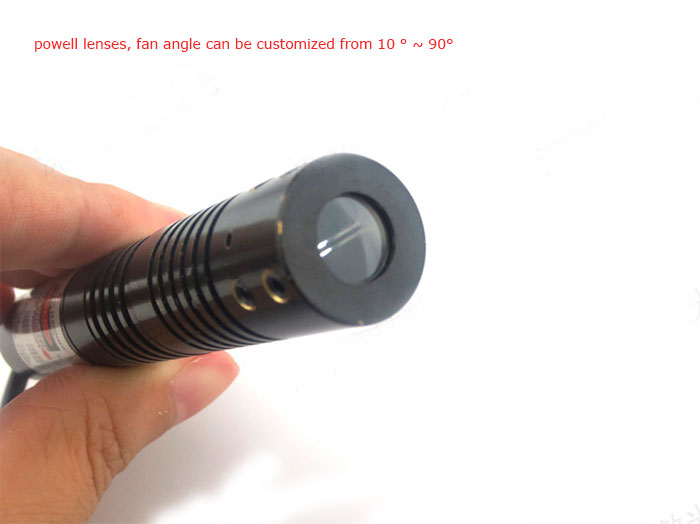

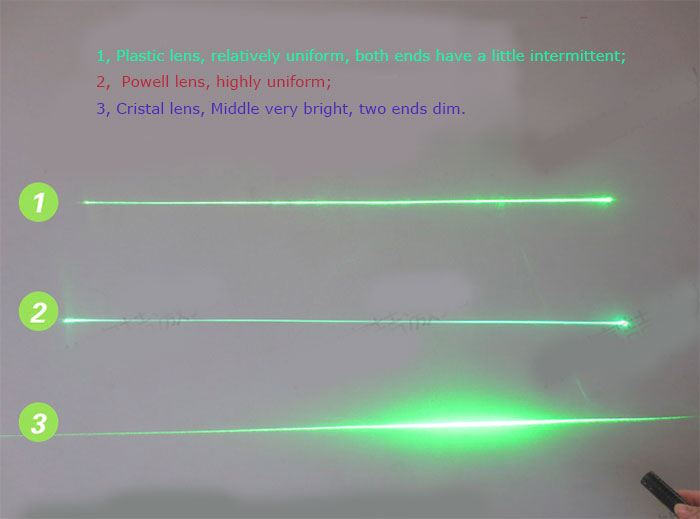

Optical lens: Powell lens
Fan angle: 10° ~90°(can be customized)

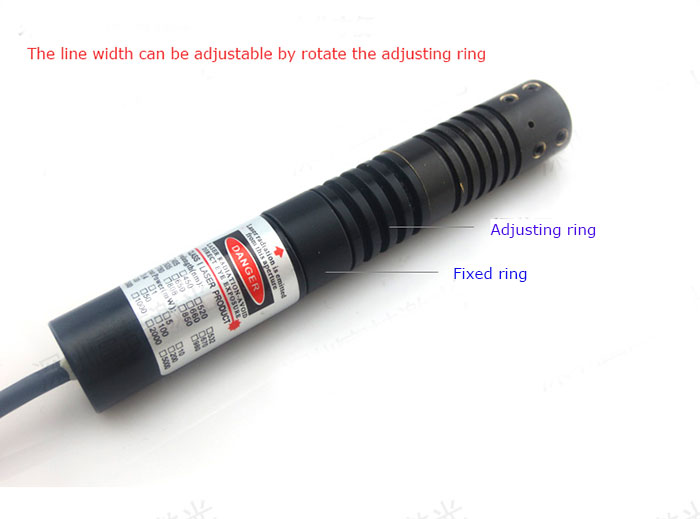

Line width: 0.5mm ~ 30mm (adjustable)
작동 온도: -10--50℃
보관 온도: -40℃~80℃
Line Length: 1.2m (can be customized)
보증:12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway
Package includes:
1* 녹색 laser module;
1* Laser stand;

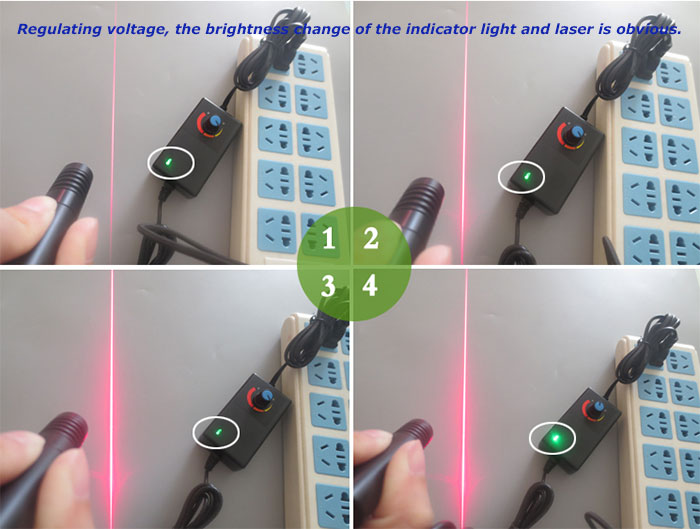

1* Adjustable Power supply;
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7, Tail power line using high temperature line, good toughness and corrosion resistance.

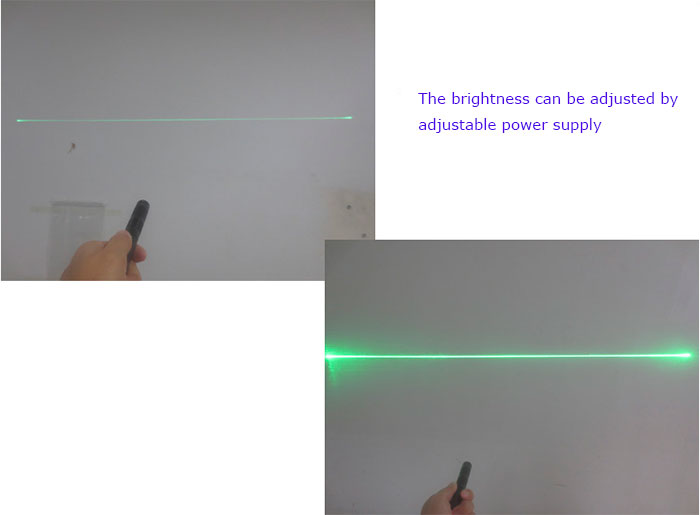

녹색 line laser module and the output power is adjustalbe
