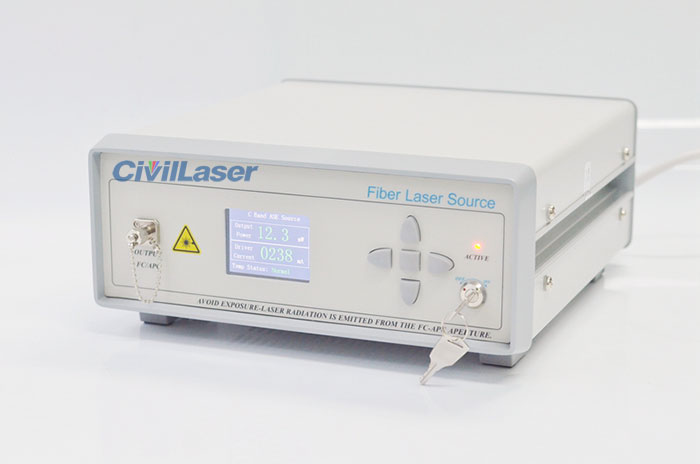

1550nm 30W Peak Power Pulse Fiber Laser Nanosecond Ultrafast Laser 데스크탑 유형
Nanosecond pulse laser adopts unique circuit and optical optimization design, output laser pulse width, peak power and repetition frequency can be adjusted, working wavelength and power output are stable, single-mode fiber output, modular type is convenient for system integration, suitable for distributed Fiber optic sensing system.
[특징]
Full fiber structure
Pulse width, repetition frequency, and power can be adjusted
데스크탑 or module package
[응용 프로그램]
Lidar
Nonlinear optics
Distributed Fiber Optic Sensing
[사양]
매개변수
|
Unit
|
일반적인 값
|
비고
|
Central Wavelength
|
nm
|
1550±1
|
|
Spectral Width
|
nm
|
≤1
|
|
Peak Output Power
|
W
|
30
|
Customizable
|
Pulse Width
|
ns
|
5~30 Adjustable
|
Customizable
|
Repeat Frequency
|
kHz
|
1~100 Adjustable
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
Long-term Stability (10 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
Trigger Method
|
--
|
External trigger
|
SMA905 interface
|
Pigtail Type
|
--
|
SMF-28 single-mode fiber
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
메모-Trigger:
Trigger Method - External trigger:
If it is an external trigger, it means that the customer needs to input a periodic clock signal to the laser source to trigger the laser light source from the outside in order to output a nanosecond periodic pulse signal;
Electrical and environmental 매개변수
|
데스크탑 유형
(Current product)
|
모듈 유형
|
Control method
|
Button
|
RS232 Serial communication
|
Communication interface
|
DB9 Female(Default not include)
|
DB9 Female
|
Power supply
|
100~240V AC, <30W
|
5V DC, <15W
|
Size
|
260(W)×280(D)×120(H)mm
|
125(W)×150(D)×20(H)mm
|
Operating temperature range
|
-5~+35°C
|
Operating humidity range
|
0~70%
|
