1528~1603nm C+L band 10mW~100mW ASE fiber laser source power adjustable Desktop type
1528~1603nm ASE 광대역 광원(C+L band Gain flattening)
The spectral flatness ≤3dB, The spectral width ≥75nm, 10~100mW output power optional
C+L Band gain-flattened optical fiber ASE Broadband light source is based on general broadband source added gain flattening technology,
and optimize the structure of the light source, 3dB output spectrum flatness, and it has a high output power.
Suitable for fiber optic sensing applications.
Characteristic:
High output power
Spectral flatness ≤3dB
Spectral width ≥75nm
Stable spectrum
Application:
Fiber Optic Sensing
Medical Imaging
Optical fiber device testing
ASE broadband light source C+L band gain flattening
[명세서]
|
Parameter
|
Unit
|
Typical value
|
Remarks
|
|
Working wavelength
|
nm
|
1528~1603
|
C+L band
|
|
Output power
|
mW
|
10~100
|
Choose
|
|
조정 가능한 출력 전력
|
-
|
Adjustment range 10%~100%
|
Choose 1. Not Include(Fixed output power) 2.Include(Adjustable output power)
*Spectral flatness remains unchanged with optical power adjustment
|
|
Spectral flatness
|
dB
|
≤3(Type 2.5)
|
|
|
Output end isolation
|
dB
|
>35
|
|
|
Short term stability(15Minutes)
|
dB
|
≤ 0.02
|
|
|
Long-term stability(8Hours)
|
dB
|
≤ 0.05
|
|
|
Degree of polarization DOP
|
dB
|
≤ 0.2
|
|
|
Pigtail connector
|
-
|
FC/APC
|
|
|
Pigtail fiber type
|
-
|
SMF-28e single mode fiber
|
|
|
working temperature
|
°C
|
-20 ~ +65
|
|
|
Storage temperature
|
°C
|
-40 ~ +85
|
|
|
Power supply
|
-
|
100~240V AC, <30W
|
|
|

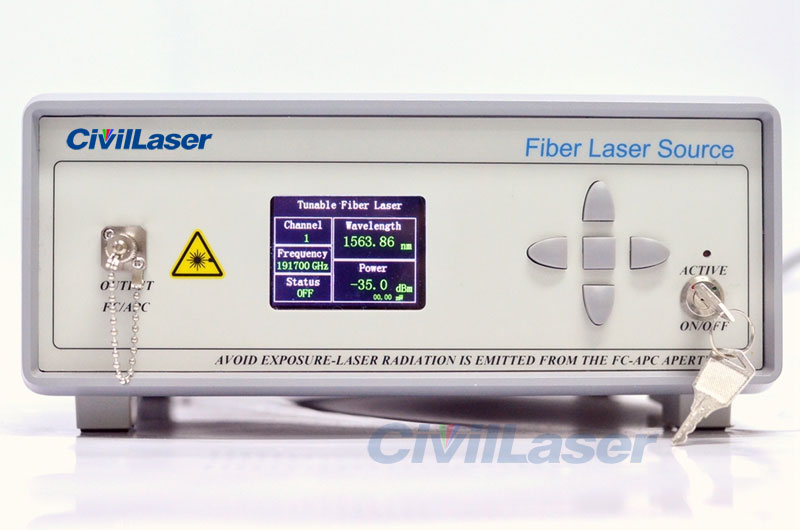

Desktop type size
|
mm
|
260(W)×280(D)×120(H)
|
|
|
Communication interface
|
-
|
DB9 Female(RS232)
|
Default not include, Only for output power adjustable model.
Add software control functions, please contact us.
|
