OSRAM 80mW 520nm 녹색 Grass 녹색 레이저 다이오드s PLT5 520B TO56 Package

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


OSRAM 80mW 520nm 녹색 Grass 녹색 레이저 다이오드s PLT5 520B TO56 Package

Brand introduction:
German lighting expert --- OSRAM (OSRAM), is an important member of the German SIEMENS (SIEMENS) group, one of the world's two largest electric light source manufacturers.
OSRAM with its excellent light source products known to the world. It has 49 production bases in 18 countries in the world, and the products are sold to more than 140 countries.
OSRAM China has a number of foreign experts and Chinese light source elite, the common design of high-quality light products, diligently to open up new areas of light
As many as 5000 varieties of light source and lighting system of OSRAM, with the most advanced lighting technology for modern life, leading fashion lighting.
The company's products include: fluorescent lamp, compact fluorescent lamp, high intensity gas discharge lamp, halogen lamp, automobile lamp, motorcycle lamp, display optical light source, electronic ballast and light emitting diode.

[특징]
1. Typical emission wavelength: 520 nm
2. Efficient radiation source for CW and pulsed operation.
3. Single mode semiconductor laser.
4. High modulation bandwidth.

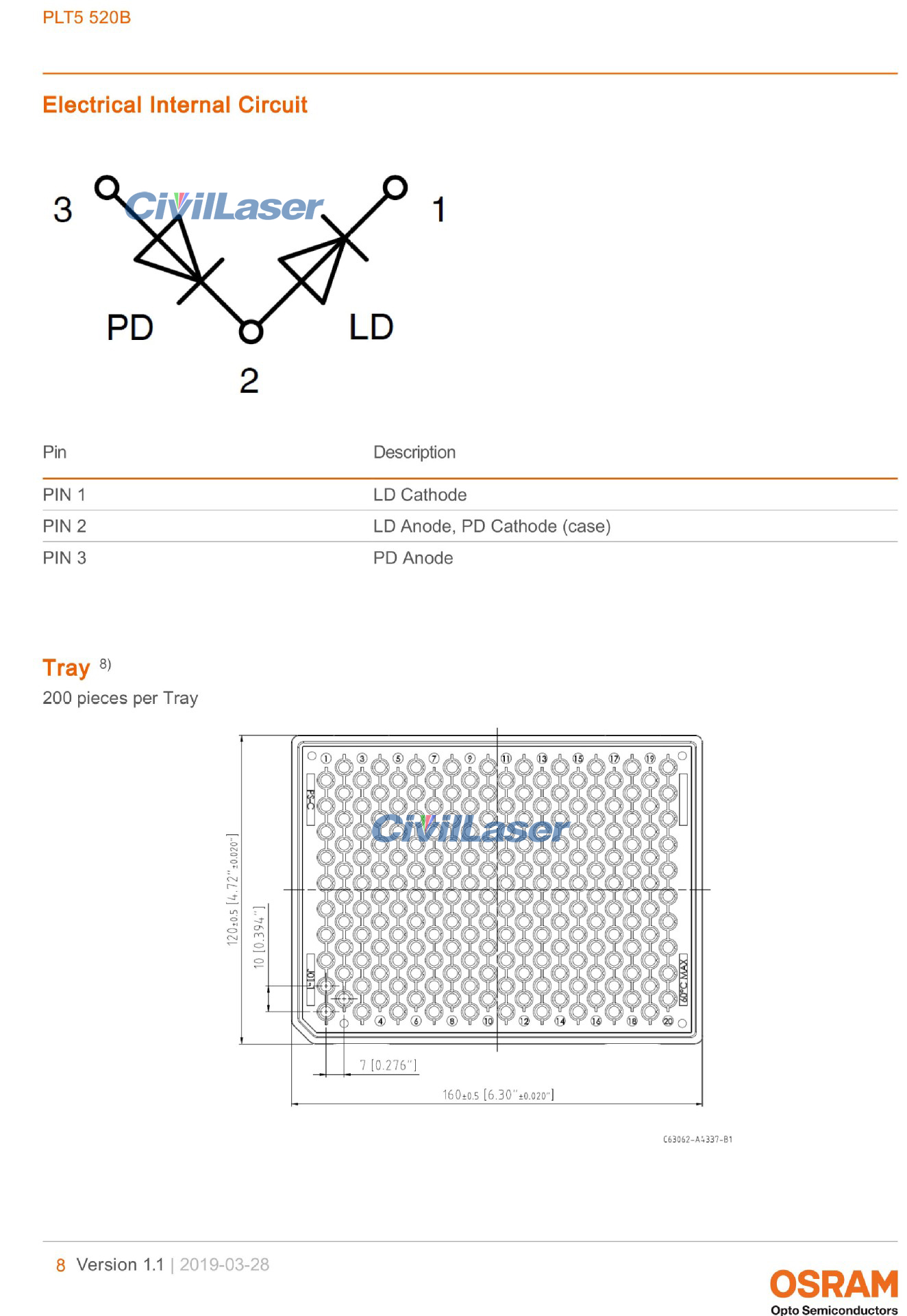

5. TO56 package with photo diode.

[Applications]
1. Health Monitoring (Heart Rate Monitoring, Pulse Oximetry)
2. Measurement Levelling
3. Projection Home LED & Laser
4. Projection Professional LED & Laser

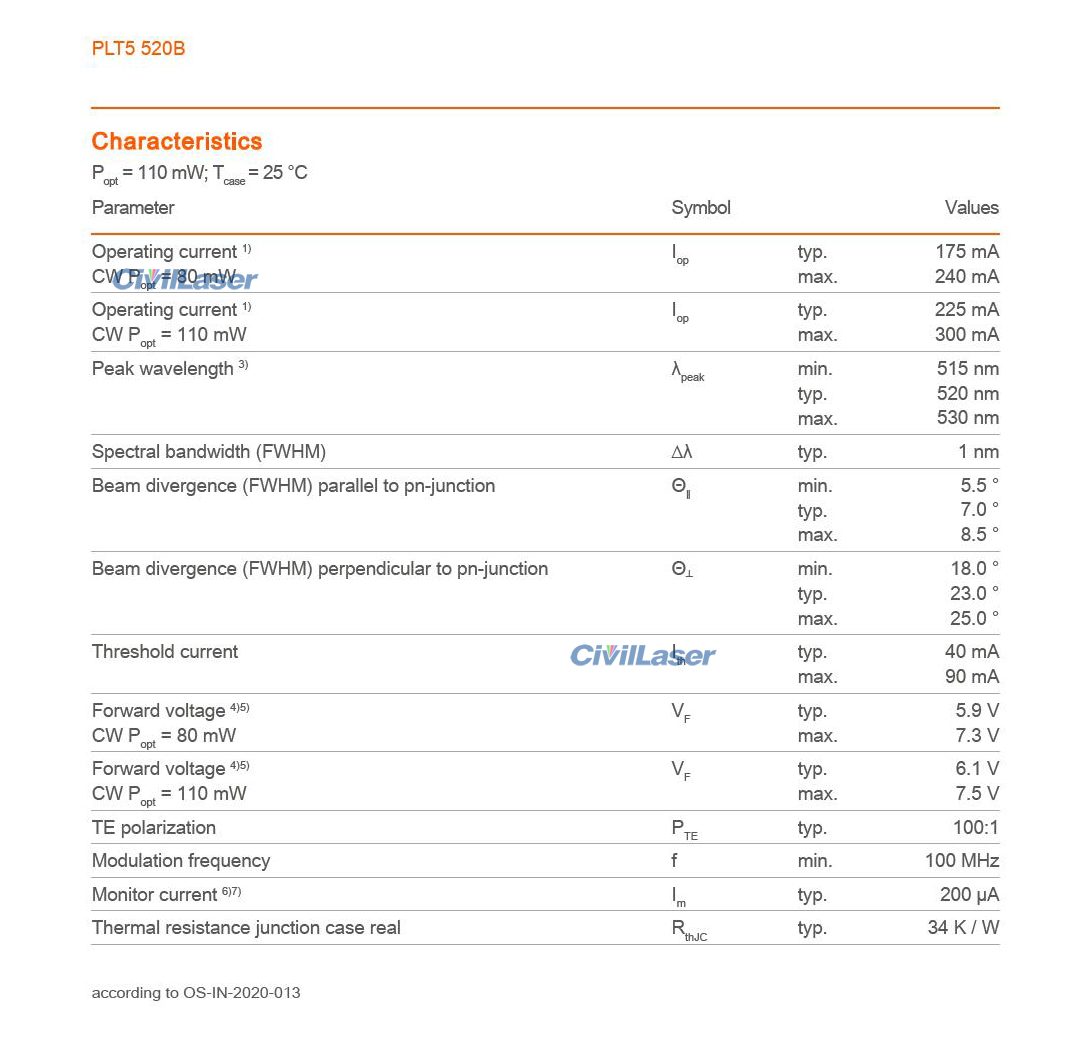

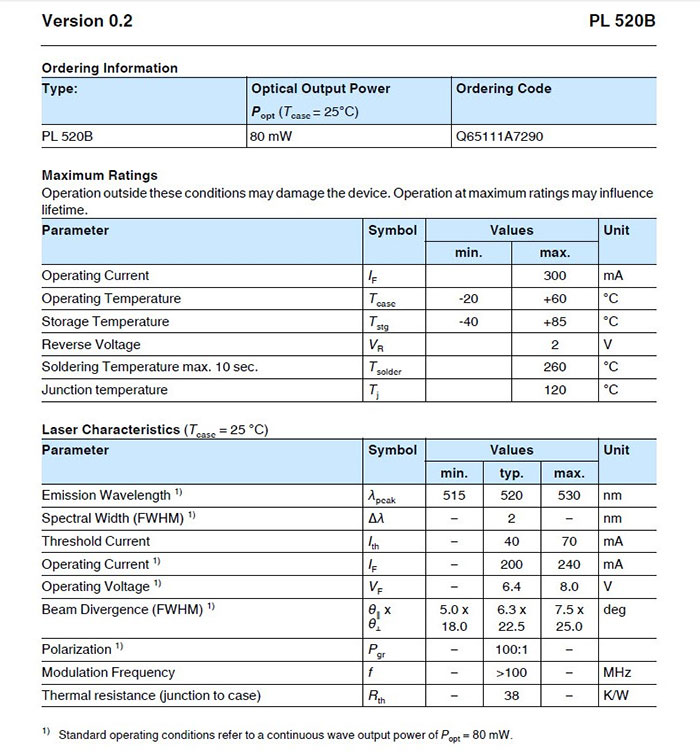

[Specification]
상품명: Laser diode
Model: PLT5 520B
파장: 520nm
출력 파워: 80mW
Reverse Voltage: 2V

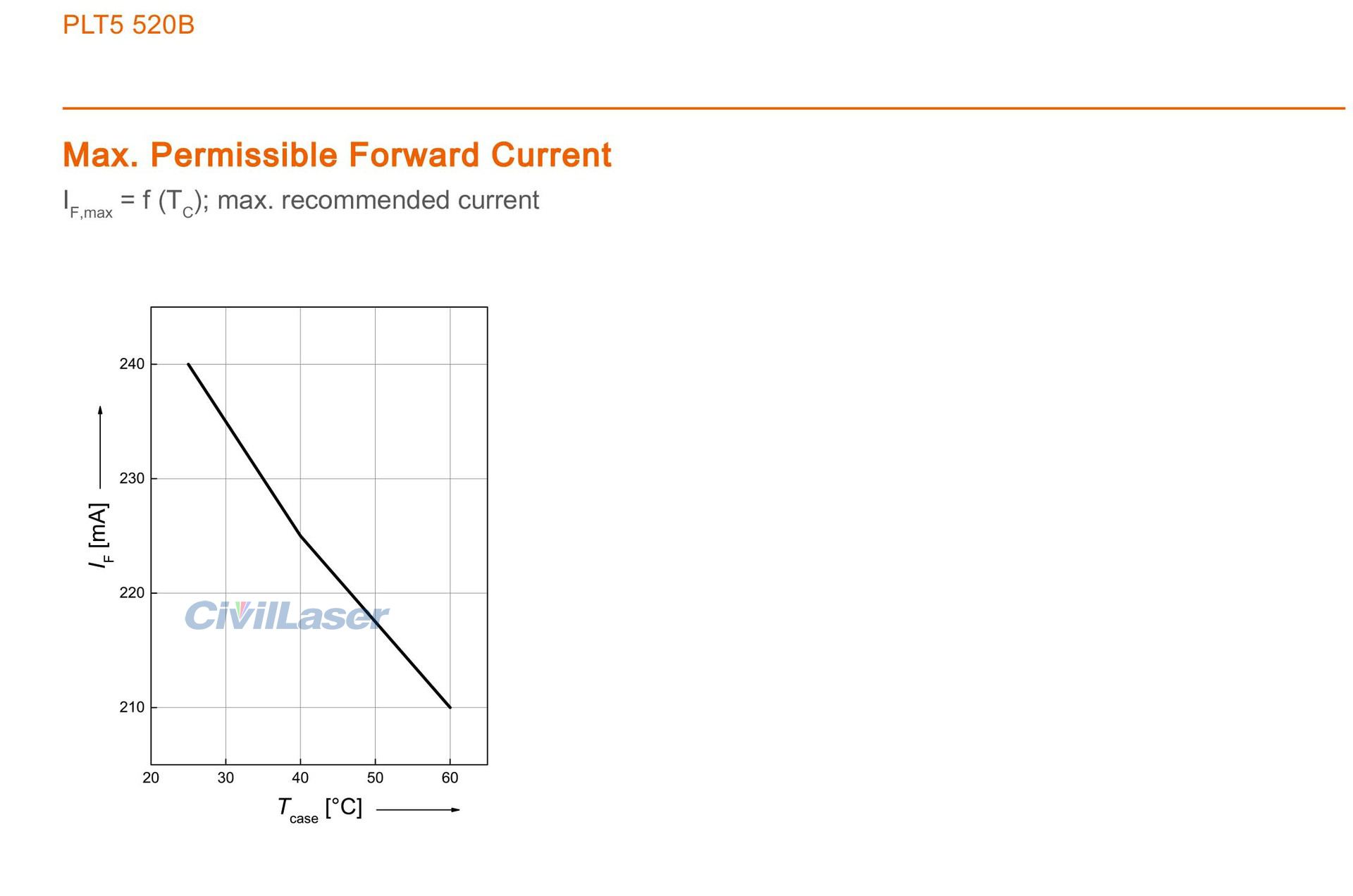

Forward Current: 330mA
Forward Voltage:5.9V

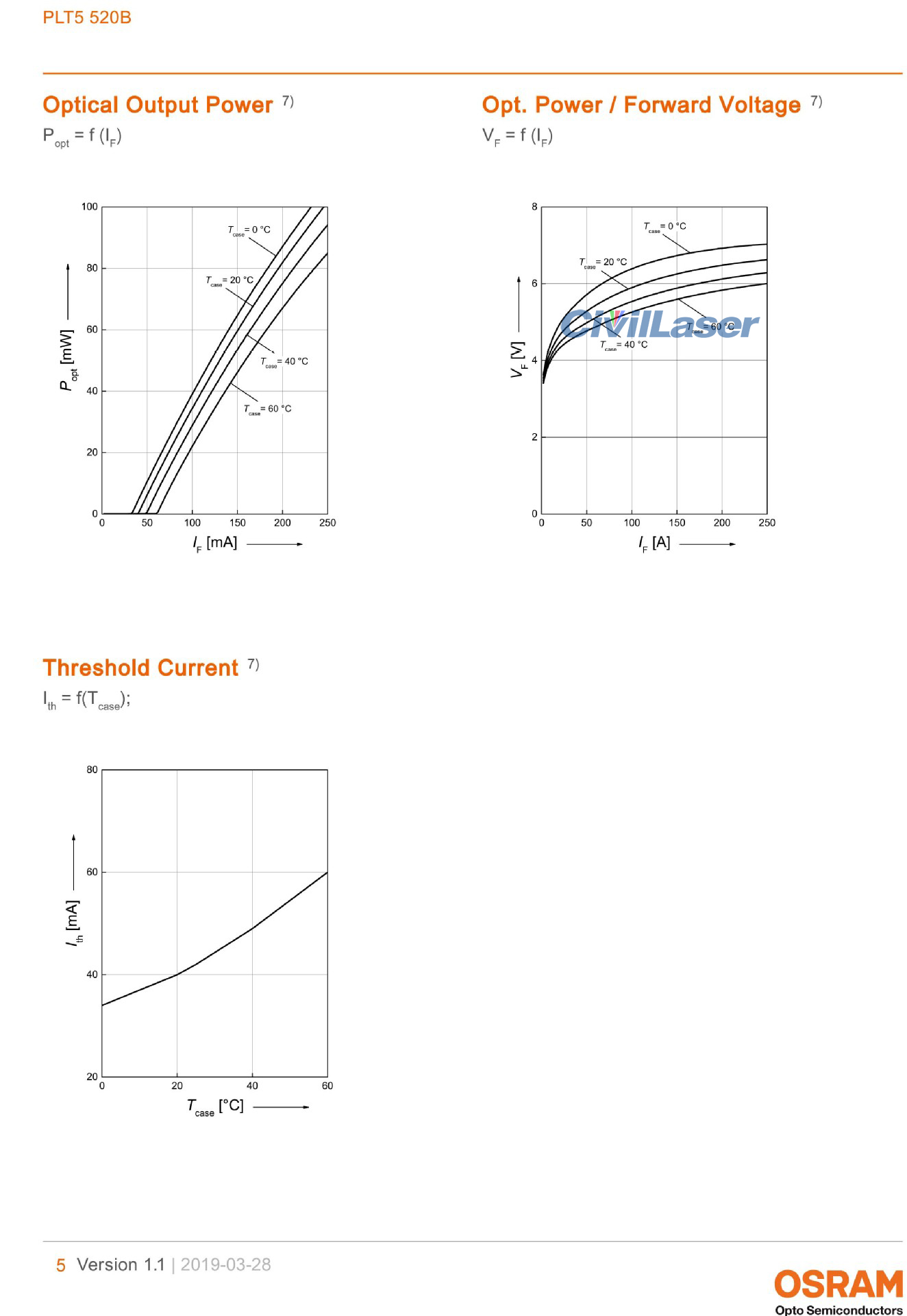

Threshold Current: 40mA
작동 전류: 175mA
작동 전압: 5.5V

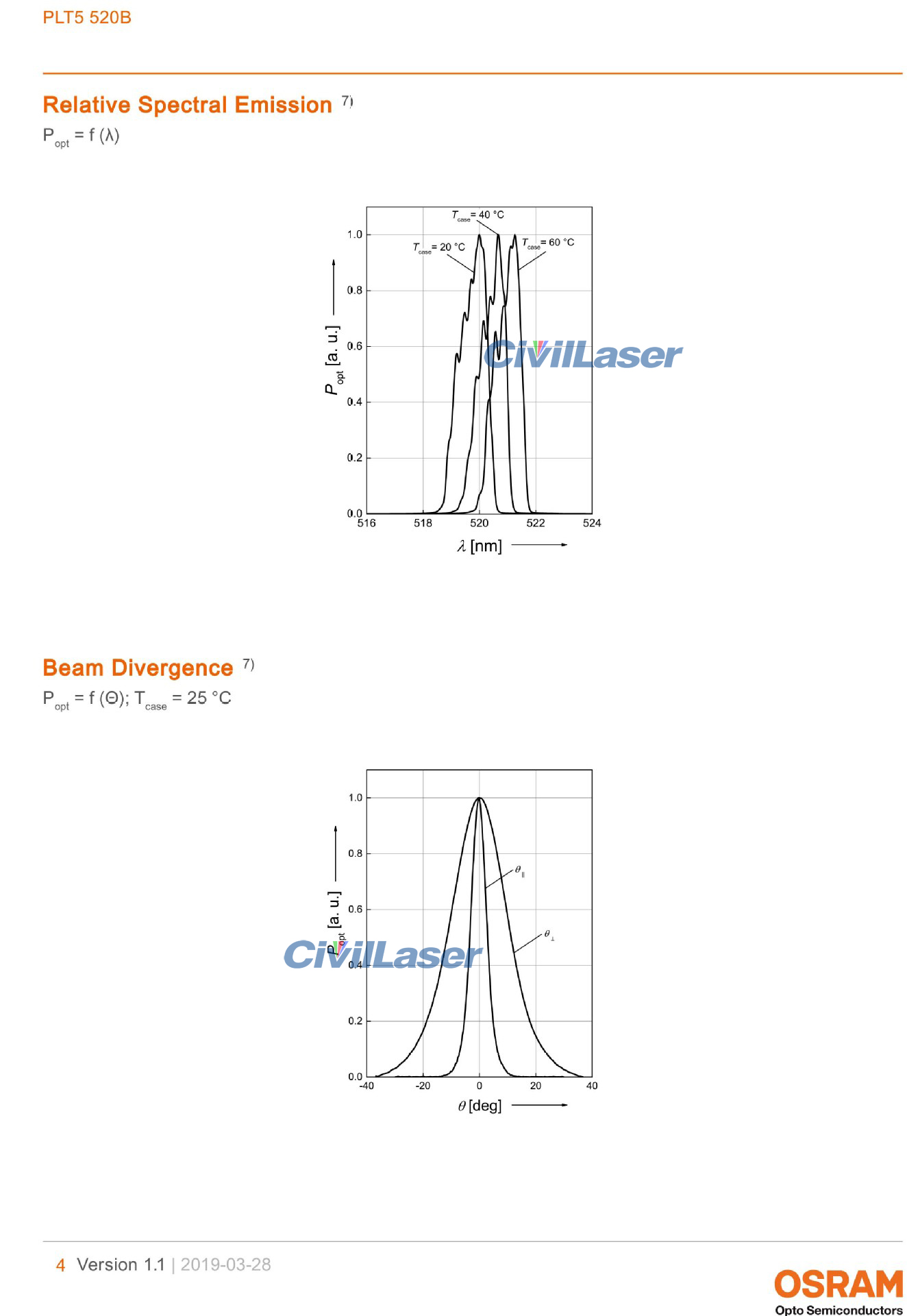

Spectral Bandwidth: 1nm
Modulation Frequency: 100MHz

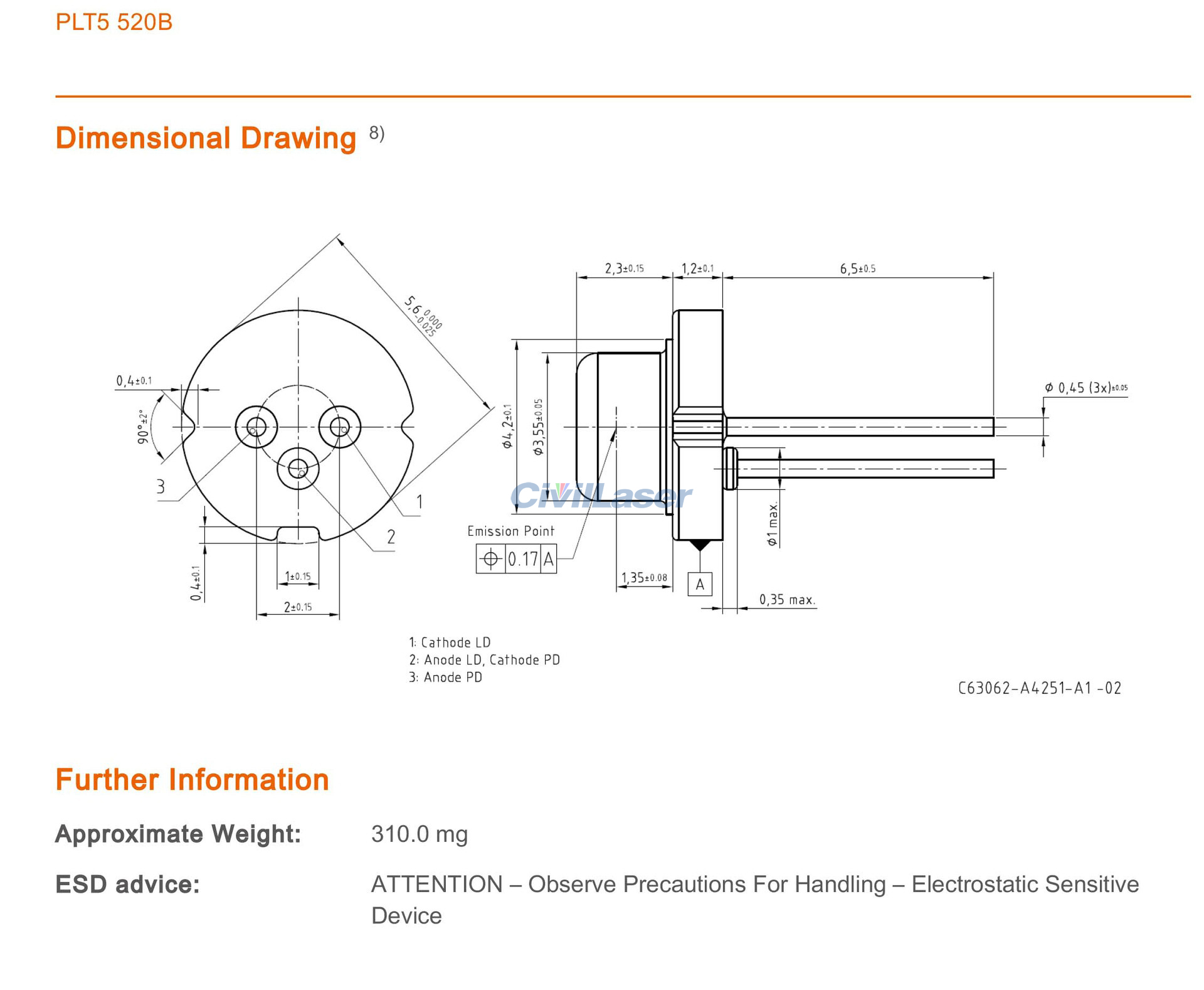

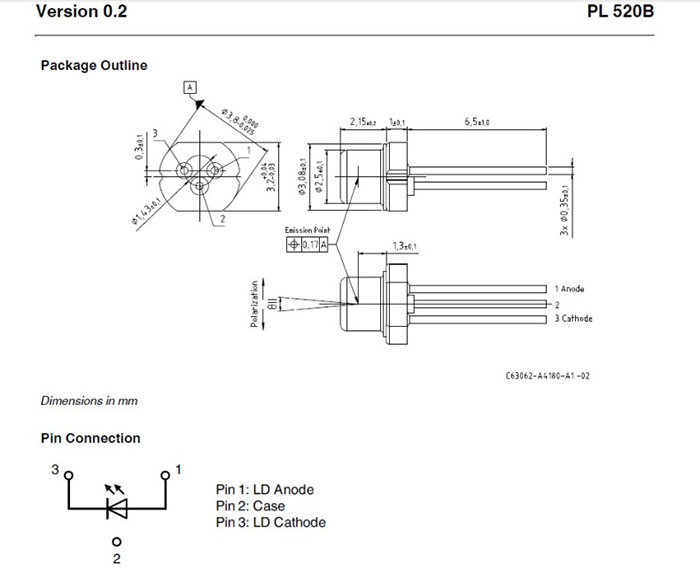

Package: TO56

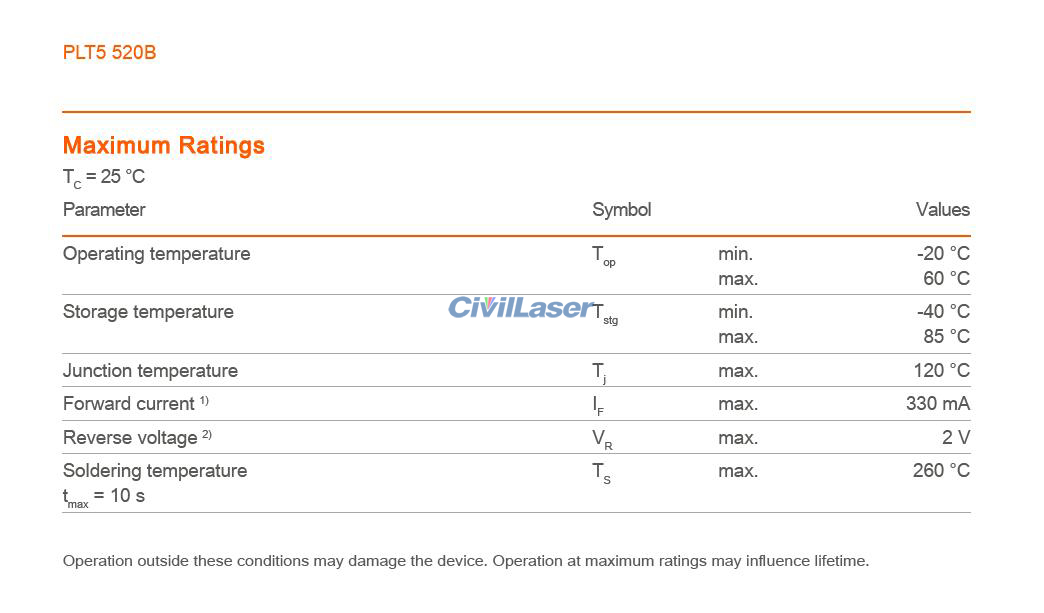

작동 온도: -20~+60℃
보관 온도: -40~+85℃
