Circle laser module 빨간색 perfect circle laser beam adjustable thickness

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


Circle laser module 빨간색 perfect circle laser beam adjustable thickness


[Feature]

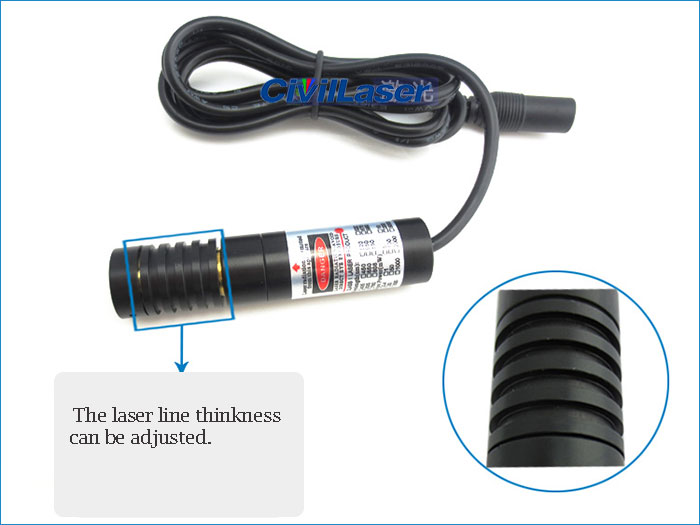

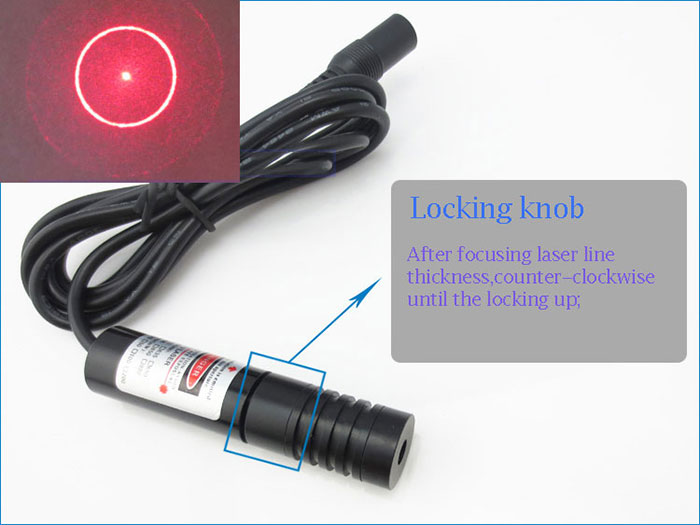

1. Adjustable the laser line thickness.
2. Pattern: Perfect circle with a center dot.


[SPECIFICATIONS]
상품명: 빨간색 circle laser module
output wavelength: 650nm
Output power: 100mw (Accept customization)
Working voltage: DC 2.8V~5.2V
Operation Current: ≤150mA
레이저 모양: Circle with a center dot
Spectral line width: Adjustable

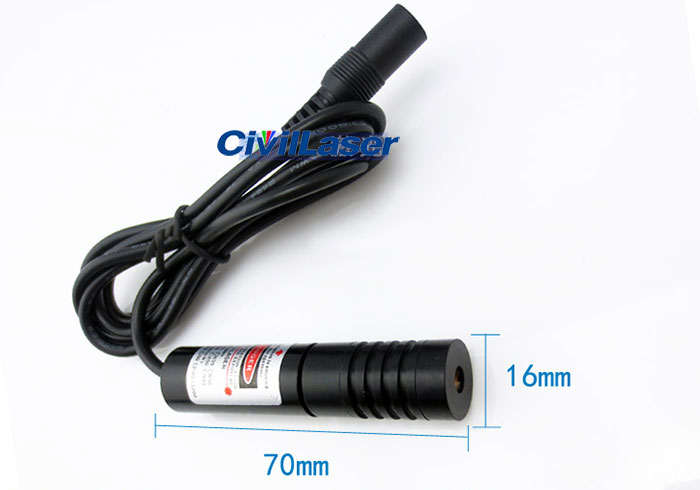

크기: φ 16*70mm (Accept customization)
Working distance: 0~5 meters
Operation mode: Continuous Wave(CW)
Incentive mode: Electropumping Laser
Working medium: 반도체 레이저

Three lenses are optional:
The angle of the lens 2°, the diameter of the circle is 42mm at 1 meters;
The angle of the lens 3°, the diameter of the circle is 60mm at 1 meters;
The angle of the lens 3.5°, the diameter of the circle is 62mm at 1 meters;

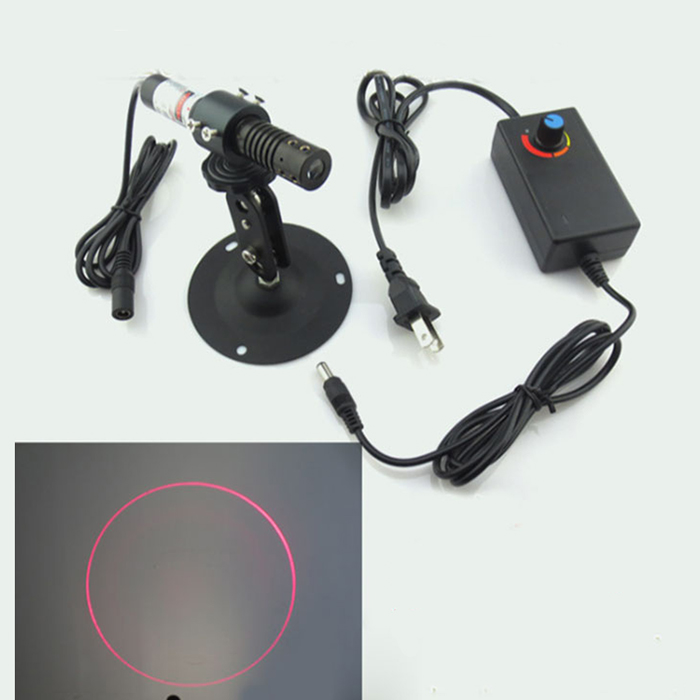

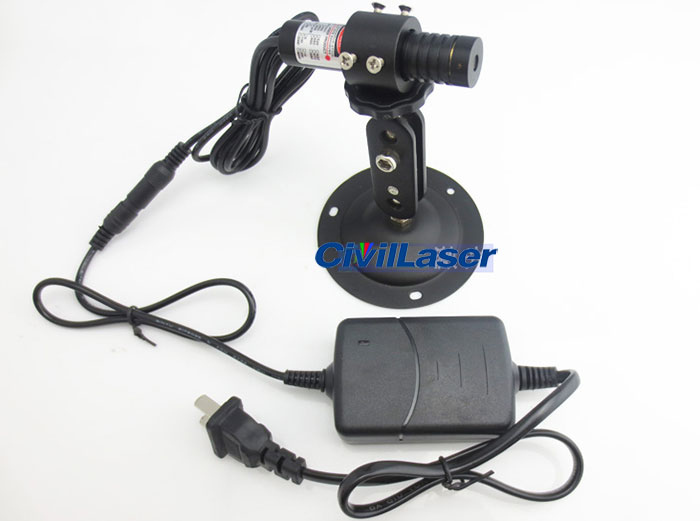

[Package Includes]
1 x 빨간색 circle laser module
1 x Power supply
1 x Laser Holder

Note:This product will have multiple circles at high output power, but it can work normally when the power is low. This is a normal phenomenon.
red circle laser module

red circle laser module

red circle laser module

red circle laser module

red circle laser module

red circle laser module


Additional Images
