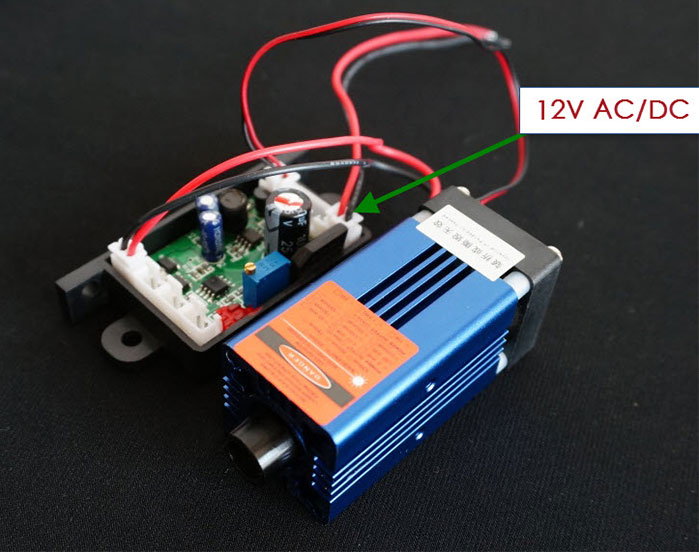

200mW 660nm 빨간색 Laser module with TTL modulation 12V dot/line/crosshair

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:





Add to Cart:


Laser module Introduction:
Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.

Specifications:

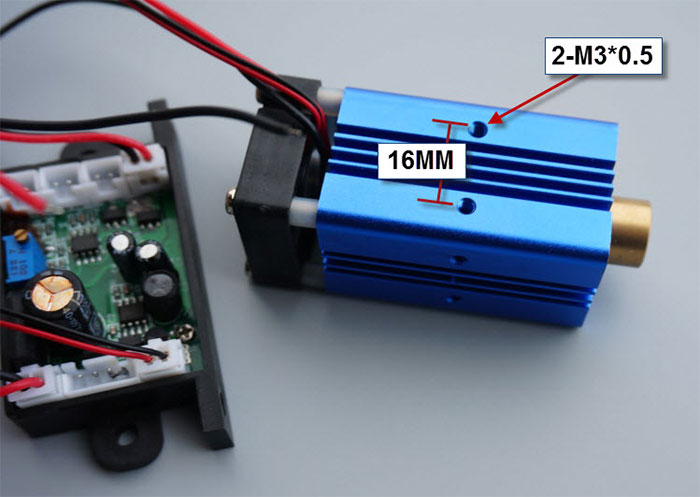

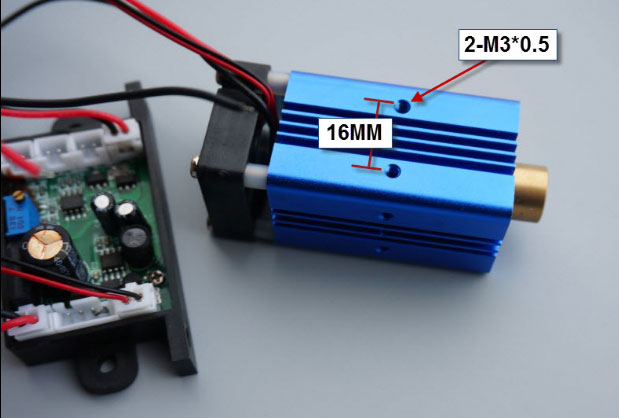

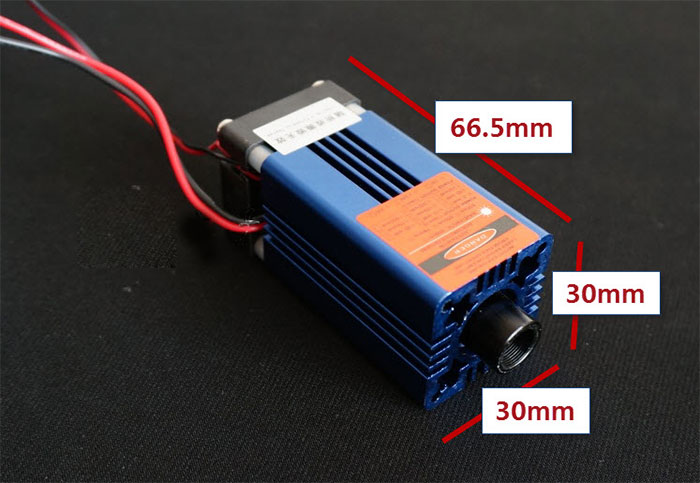

Host size:  L66.5mm* W30mm* H30mm
Circuit size:  L72mm* W35.5mm* H20mm
Output wavelength: 658 NM
Output power: 100mW/200mW (optional)

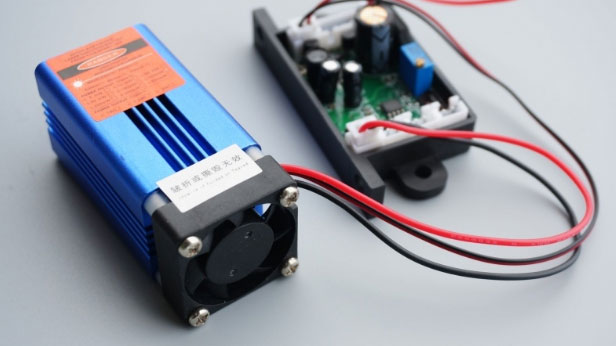

Cooling mode: aluminum cooling

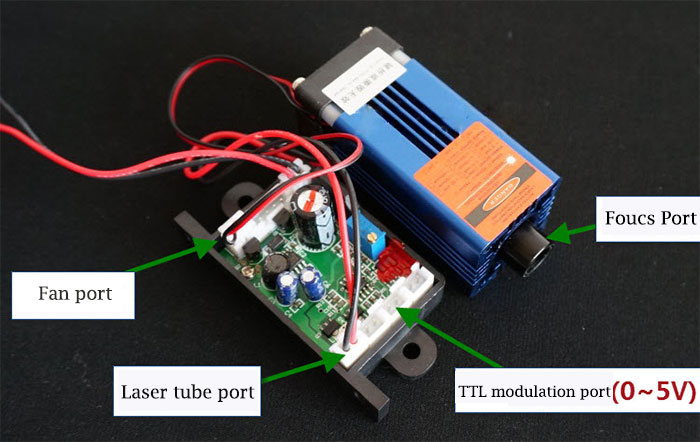

Modulation frequency: Can modulate
Job characteristics: continuous work
Surface treatment: Blue
Shell material: Aluminum
Circuit control: 12V buck constant current
Reverse protection: with automatic recognition of positive and negative poles
Working voltage: DC=12V
Working current: I<300mA
Preheating time: no
Working temperature: -10°C~ 40°C
Storage temperature: -10°C~ 40°C
Structure features: laser tube + lens + heat sink
메모: power supply out of the housing
