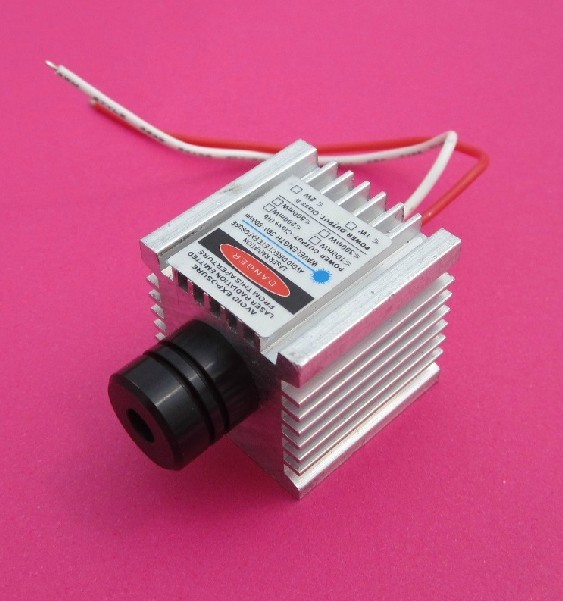

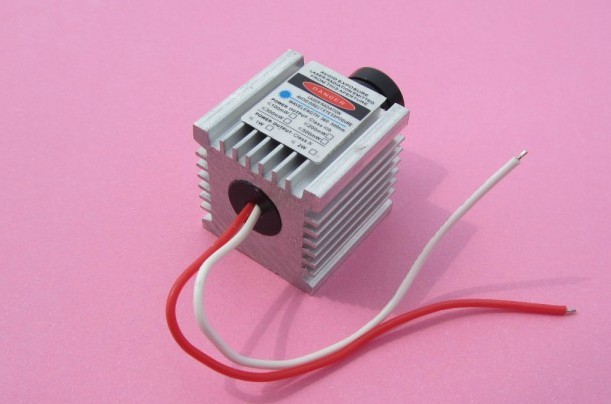

50mW 445nm/450nm Blue 레이저 모듈 Dot(OSRAM laser tube)

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Please Choose:



Add to Cart:


Such products can be widely used in various stage laser light, with TTL modulation, can work for a long time, industrial laser real. Can provide a solution for the customers, designed to meet customer demand for laser module.

SPECIFICATIONS:

Product dimensions: 29mm* 29mm* 29mm
Wire size: length of 100 ± 10mm
Wire materials: high and low temperature resistance silicone wire
Output wavelength: 450 nm
Output power: 50-60mW
Cooling method: Aluminum radiator
Spot size: Focusing
Characteristics: Can work continuously
Surface treatment: Aluminum color
Shell material: Aluminum
Control: constant current circuit
Reverse connection protection: Yes. 빨간색 is positive, white is negative, reverse connection will not work.
Working voltage: DC=3-5V
Working current: I<100mA
Preheating time: no
Working temperature: - 10 ℃ ~ 40 ℃
Storage temperature: -10 ℃ ~ 40 ℃
Structure characteristics: laser tube + lens + radiating shell
메모: built-in constant current circuit, connect to 3-5V power, can use 3.7V lithium battery power supply to test.

Product design features:
1. Good thermal structure design, the best combination of copper and aluminum, smaller volume, better heat dissipation, can work for a long time;
2. Using the built-in 3-5V constant current drive circuit, 3-5V input power, integration design of source and circuit;
3. External focusing design, the rotating head seat can realize the spot size of different distance, meet different working distance requirements;
4. Using the best quality of shaped silicone wire, no need to worry about the line will be burned in a soldering iron.






Additional Images
