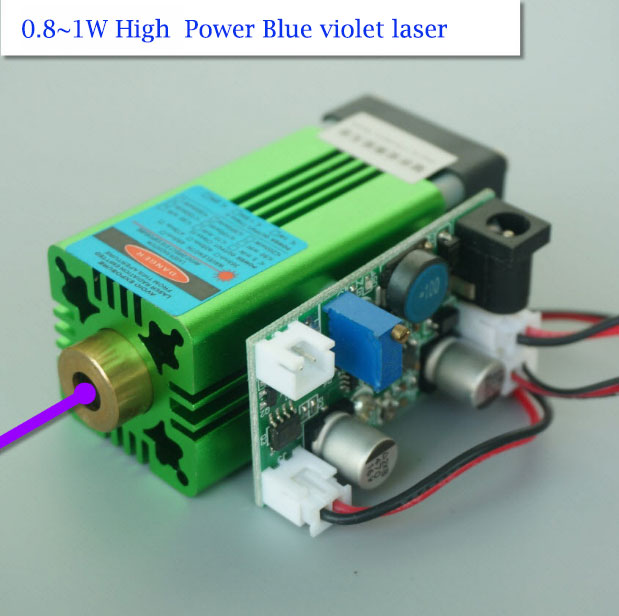

800mW 1W 405nm Blue violet laser / industrial laser module UV curing 3D printing

800mW 1W 405nm Blue violet laser / industrial laser module UV curing 3D printing

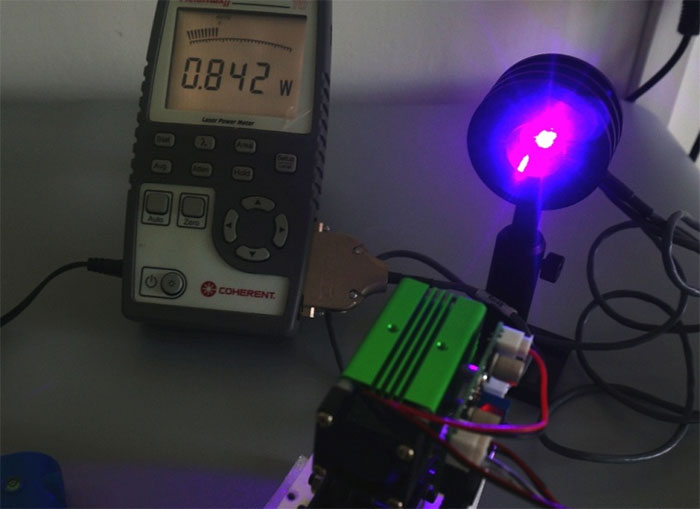

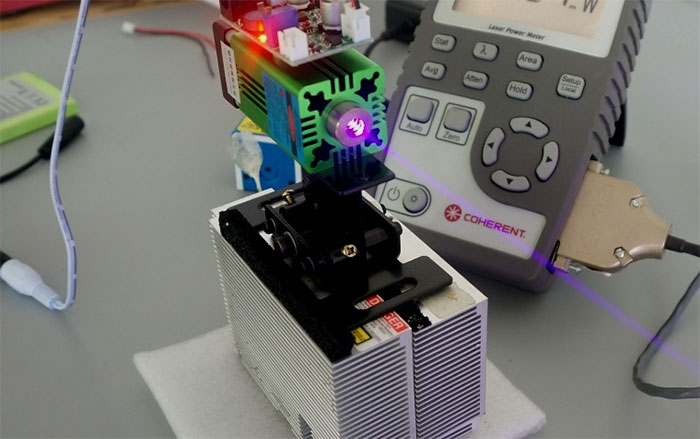

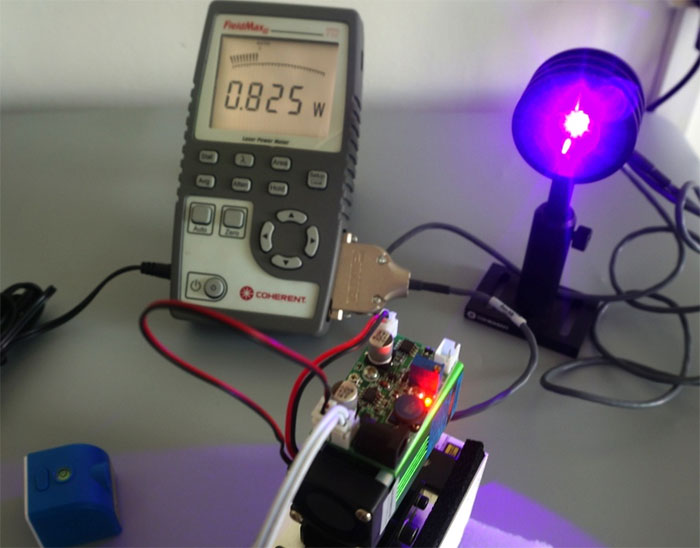

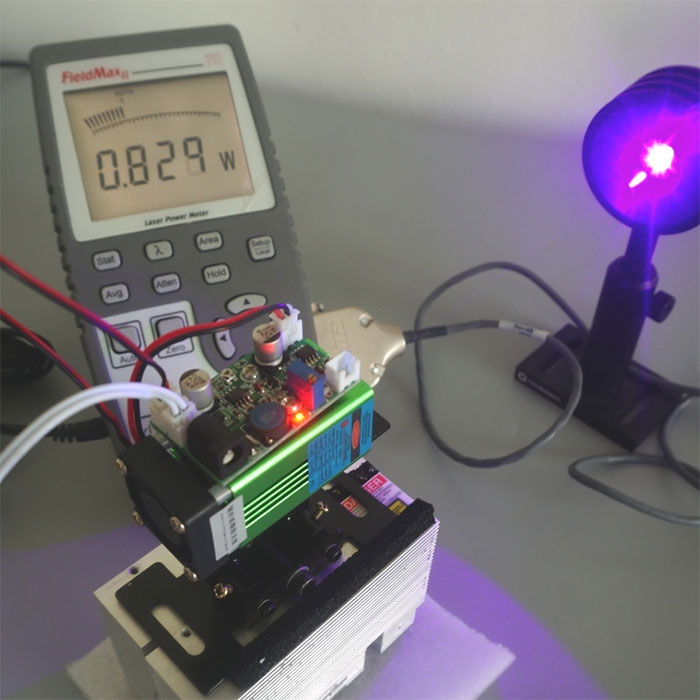

This is the maximum power of the current 405nm laser, the laser can work for a long time, and did the life test.



Laser module parameters:

Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.

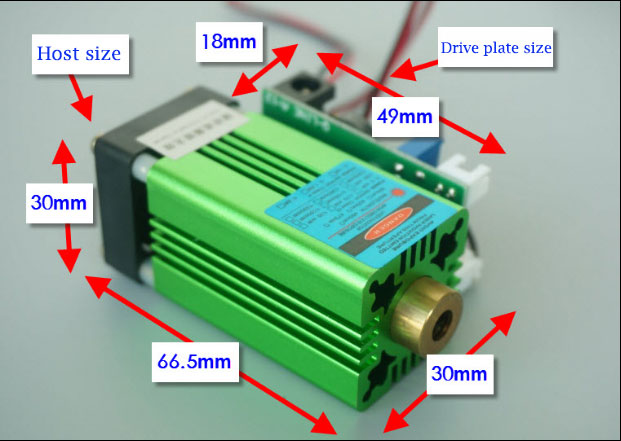

Host size: long 69.5mm* wide 30mm* high 30mm

Output wavelength: 405 nm

Output power: 800mW

Cooling mode: air cooling

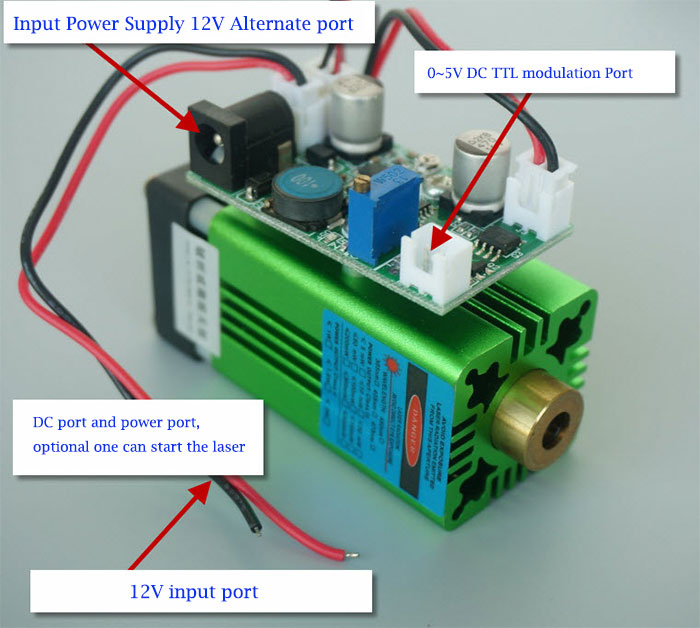

Modulation frequency: TTL 1-20KHz

Modulation voltage: 0-5V

Performance: continuous work

Surface treatment: 녹색

Shell material: Aluminum

Circuit control: constant current

Reverse protection: with automatic recognition of positive and negative poles

Working voltage: DC=12V

Working current: I<760mA

Preheating time: no

Working temperature: -10°C~+40°C

Storage temperature: -10°C~+40°C

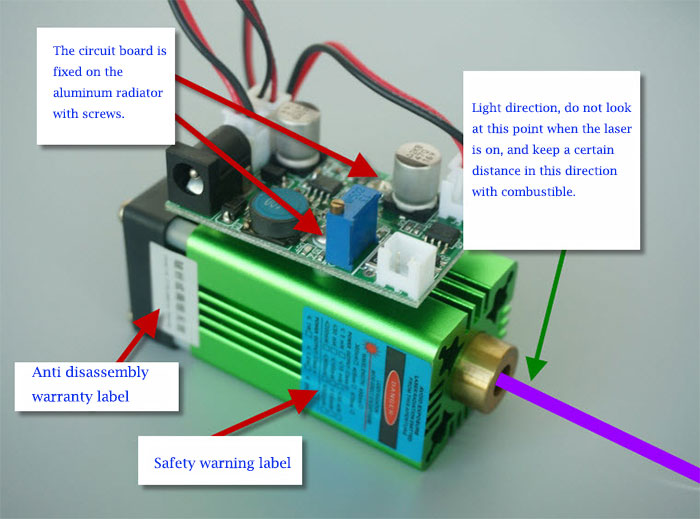

Structure features: laser tube + lens + heat sink

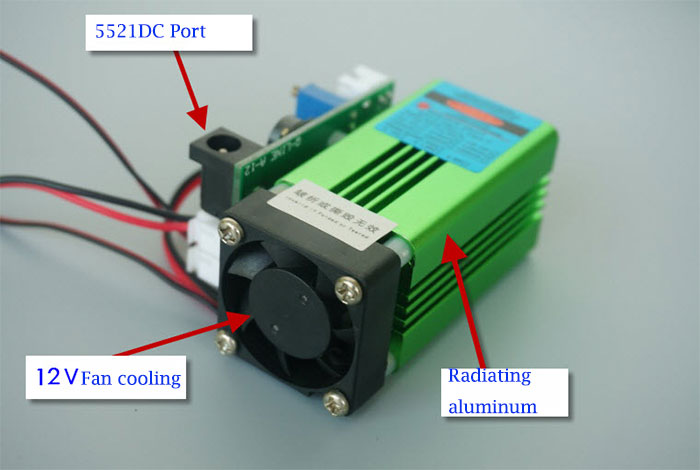

메모: the power supply and the laser head are split type, and the laser head is equipped with fan cooling.

Special note: the input voltage is 12V, the overpressure will cause the circuit and module instant damage, if you have any technical problems, please consult, thank you!
