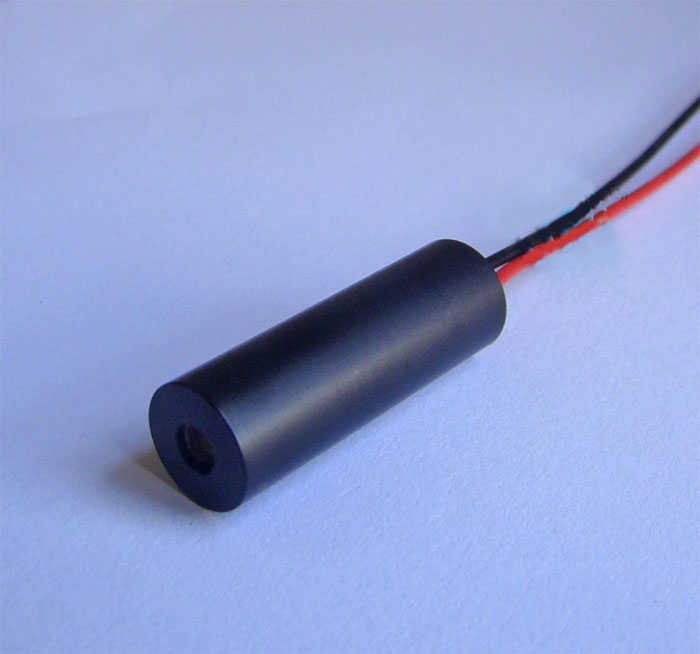

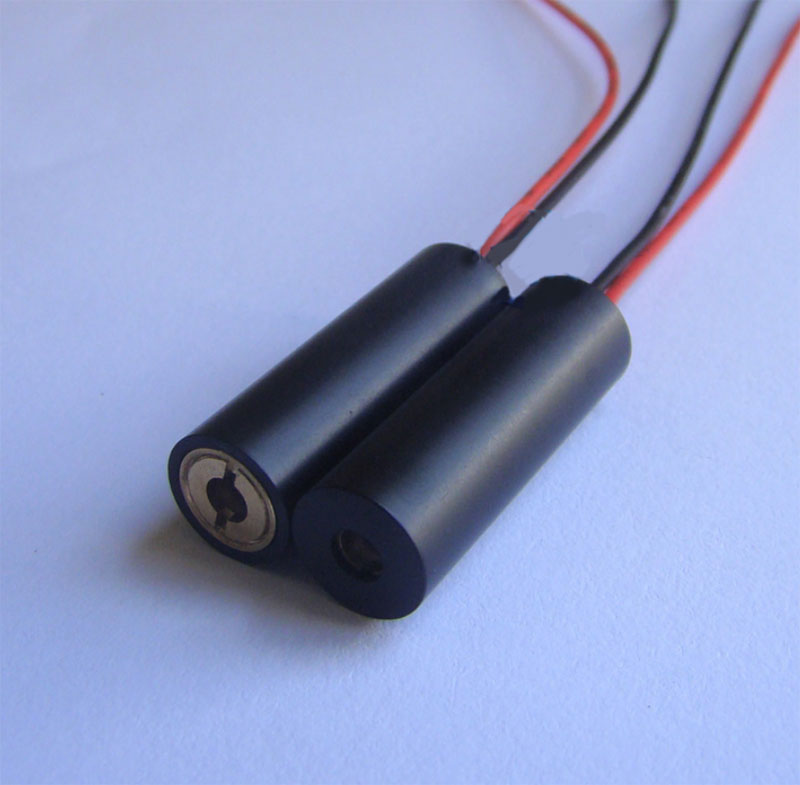

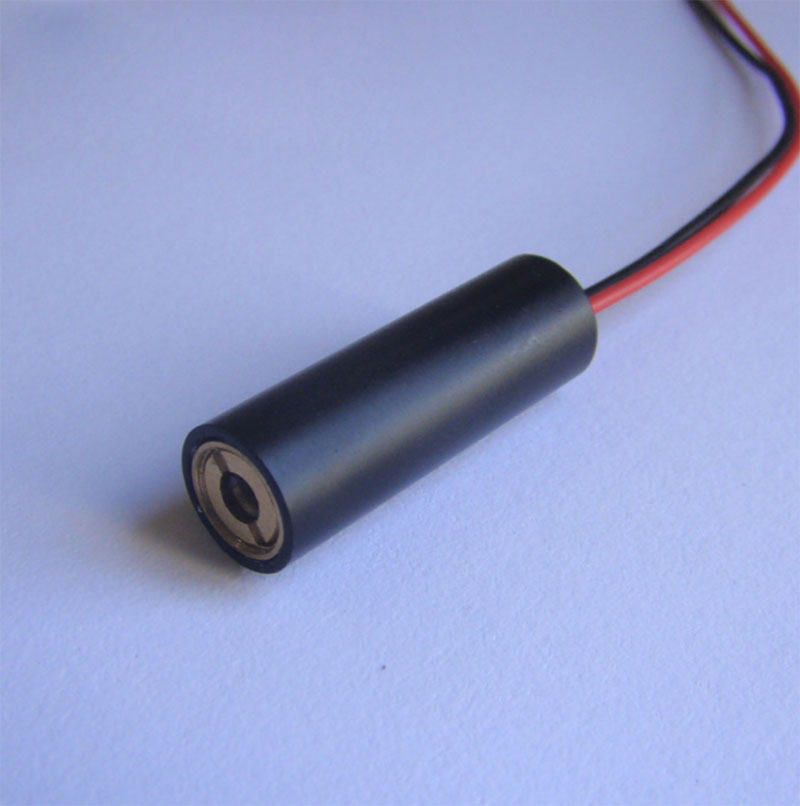

850nm 20mw~50mW Dot Infrared laser module Positioning launch tube
Use of red light modules:
1 can be used for positioning by sight;
2 can be used for laser testing tools;
3 can be used for concentric positioning;
4 can be used for medical equipment positioning;
5 can be used for the production of signal equipment;
SPECIFICATIONS:
이름: 850nm/50mW Dot Infrared laser module
출력 파장: 850 ±5nm
출력 파워: 20mw/30mw/40mw/50mw
레이저 모양: Dot
Range: 500~10000 meters
Surface treatment / color: Black(Oxide black)
Laser type: Invisible laser
Shape/dimension: minimal beam diameter< Φ1.0mm, < Φ25mm at 10m distance(adjustable focus)
Circuit control: APC
크기: Φ10x30mm
작동 전압: DC=3V~5V
Operating current: I<120mA
작동 온도: -10°C~+50°C
보관 온도: -20°C~+90°C
Tail wire: 28# 빨간색 and black line, about 120mm long
보증:12 Months Factory warranty
Package includes:
1* IR laser module
