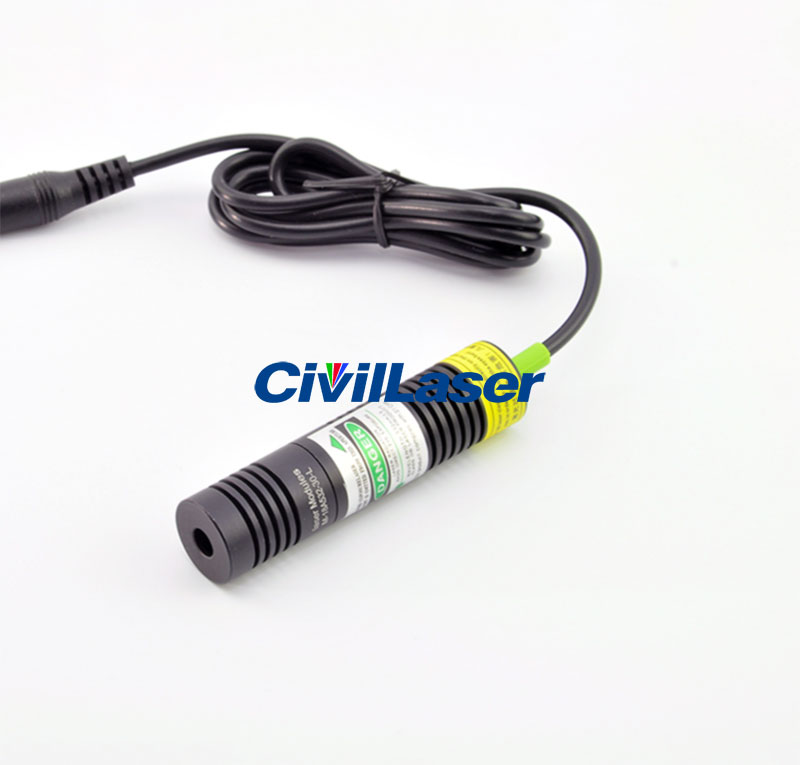

532nm 50mW 녹색 line laser module Laser marking instrument

532nm 50mW 녹색 line laser module Laser marking instrument

SPECIFICATIONS:
이름: 532nm 50mW 녹색 line laser module Laser marking instrument
출력 파장: 532nm
출력 파워: 50mW
레이저 모양: Line
Laser type: Visible laser, 녹색 laser
Outside Color: Black

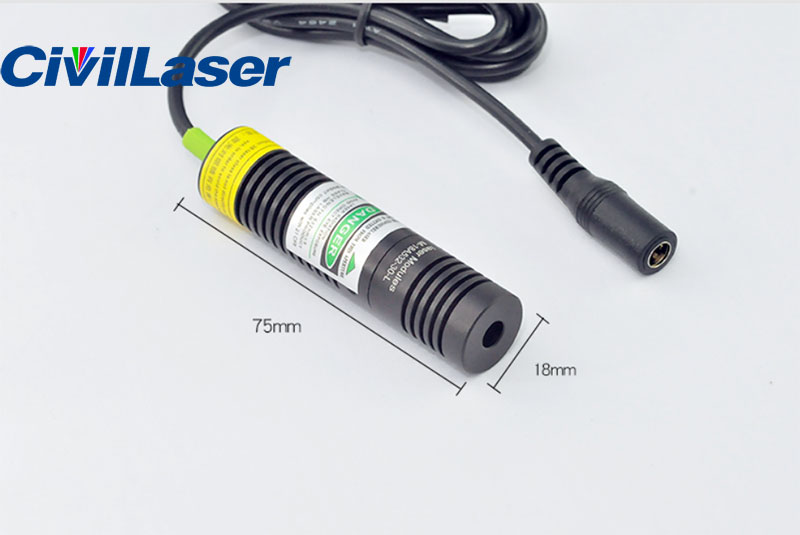

크기: φ18*75mm
Current: ≤260mA
작동 전압: 5V
Core components: Mitsubishi
Best Working distance: 15 meters
작동 온도: -50°C~+50°C
Service life: >8000hours
Weight: laser 0.07kg/holder 0.19kg/power adapter 0.13kg
보증:12 Months Factory warranty

Advantage:
1, The use of imported laser diode, small volume, light and clear, fan angle is large, high linearity;
2, This is a fixed focus laser, non-adjustable laser module, glass lenses, light fine;

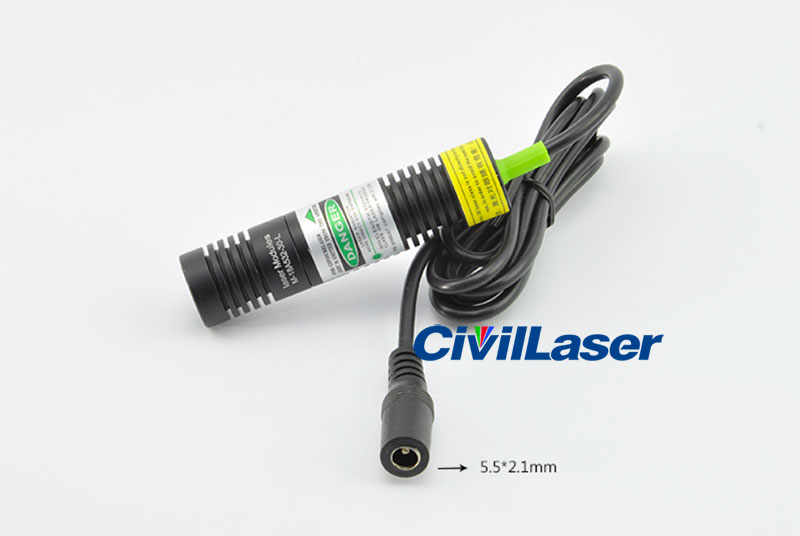

3, 5.5*2.1mm standard DC interface. The inner core is positive;
4, Strong heat dissipation, all metal package, can effectively guarantee the laser's stability and service life. Inside the product is pure copper device, quick cooling for diode;
5, Dustproof, wire products, materials with high thermal silica, AB glue, products can be fully cooling.

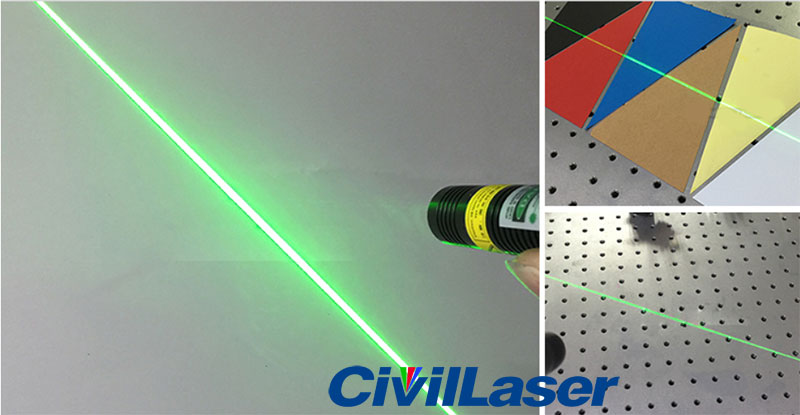

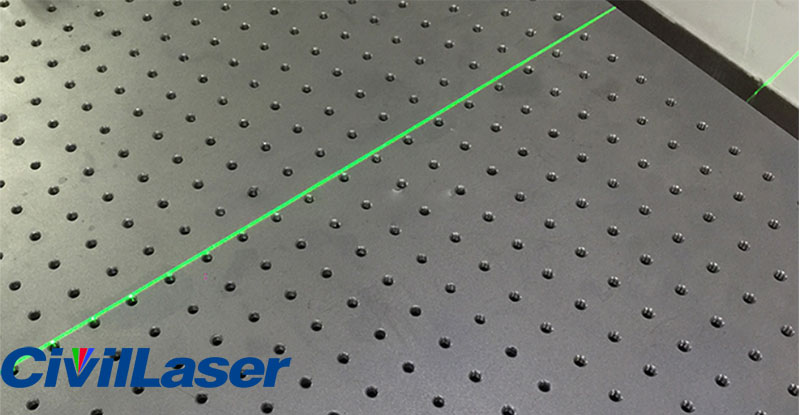

Laser beam width (We set the focal length to 5 meters by default.)
At 50cm distance: laser width is 5~6mm
At 1m distance: laser width is 3~4mm
At 5m distance: laser width is 3mm

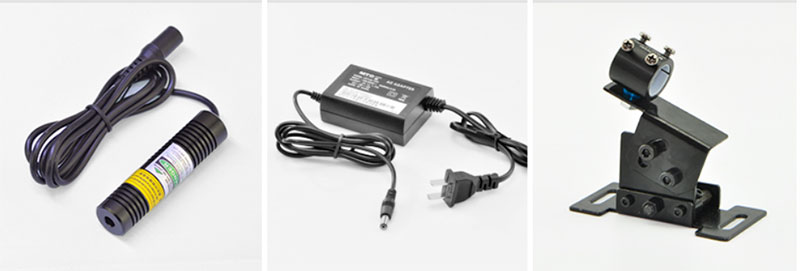

Package includes:
1 x 녹색 laser module
1 x Laser Power supply （choose）

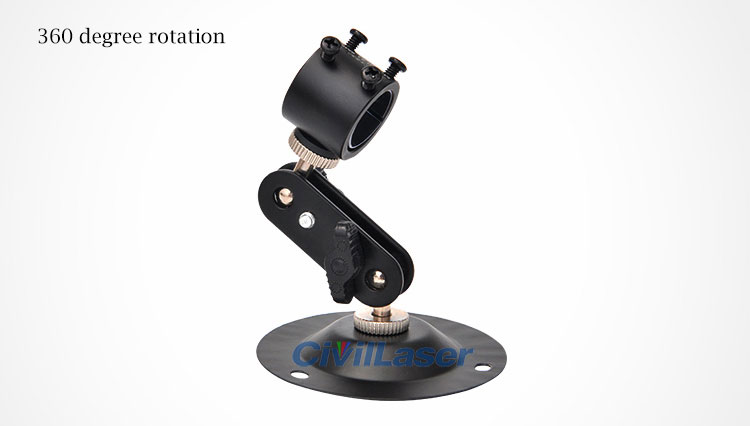

1 x Laser Holder(Two models: Model#01 45 degree, Model#02 360 degree; Randomly send) （choose）
