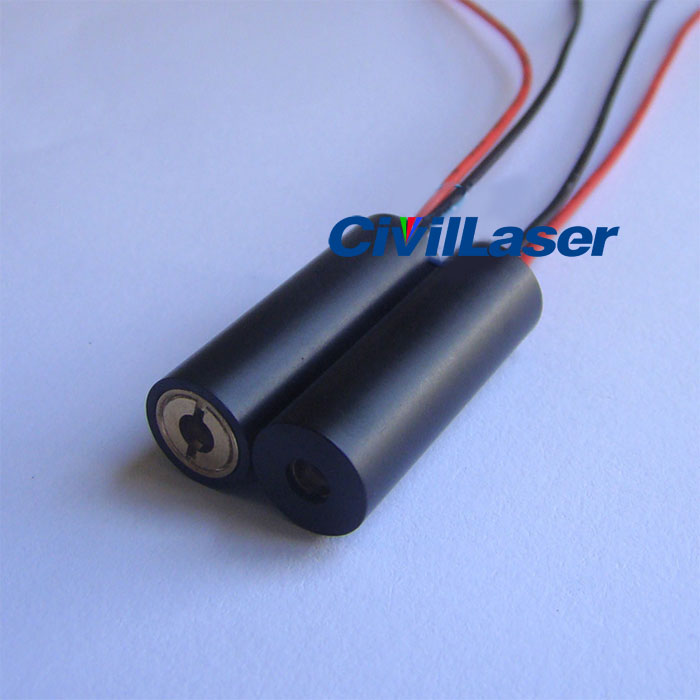

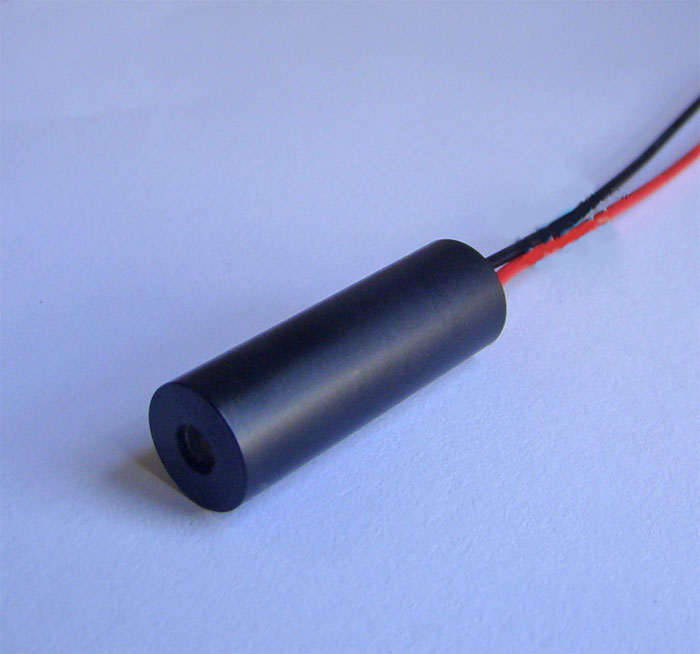

24V 1mW 650nm 빨간색 Dot laser module positioning laser transmitting tube industry

24V 1mW 650nm 빨간색 Dot laser module positioning laser transmitting tube industry

SPECIFICATIONS:
이름:  24V 1mW 650nm 빨간색 Dot laser module
출력 파장: 650nm ±5nm
출력 파워: <1mw(can be customized)
Class level: Class IIIA
레이저 모양: Dot
Range: <100 meters
재료: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: 빨간색 laser

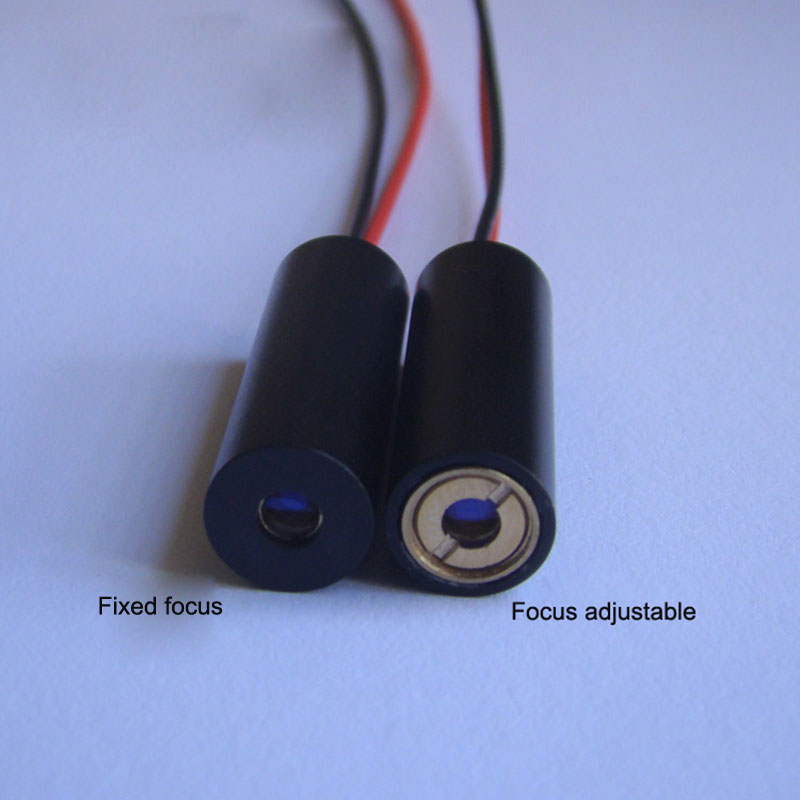

Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC

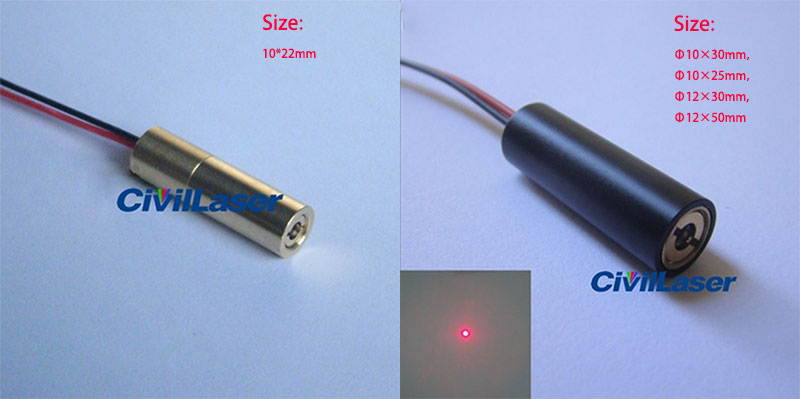

크기: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
작동 전압:  DC=24V
Operating current: I<25mA
작동 온도: -10°C~+50°C
보관 온도: -40°C~+80°C
Service life: continuous output, continuous service life of >5000 hours
Tail wire: 26# 빨간색 and black line, about 150mm long, power supply can be choose
보증:12 Months Factory warranty
