589nm DPSS 레이저 TEM00 모드 high power 높은 공률 안정성 3W~4.8W

$13,800.00

Add to Cart:


589nm DPSS 레이저 TEM00 모드 high power 높은 공률 안정성 3W~4.8W
589nm DPSS laser with TEM00 mode high power stability 3W~4.8W

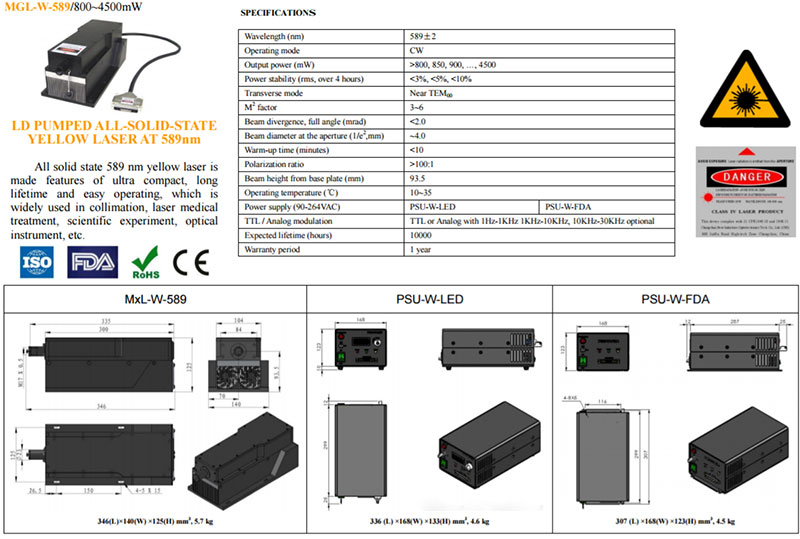

Specification:

Wavelength (nm): 589±2

Output power (mW): >3000,4800mw(Please contact us if you need 4.8W laser before you place the order)

Transverse mode: Near TEM00

작동 모드: CW

Power stability (rms, over 4 hours):<3%

Warm-up time (minutes): <10

M2 factor: 3.0~6.0

Beam divergence, full angle (mrad):<2. 0

Beam diameter at the aperture (mm): ~4. 0

Beam height from base plate (mm): 93.5

Polarization ratio: >100:1

Operating temperature (℃):10~35

Power supply (90-264VAC): PSU-W-LED

Modulation option: TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours):10000

Warranty period: 1 year

Features

  • Output Power up to 4.5 W
  • TEC cooling system
  • 3Lightweight, compact design
  • Superior beam quality
  • Flexible interface concept: analog, RS-232
  • TTL or analog modulation
  • Best reliability and lifetime

Applications

  1. Laser sheet for PIV
  2. Collimation
  3. Laser medical treatment
  4. Scientific experiment
  5. Optical instrument
  6. Confocal Microscopy
  7. Laser Display
  8. Laser Lighting show

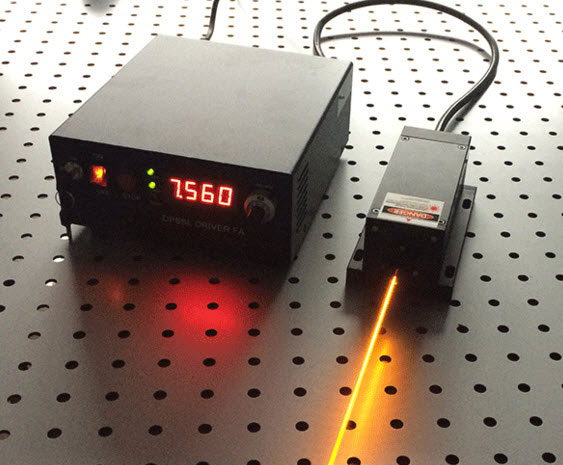

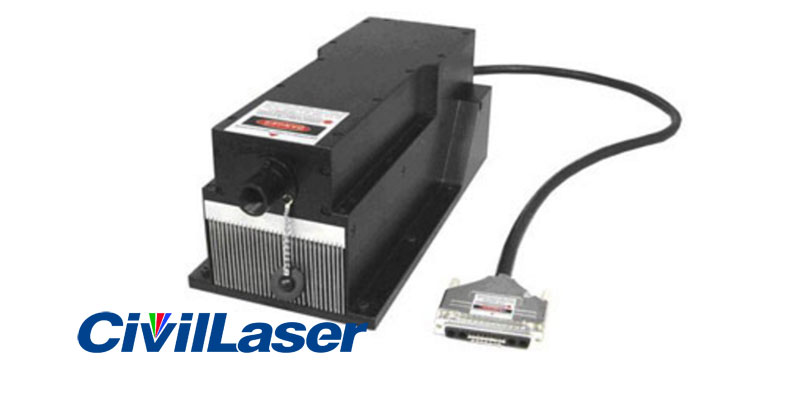

589nm DPSS laser with TEM00 3W~4.8W

589nm DPSS laser with TEM00 3W~4.8W

589nm DPSS laser with TEM00 3W~4.8W

589nm DPSS laser with TEM00 3W~4.8W

589nm DPSS laser with TEM00 3W~4.8W


Additional Images
