355nm 수동적 AOM Q 스위치 UV 레이저 1-3000mW

New Pirce 최신 가격 (Click Here 여 기 를 클릭 하 십시오. )

Add to Cart:


355nm 수동적 AOM Q 스위치 UV 레이저 1-3000mW
355nm  Actively AOM Q-switched UV laser 1-3000mW


Specification
Wavelength:355±1nm
Operating mode:Q-switched: AOM (Acousto-Optic Modulation)
Output power (W):1.0,1.5,2.0,2.5,3.0 @20KHz
Single pulse energy (µJ):1~150uJ@20KHz
Pulse width (ns):15ns@20KHz, 30ns@40KHz
Rep. rate (kHz):10~100, adjustable by external control
Ave power stability (over 4 hours):<3%, <5%, <10%
Transverse mode:TEM00
M2 factor:<1.3
Roundness:>90%
Warm-up time (minutes):<10
Beam divergence, full angle (mrad):<1
Beam diameter at the aperture (mm):<1.0
Beam height from base plate (mm):113
Polarization ratio and Direction:>100:1, Horizontal
Cooled method:Air cooled
Operating temperature (℃):20~35

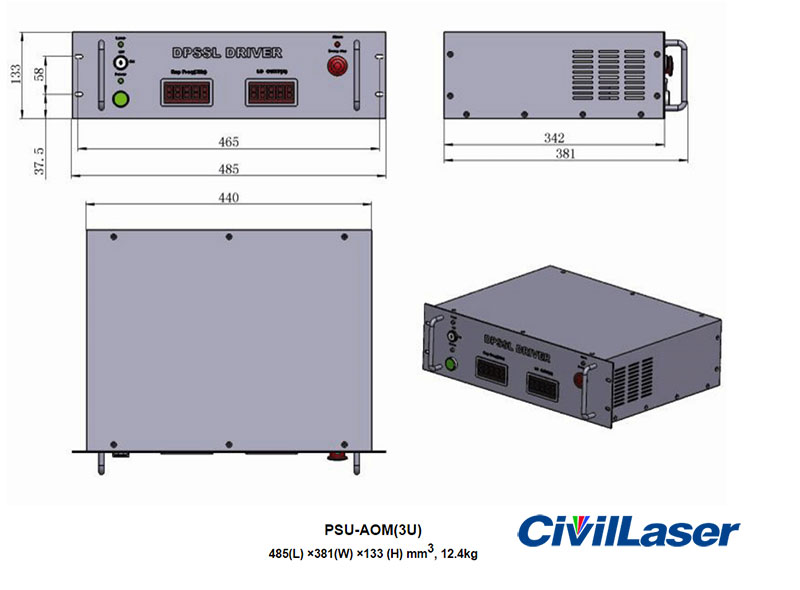

Power supply (220/110VAC):PSU-AOM(3U)
Expected lifetime (hours):5000
Warranty period:1 year


Features

  • Single pulse energy up to 150 uJ
  • With 355 nm laser emitting only
  • TEC cooling system
  • Lightweight, compact design
  • Controllable or Uncontrollable choosed
  • Best reliability and lifetime

Applications:

  1. UV curing
  2. Micro-electronics
  3. CD carving
  4. Laser medical treatment
  5. Scientific experiment


Please contact us about your special requirements and the price before you place the order.

Email addrss: manager@civillaser.com

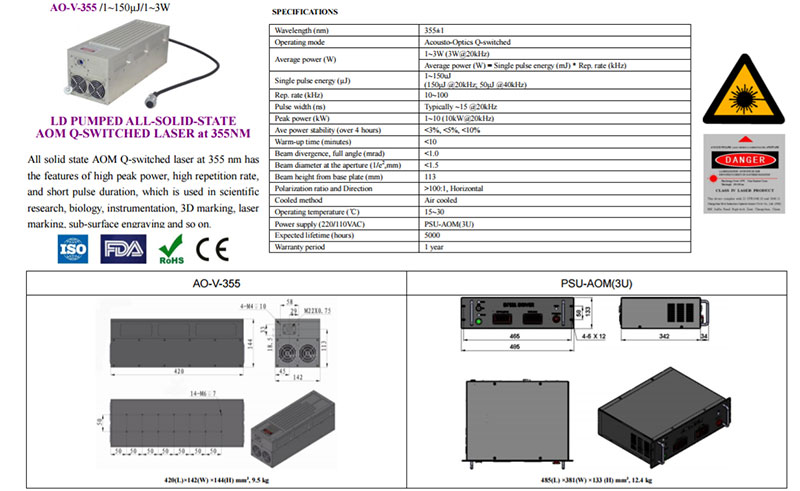

355nm Q-switched UV laser 1-3000mW

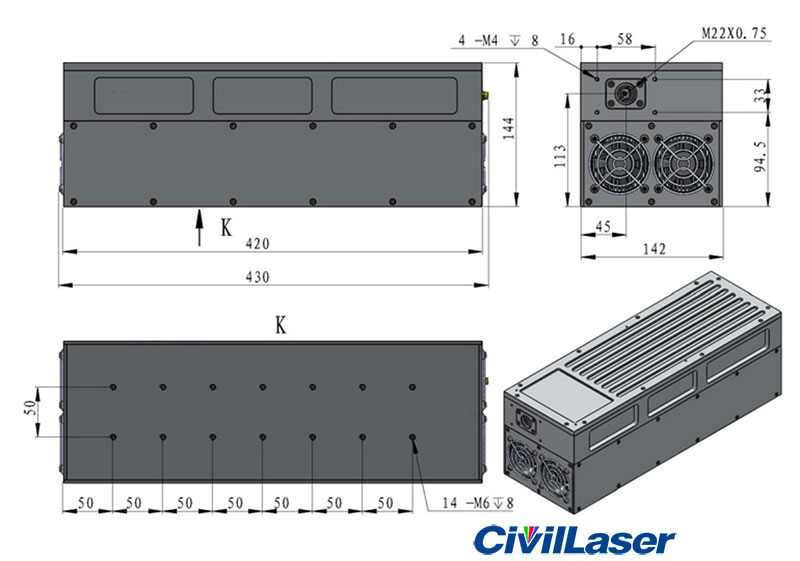

355nm Q-switched UV laser 1-3000mW

355nm Q-switched UV laser 1-3000mW
