515nm 520nm High brightness green dot laser module 4mm Diameter Ultra small size
515nm 30mw 녹색 Dot laser module
Specifications:
Dimensions: 4*7.5mm
출력 파워: 30mw
Working voltage: DC 2.8-5.2 (V)
Working current: <300mA
Laser Range:
Indoors environment during the day can reach to 0-1500 meters;
Outdoors environment during the day can reach to 0-400 meters;
In the dark environment can reach 0-4000 meters.
520nm 80mw 녹색 Dot laser module
Specifications:
Dimensions: 4*7.5mm
출력 파워: 80mw
Working voltage: DC 2.8-5.2 (V)
Working current: <600mA
Laser Range:
Indoors environment during the day can reach to 0-2500 meters;
Outdoors environment during the day can reach to 0-600 meters;
In the dark environment can reach 0-6000 meters.
Advantage:

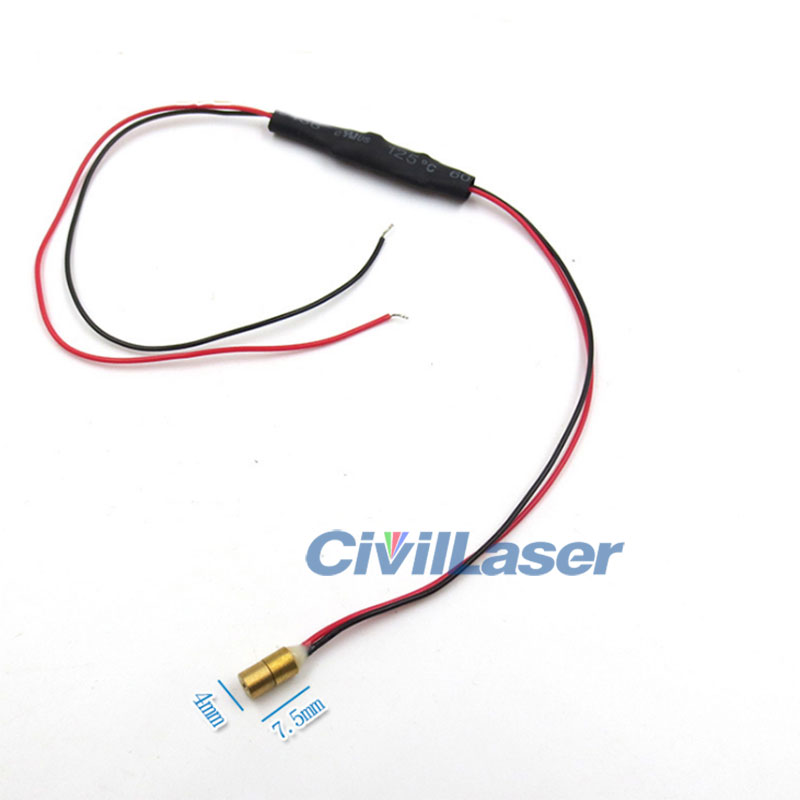

1,ultra small size: diameter 4mm*7.5mm (excluding board length) ultra high brightness indoor and outdoor;
2,515nm/520nm wavelength of pure green laser light is bright and soft and not dazzling;

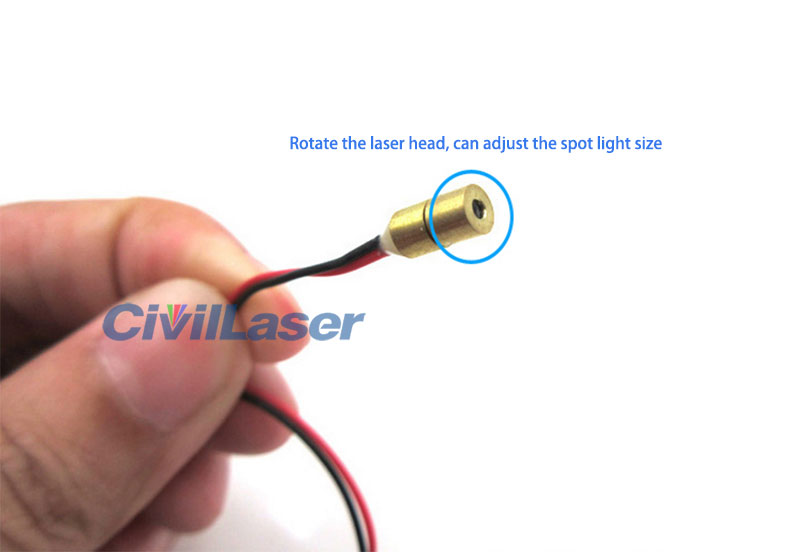

3,Dot size from 1 mm - a few centimeters can be adjusted to meet the different requirements;
4,Germany imported laser diode, light stability is particularly high;

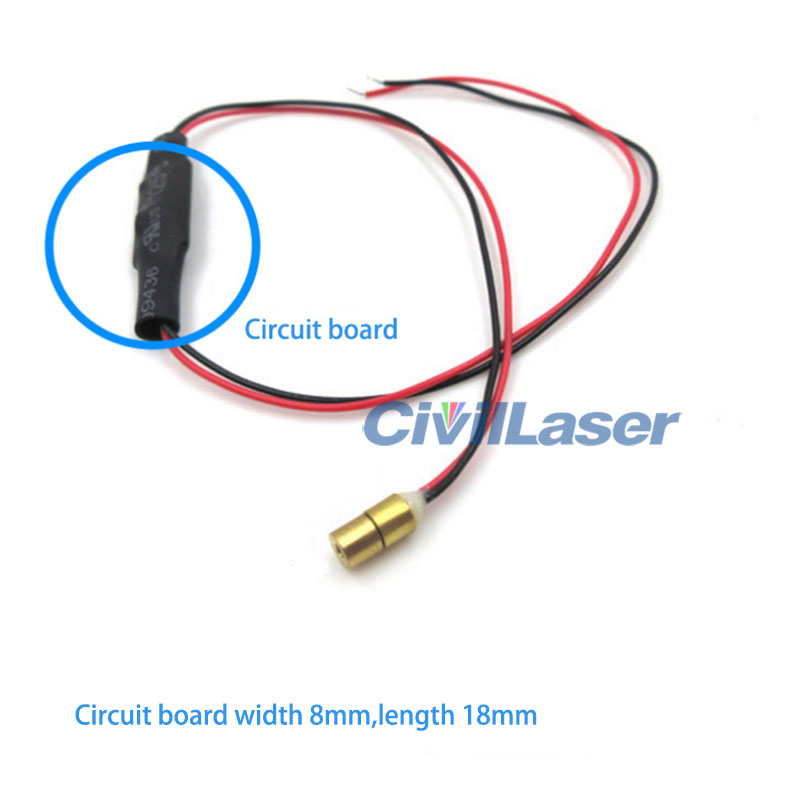

5,Imported IC intelligent drive board can be 2.8-5.2V wide range of power supply (other voltage can be customized);
6,High temperature corrosion resistant wire is suitable for all-weather environment
